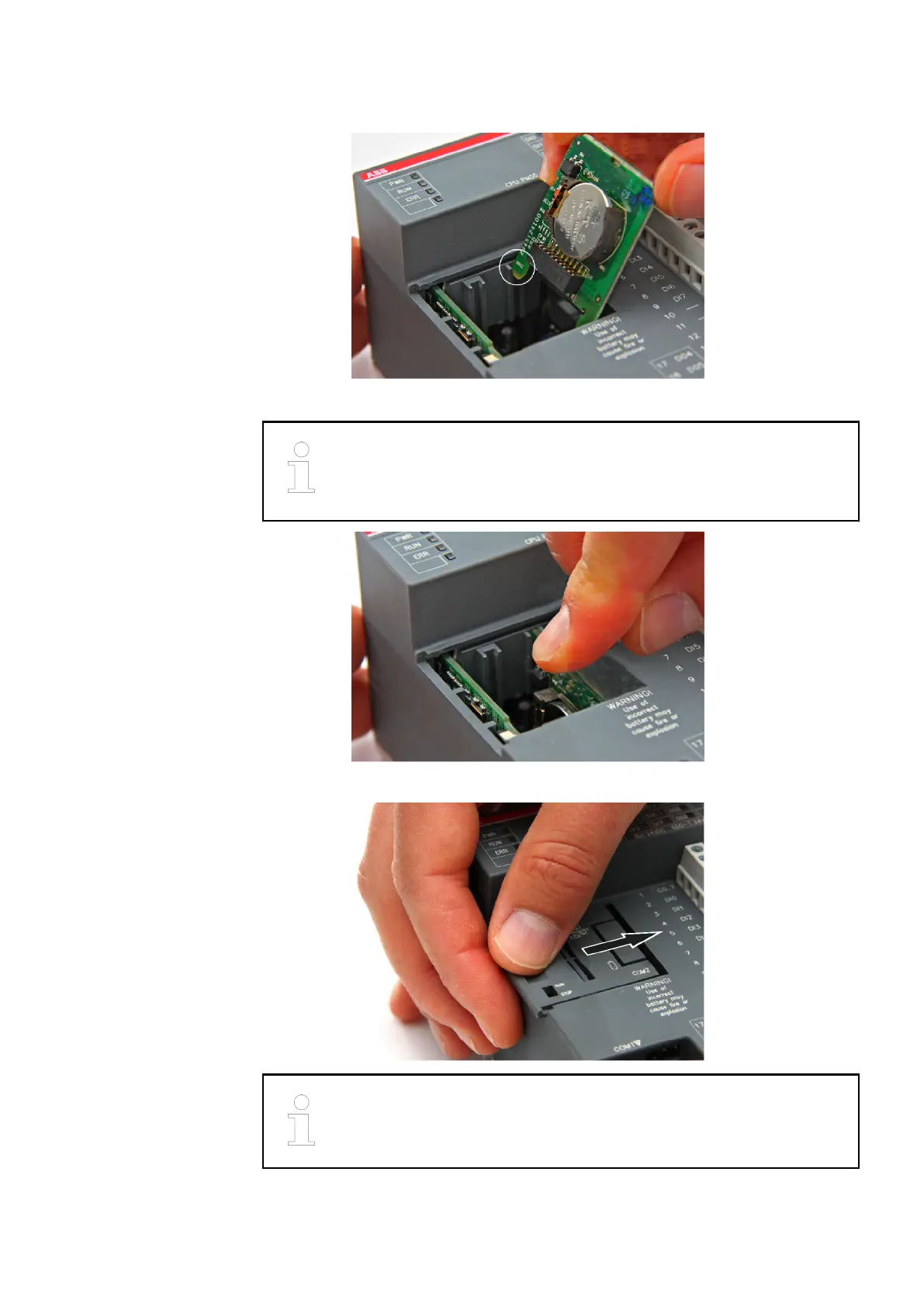

6. Insert option board into the CPU.
ð
Insert the adaptor TA56x-RTC into the slot on the right of the CPU.
Make sure that the 2 noses of the expansion module fit to the holes of
the CPU PCB.
See white circle in figure above.
7. Refit the option cover of the CPU.
ð
Remember to re-insert a SD memory card first if it has been removed
previously.
System Assembly, Construction and Connection
AC500-eCo > Handling of Accessories
2019/04/173ADR010121, 13, en_US1230
