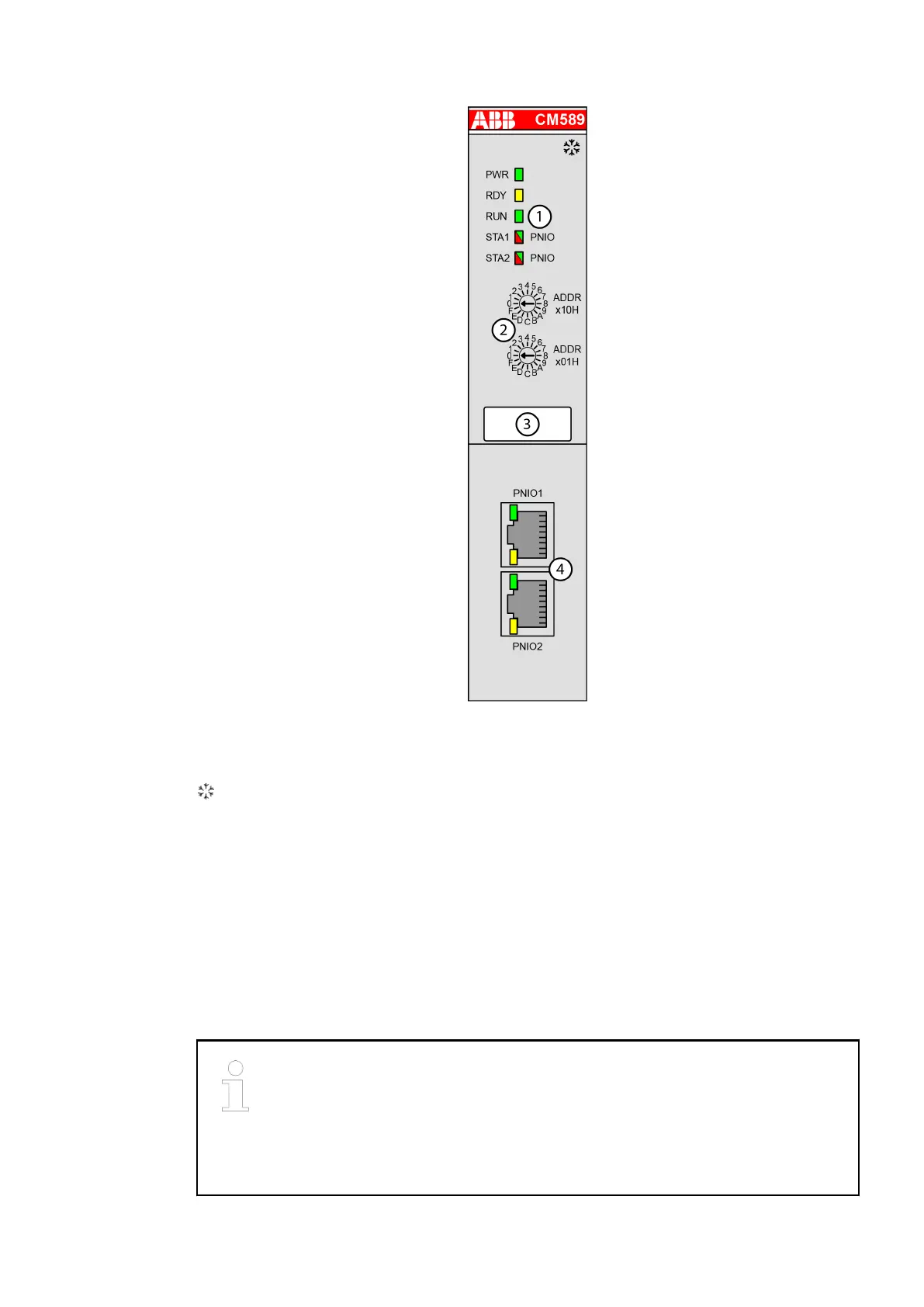

1 5 LEDs for state display
2 2 rotary switches for setting the I/O device identifier
3 Label
4 2 communication interfaces RJ45 (PNIO1 and PNIO2)
Sign for XC version
The communication module is for PROFINET RT communication.
The PROFINET communication module includes an internal Ethernet switch. The connection to
the Ethernet can be established directly to the communication module. An additional switch is
not necessary.
The communication module is configured via the dual-port memory by means of a system con-
figurator. The configuration is saved in a non-volatile way on a flash EPROM.
For use in extreme ambient conditions (e.g. wider temperature and humidity range), a special
XC version of the device is available.
CM589-PNIO(-4)
CM589-PNIO supports one application relation to communicate to one single
PROFINET I/O controller.
CM589-PNIO-4 supports 4 application relations to communicate to up to 4
PROFINET I/O controllers in parallel using PROFINET Shared Device tech-
nology.
