H = Hot swap
Hot swap
Preconditions for hot swapping I/O modules:
– Hot-swappable terminal units have the appendix TU5xx-H.
– I/O modules as of index F0.
– Communication interface modules CI5xx as of index F0.

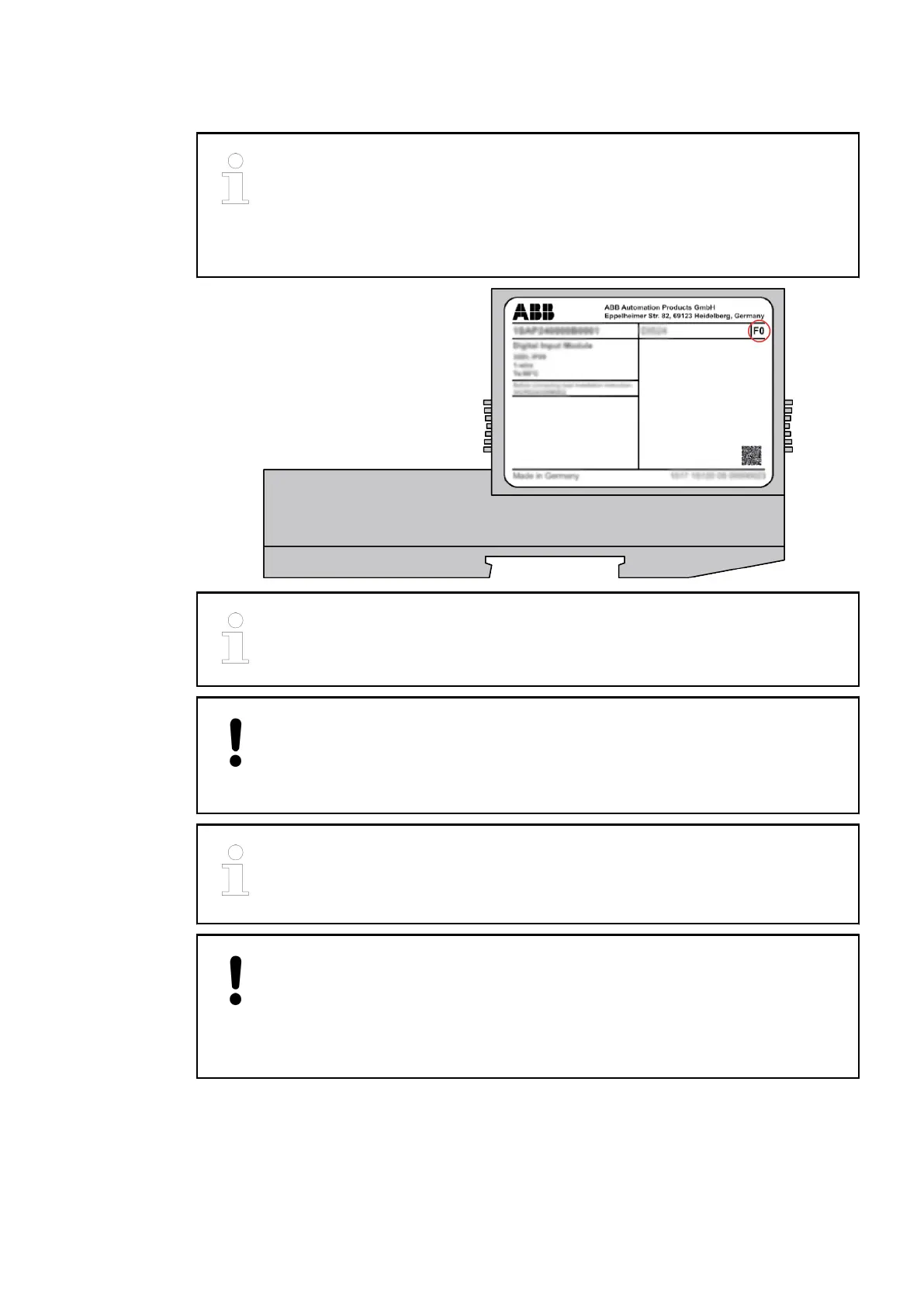

The index of the module is in the right corner of the label.
NOTICE!
Risk of damage to I/O modules!
Modules with index below F0 can be damaged when inserted or removed from
the terminal unit in a powered system.
Hot swapping is only allowed for I/O modules.
Processor modules and communication interface modules must not be removed
or inserted during operation.
NOTICE!
Risk of damage to I/O modules!
Do not perform hot swapping if any I/O module with firmware version lower than
3.0.14 is part of the decentralized I/O station.
For min. required device index see table below.
Hot Swap
Device Specifications
Terminal Units (AC500 Standard) > TU515, TU516, TU516-H and TU542 for I/O Modules
