NTP-A44 Provision Path Protection Nodes

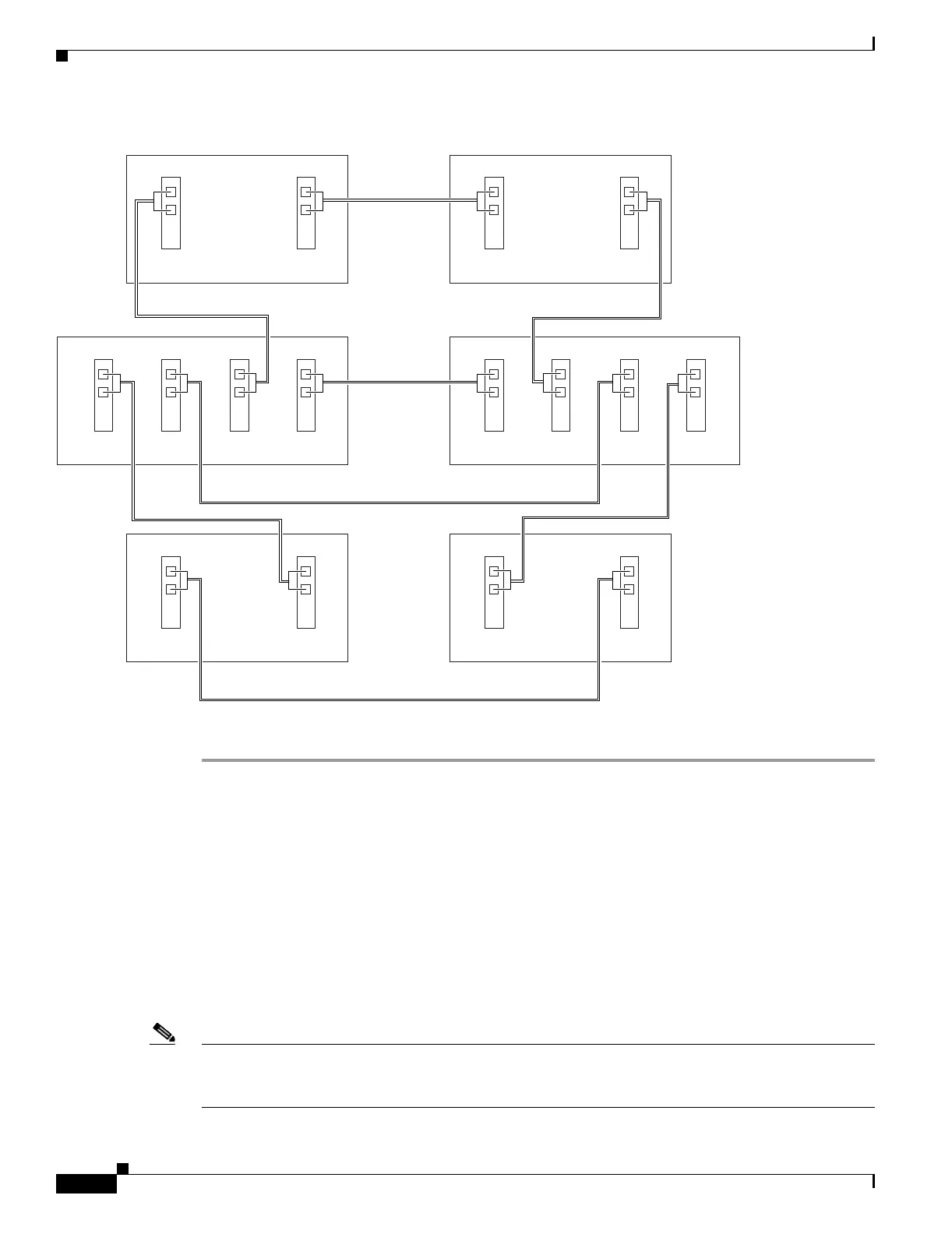

Figure 5-5 Integrated Two-Fiber BLSR DRI Example
Stop. You have completed this procedure.
NTP-A44 Provision Path Protection Nodes
Note Path protection is the default ONS 15454 topology. It is available as soon as you install the path
protection OC-N cards, connect the OC-N fibers, and create the DCC terminations. Unlike the BLSRs,
ONS 15454 path protection configurations do not require explicit setup.
Node 1
West East
West
West
West East
East
East
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Node 3
Slot 2
West
Tx
Rx
Slot 1
West
Tx
Rx
Slot 12
East
Tx
Rx
Node 2
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Node 4
Slot 1
West
Tx
Rx
Slot 2
West
Tx
Rx
115257
Node 5
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Slot 5
East
Tx
Rx
Slot 5
East
Tx
Rx
Slot 12
East
Tx
Rx
Node 6
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Purpose This procedure provisions nodes for inclusion in a path protection.
Tools/Equipment None
Prerequisite Procedures NTP-A35 Verify Node Turn-Up, page 5-2
Required/As Needed As needed
Onsite/Remote Onsite
Security Level Provisioning and higher

Cisco ONS 15454 Series Specifications

General

Supported Interfaces	Ethernet
Management	Cisco Transport Controller (CTC), TL1, SNMP
Power Supply	-48 VDC or AC (depending on power supply module)
Operating Temperature	0 to 50°C (32 to 122°F) - varies by module
Storage Temperature	-40°C to 70°C (-40 to 158°F)
Relative Humidity	5 to 95%, noncondensing
Supported Protocols	SONET/SDH, Ethernet, OTN
Platform Type	Multi-service transport platform
