Chapter 8 Monitor Performance
NTP-A122 Monitor Electrical Performance

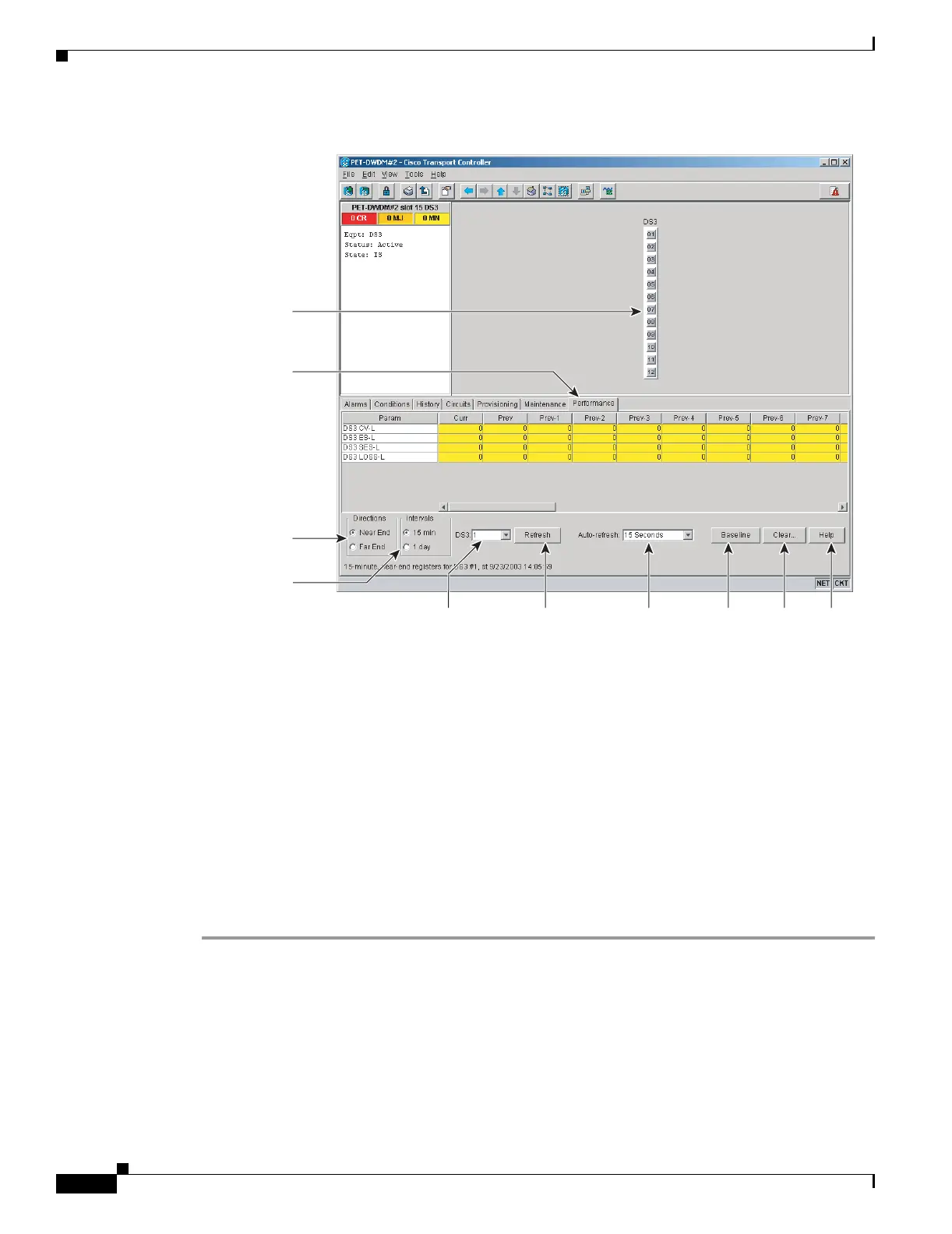

Figure 8-1 Viewing Electrical Card Performance Monitoring Information
Step 5 In the signal type drop-down lists, click one of the following options:
• DSn (card port)
• VTn (VT path)
• STSn (STS within the VT path)
Step 6 Click Refresh.
Step 7 View the PM parameter names that appear in the Param column. The PM parameter values appear in the
Curr (current) and Prev-n (previous) columns. For PM parameter definitions, refer to the “Performance
Monitoring” chapter in the Cisco ONS 15454 Troubleshooting Guide.
To refresh, reset, or clear PM counts, see the “NTP-A253 Change the PM Display” procedure on
page 8-2.
Stop. You have completed this procedure.
96958
Directions
radio buttons
Performance
tab
Card View
Intervals
radio buttons
Clear
button
Help
button
Baseline
button
Auto-refresh
drop-down list
Refresh
button
Signal-type port
drop-down list
