Chapter 18 DLPs A100 to A199
DLP-A190 Install a UBIC-V EIA

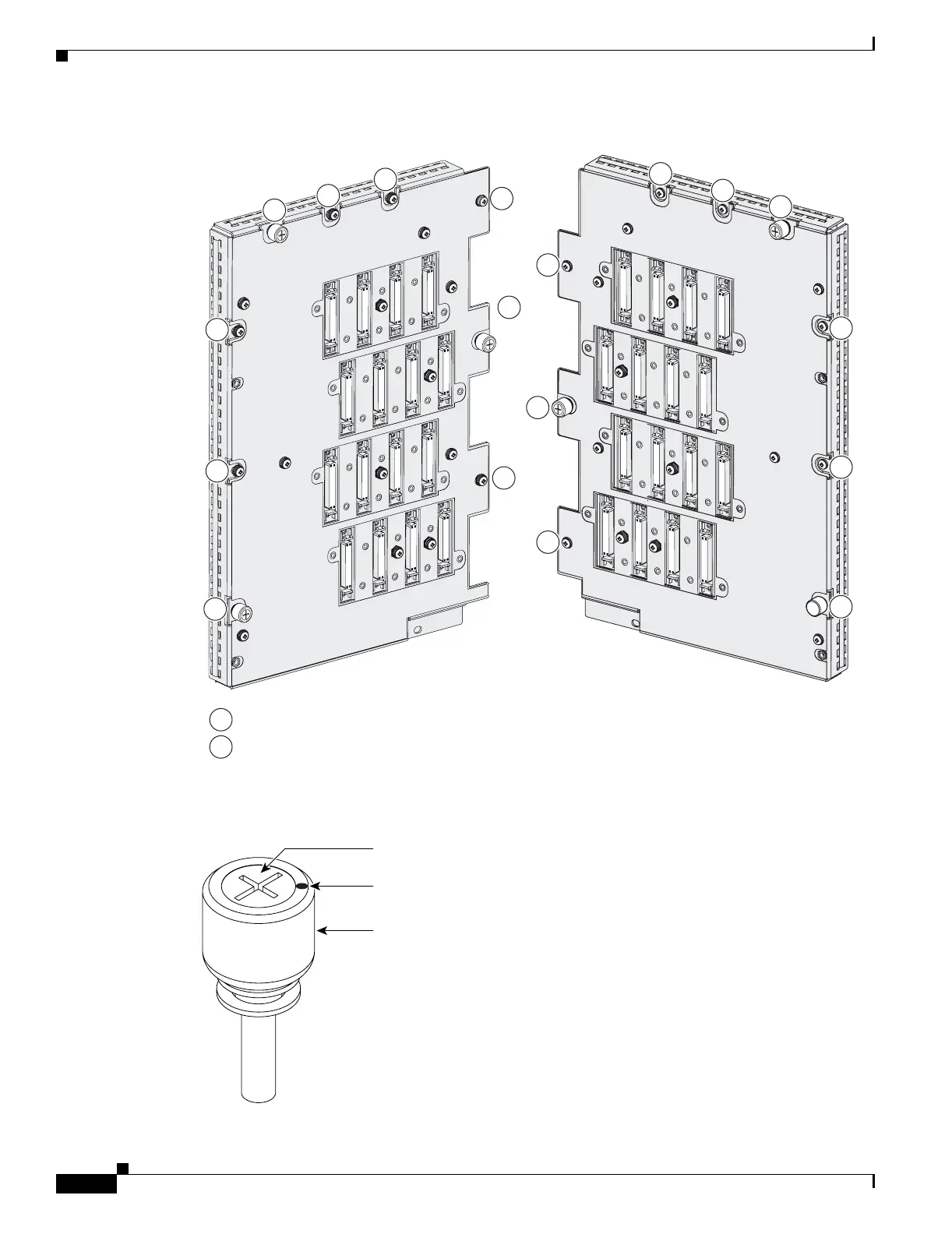

Figure 18-8 UBIC-V EIA Screw Locations
Figure 18-9 UBIC-V EIA Jack Screw
Jack screws (3)
115140
1
1
Perimeter screws, 6-32 x 0.375-inch Phillips head (6)
2
1
1
1
2
2
2
2
2
2
2
2
1
1
2
2
2
2
115260
Thumbscrew
Inner screw
Rotation indicator

Cisco ONS 15454 Series Specifications

General

Supported Interfaces	Ethernet
Management	Cisco Transport Controller (CTC), TL1, SNMP
Power Supply	-48 VDC or AC (depending on power supply module)
Operating Temperature	0 to 50°C (32 to 122°F) - varies by module
Storage Temperature	-40°C to 70°C (-40 to 158°F)
Relative Humidity	5 to 95%, noncondensing
Supported Protocols	SONET/SDH, Ethernet, OTN
Platform Type	Multi-service transport platform
