Cisco ONS 15454 Procedure Guide, R5.0
March 2005
Chapter 20 DLPs A300 to A399
DLP-A399 Install a UBIC-H EIA

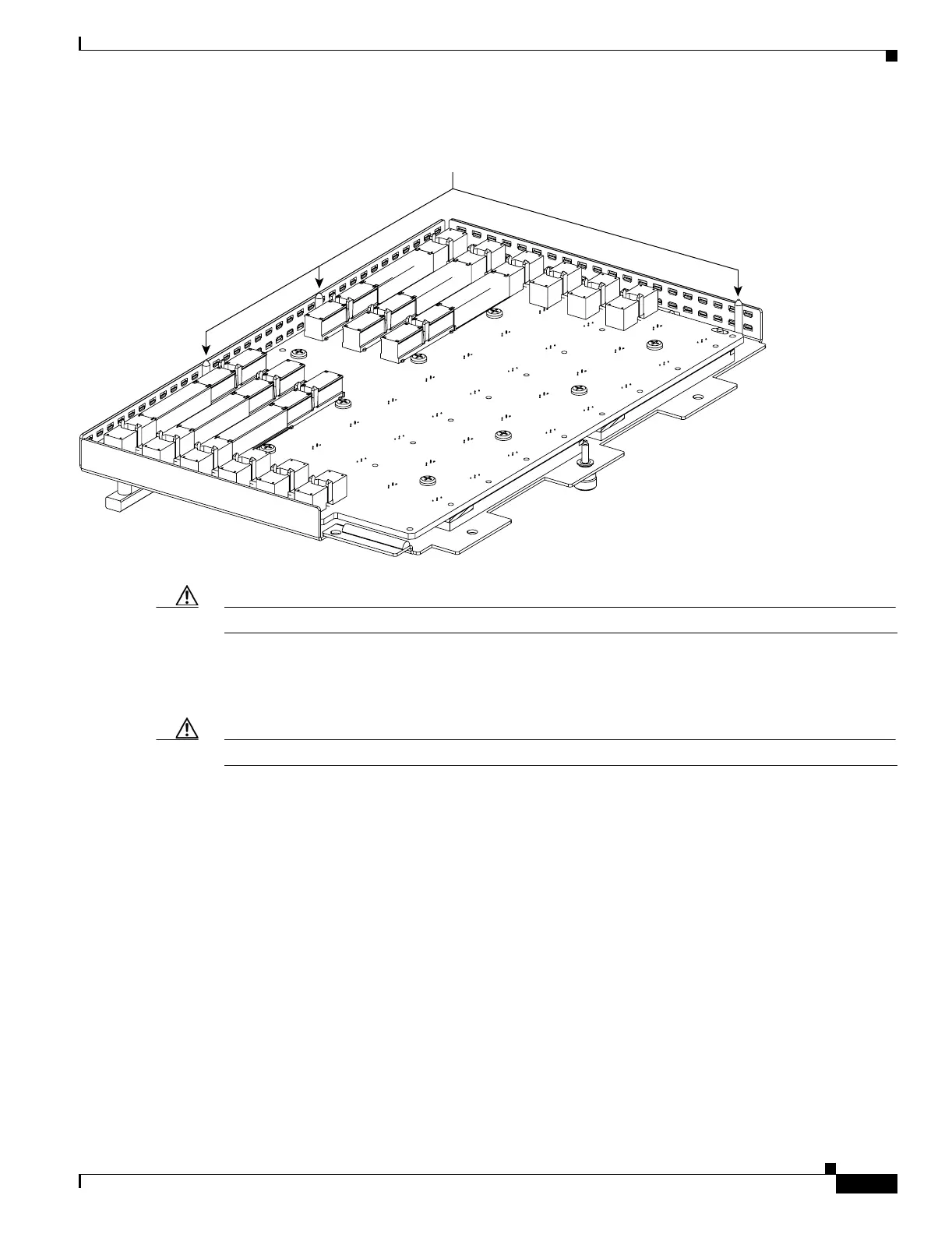

Figure 20-24 UBIC-H Alignment Pins
Caution Do not force the UBIC-H EIA onto the shelf if you feel strong resistance.
Step 7 Locate the three jack screws on the UBIC-H (Figure 20-25). Starting with any jack screw, tighten the
thumbscrew a few turns and move to the next one, turning each thumb screw a few turns at a time until
all three screws are hand tight (Figure 20-26).
Caution Tightening the jack screws unevenly could cause damage to the UBIC-H connectors.
UBIC alignment pins
120367

Cisco ONS 15454 Series Specifications

General

Supported Interfaces	Ethernet
Management	Cisco Transport Controller (CTC), TL1, SNMP
Power Supply	-48 VDC or AC (depending on power supply module)
Operating Temperature	0 to 50°C (32 to 122°F) - varies by module
Storage Temperature	-40°C to 70°C (-40 to 158°F)
Relative Humidity	5 to 95%, noncondensing
Supported Protocols	SONET/SDH, Ethernet, OTN
Platform Type	Multi-service transport platform
