20-89
Cisco ONS 15454 Procedure Guide, R5.0
March 2005
Chapter 20 DLPs A300 to A399
DLP-A392 View CE-Series Ether Ports and POS Ports Utilization PM Parameters

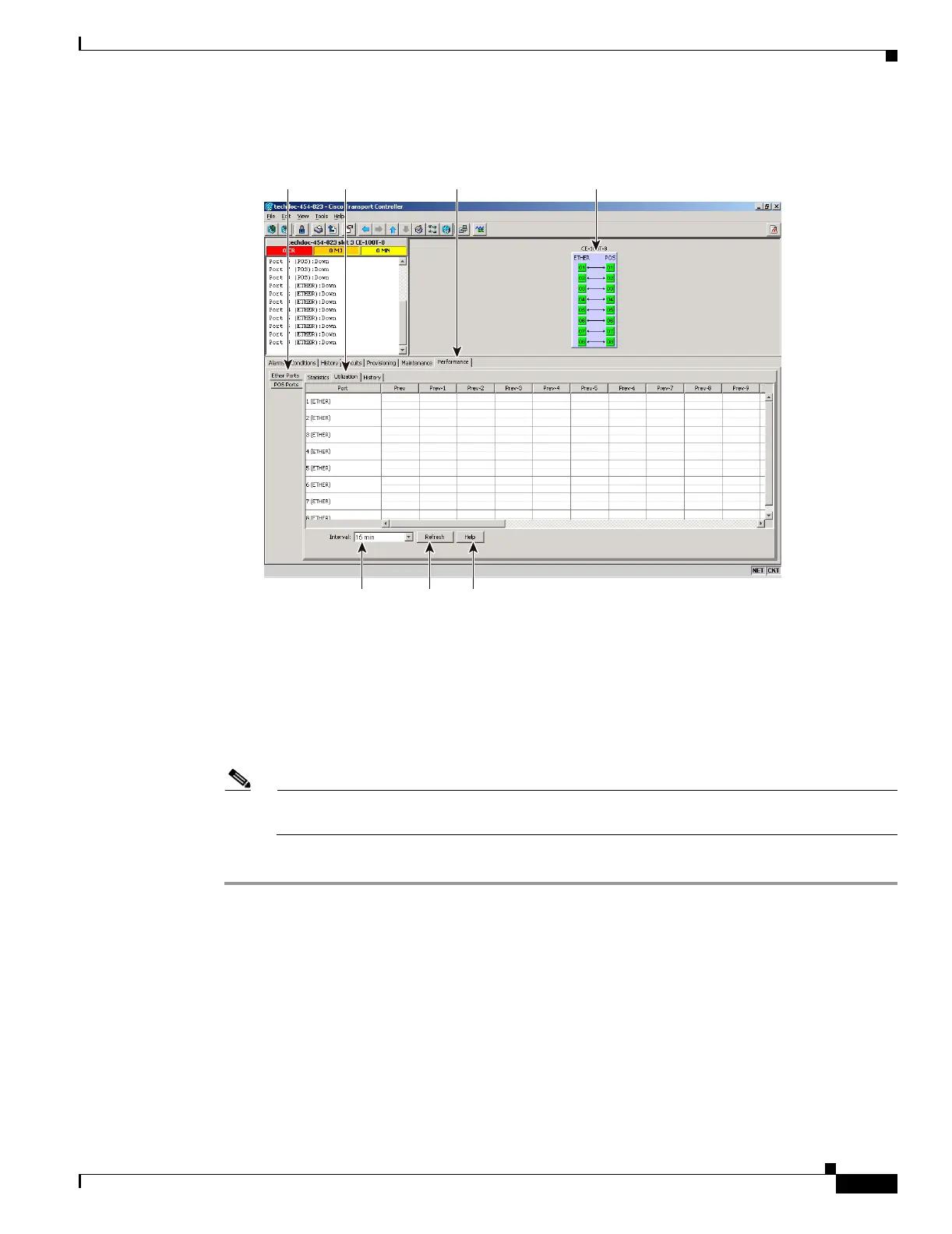

Figure 20-19 Ether Ports Utilization on the CE-Series Card View Performance Window
Step 3 Click Refresh. Performance monitoring statistics for each port on the card appear.
Step 4 View the Port # column to find the port you want to monitor.
Step 5 The Tx and Rx bandwidth utilization values for the previous time intervals appear in the Prev-n columns.
For PM parameter definitions, refer to the “Performance Monitoring” chapter in the Cisco ONS 15454
Troubleshooting Guide.
Note To refresh, reset, or clear PM counts, see the “NTP-A253 Change the PM Display” procedure
on page 8-2.
Step 6 Return to your originating procedure (NTP).
124472
Performance
tab
Utilization
tab
Ether ports
tab
Card
view
Interval
drop-down list
Refresh
button
Help
button
