Chapter 17 DLPs A1 to A99
DLP-A14 Install the AMP Champ EIA
Step 1 Align the AMP Champ panel with the backplane and insert and tighten the nine perimeter screws
(P/N 48-0358) at 8 to 10 lb (3.6 to 4.5 kg).
Step 2 Align an AMP Champ card with the backplane connector and push until it fits snugly. Repeat until you
have installed all six AMP Champ cards.
Step 3 To secure each AMP Champ card to the cover panel, insert and tighten a screw (P/N 48-0003) at the top
of each card at 8 to 10 lb (3.6 to 4.5 kg).
Step 4 Place the AMP Champ fastening plate along the bottom of the cover panel, and hand-tighten the two
thumbscrews.

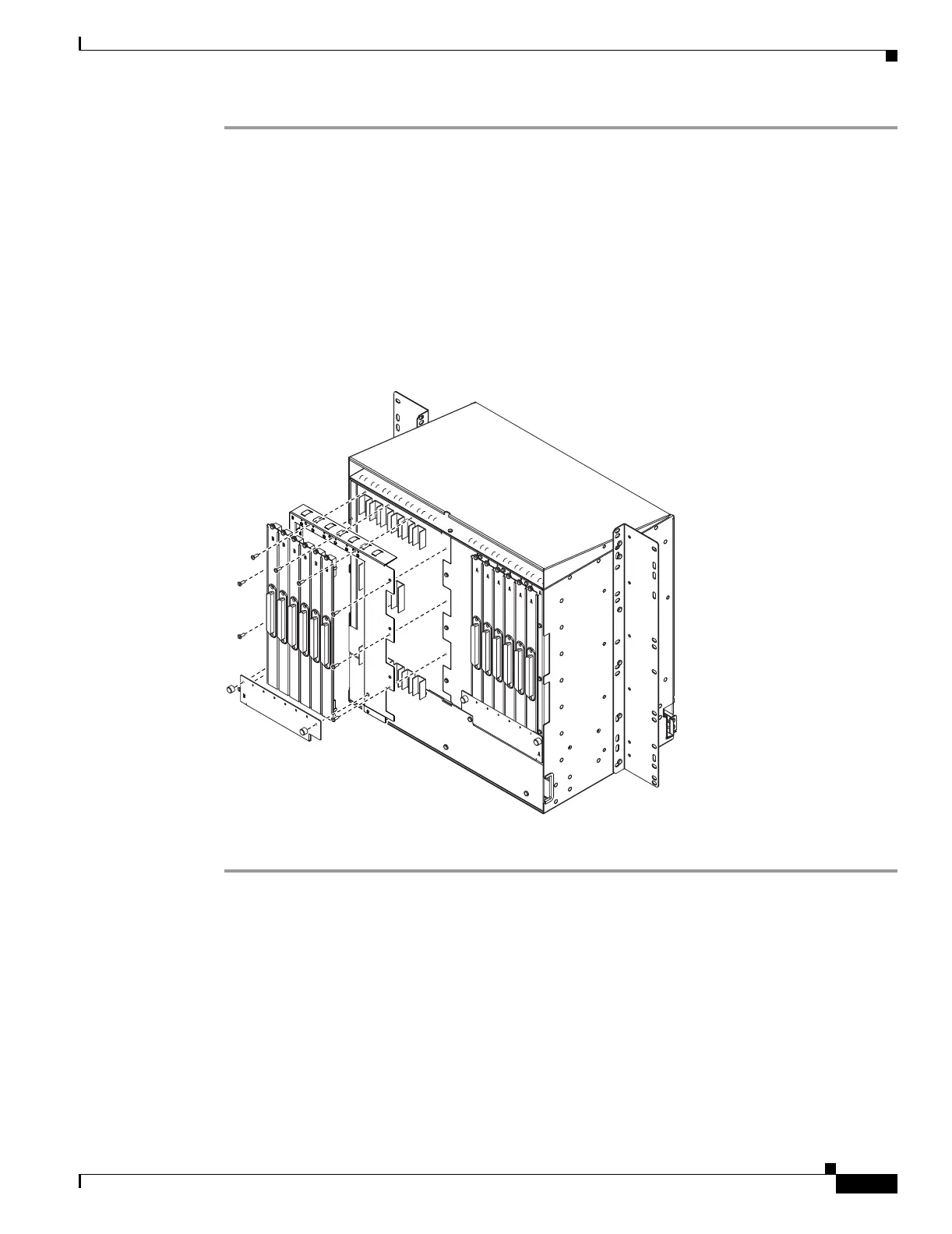

Figure 17-8 shows an AMP Champ EIA installation.
Figure 17-8 Installing the AMP Champ EIA
Step 5
Return to your originating procedure (NTP).
44309
