DLP-A257 View Ethernet Utilization PM Parameters

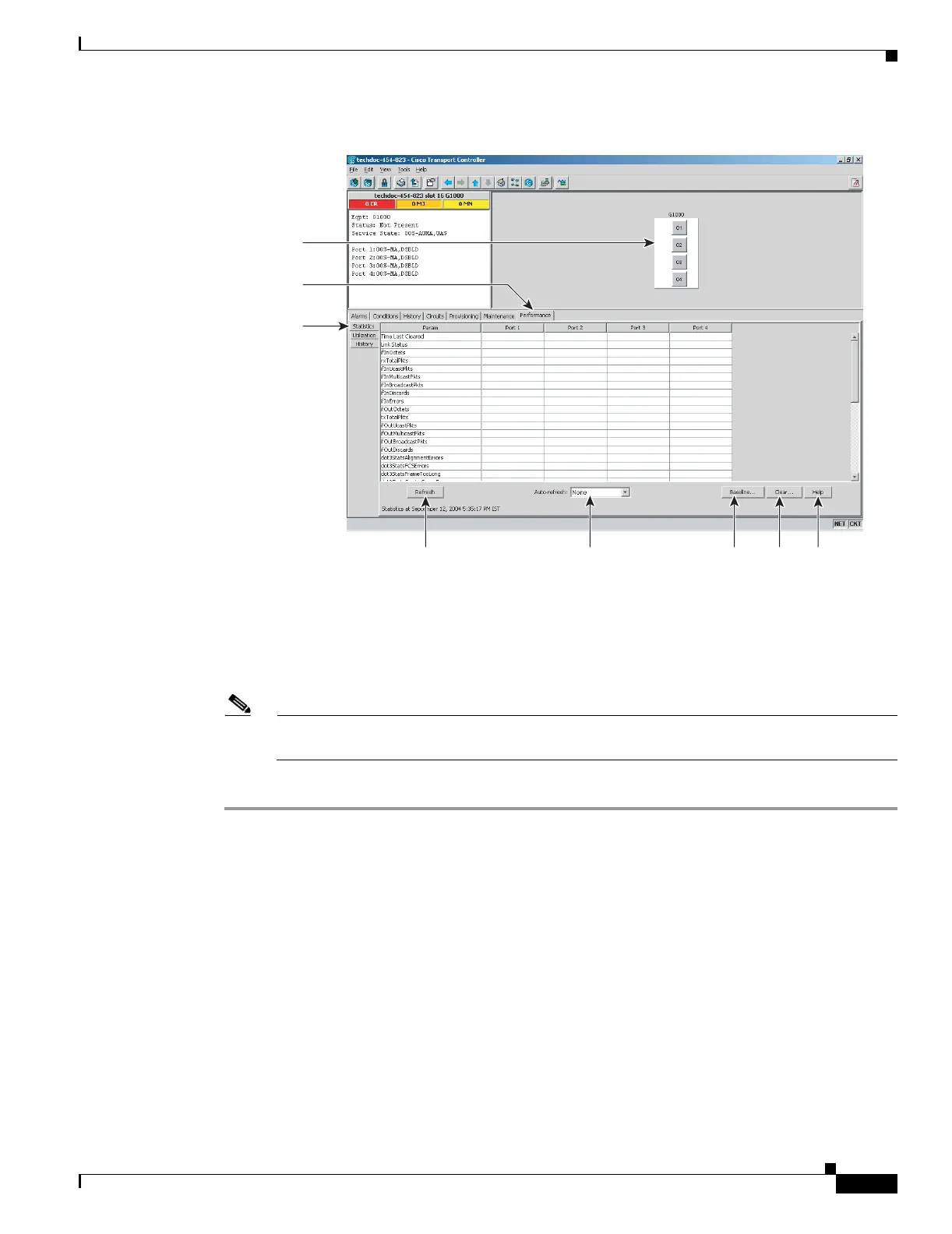

Figure 19-4 G-Series Statistics on the Card View Performance Window
Step 3
Click Refresh. Performance monitoring statistics for each port on the card appear.
Step 4 View the PM parameter names appear in the Param column. The current PM parameter values appear in
the Port # columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in the
Cisco ONS 15454 Troubleshooting Guide.
Note To refresh, reset, or clear PM counts, see the “NTP-A253 Change the PM Display” procedure
on page 8-2.
Step 5 Return to your originating procedure (NTP).
DLP-A257 View Ethernet Utilization PM Parameters
124910
Performance
tab
Card View
Statistics tab
Help
button
Clear
button
Baseline
button
Auto-refresh
menu
Refresh
button
Purpose This task enables you to view line utilization PM counts on an Ethernet
card and port to detect possible performance problems.
Tools/Equipment None
Prerequisite Procedures DLP-A60 Log into CTC, page 17-66
Required/As Needed As needed
Onsite/Remote Onsite or remote
Security Level Retrieve or higher
