Cisco ONS 15454 Series User Manual

19-41
Cisco ONS 15454 Procedure Guide, R5.0
September 2005
Chapter 19 DLPs A200 to A299
DLP-A258 View Ethernet History PM Parameters
DLP-A258 View Ethernet History PM Parameters
Step 1 In node view, double-click the E-Series or G-Series Ethernet card where you want to view PM counts.
The card view appears.
Step 2 Click the Performance > History tabs (Figure 19-6).

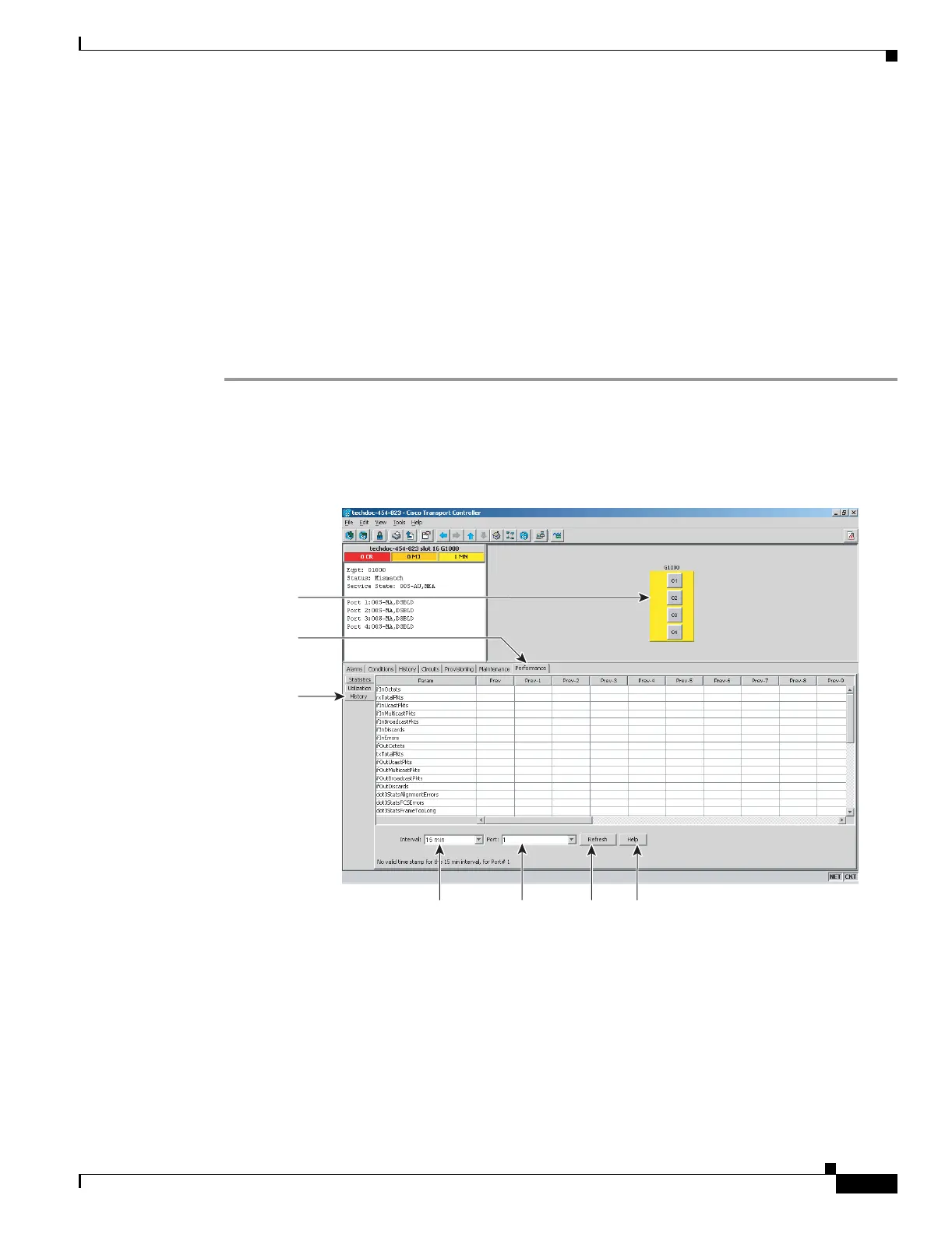

Figure 19-6 Ethernet History on the Card View Performance Window
Step 3
Click Refresh. Performance monitoring statistics for each port on the card appear.
Step 4 View the PM parameter names that appear in the Param column. The PM parameter values appear in the
Prev-n columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in the
Cisco ONS 15454 Troubleshooting Guide.
Purpose This task enables you to view historical PM counts at selected time
intervals on an Ethernet card and port to detect possible performance
problems.
Tools/Equipment None
Prerequisite Procedures DLP-A60 Log into CTC, page 17-66
Required/As Needed As needed
Onsite/Remote Onsite or remote
Security Level Retrieve or higher
124909
History tab
Performance
tab
Card View
Refresh
button
Help
button
Port
menu
Interval
menu

Cisco ONS 15454 Series Specifications

General

Supported Interfaces	Ethernet
Management	Cisco Transport Controller (CTC), TL1, SNMP
Power Supply	-48 VDC or AC (depending on power supply module)
Operating Temperature	0 to 50°C (32 to 122°F) - varies by module
Storage Temperature	-40°C to 70°C (-40 to 158°F)
Relative Humidity	5 to 95%, noncondensing
Supported Protocols	SONET/SDH, Ethernet, OTN
Platform Type	Multi-service transport platform
