19-6
Cisco ONS 15454 Procedure Guide, R5.0
September 2005
Chapter 19 DLPs A200 to A299
DLP-A208 Change External Alarms Using the AIC-I Card

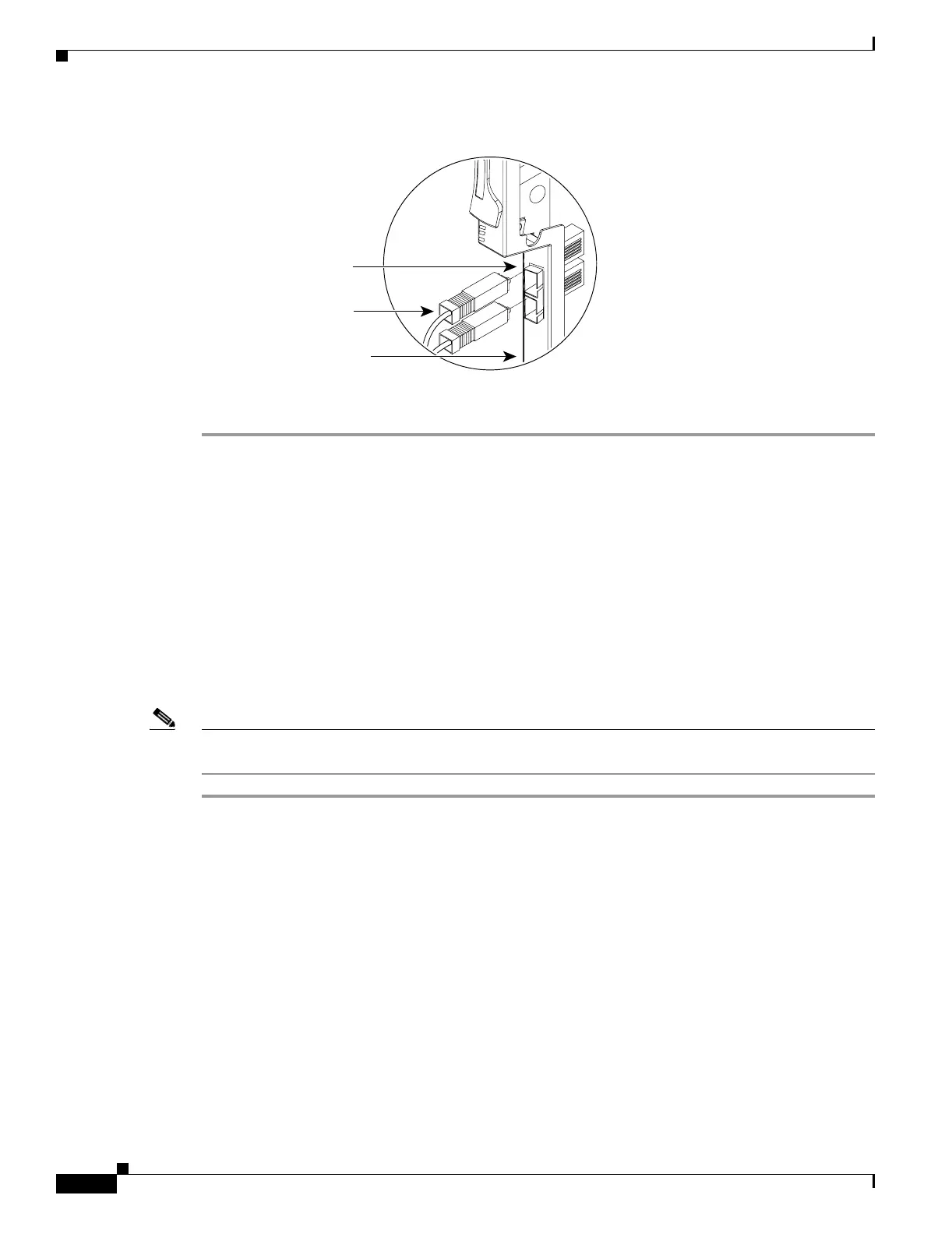

Figure 19-1 Installing Fiber-Optic Cables
Step 4
Return to your originating procedure (NTP).
DLP-A208 Change External Alarms Using the AIC-I Card
Note The procedure is the same if you are using the alarm expansion panel (AEP). In this case, the number of
contacts that are shown on the screen is changed accordingly.
Step 1 Confirm that external-device relays are wired to the ENVIR ALARMS IN backplane pins. See the
“DLP-A19 Install Alarm Wires on the Backplane” task on page 17-22 for more information.
Step 2 Double-click the AIC-I card to display it in card view.
Step 3 Click the Provisioning > External Alarms tabs.
Step 4 Modify any of the following fields for each external device wired to the ONS 15454 backplane. For
definitions of these fields, see the “NTP-A258 Provision External Alarms and Controls on the Alarm
Interface Controller-International” procedure on page 7-11.
• Enabled
• Alarm Type
• Severity
• Virtual Wire
• Raised When
• Description
Purpose This task changes external alarm settings on the Alarm Interface
Controller–International (AIC-I) card.
Tools/Equipment None
Prerequisite Procedures DLP-A60 Log into CTC, page 17-66
Required/As Needed As needed
Onsite/Remote Onsite or remote
Security Level Provisioning or higher
Tx
Rx
FAIL
ACT
SF
32082
Front edge of card
SC cable connector
SC faceplate connector
To Next Page
