Cisco ONS 15454 Series - Figure 15-13 UBIC-V EIA Screw Locations

15-34
Cisco ONS 15454 Procedure Guide, R5.0
December 2004
Chapter 15 Maintain the Node
NTP-A162 Replace the UBIC-V EIA

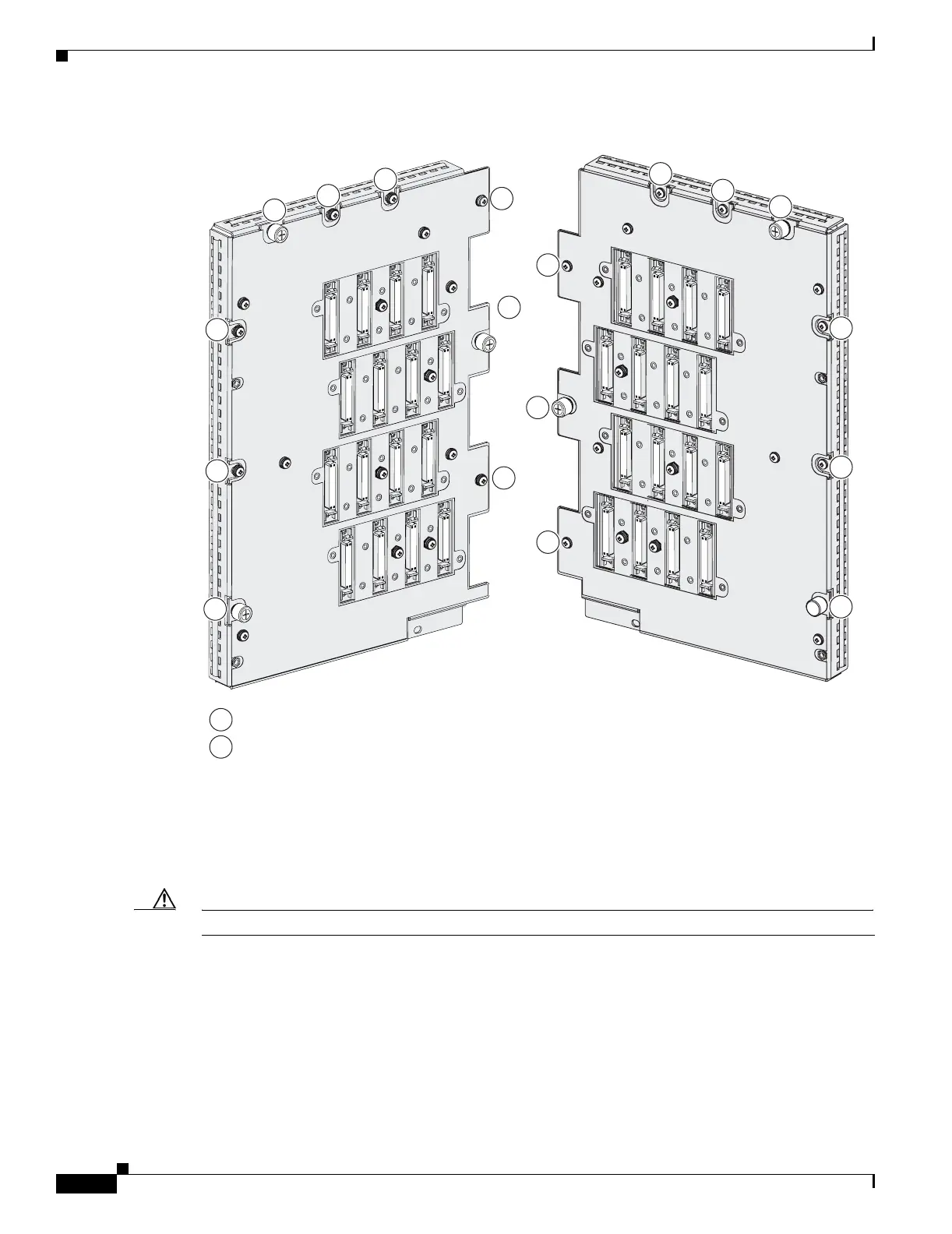

Figure 15-13 UBIC-V EIA Screw Locations
Step 3
Use a Phillips screwdriver to loosen each jack screw a maximum of two turns. Rotate each jack screw
two turns at a time (per the rotation indicator) until all jack screws are fully disengaged (Figure 15-14).
Caution Loosening the jack screws unevenly could cause damage to the UBIC-V connectors.
Jack screws (3)
115140
1
1
Perimeter screws, 6-32 x 0.375-inch Phillips head (6)
2
1
1
1
2
2
2
2
2
2
2
2
1
1
2
2
2
2
