Chapter 6 Create Circuits and VT Tunnels
NTP-A149 Test G-Series Circuits

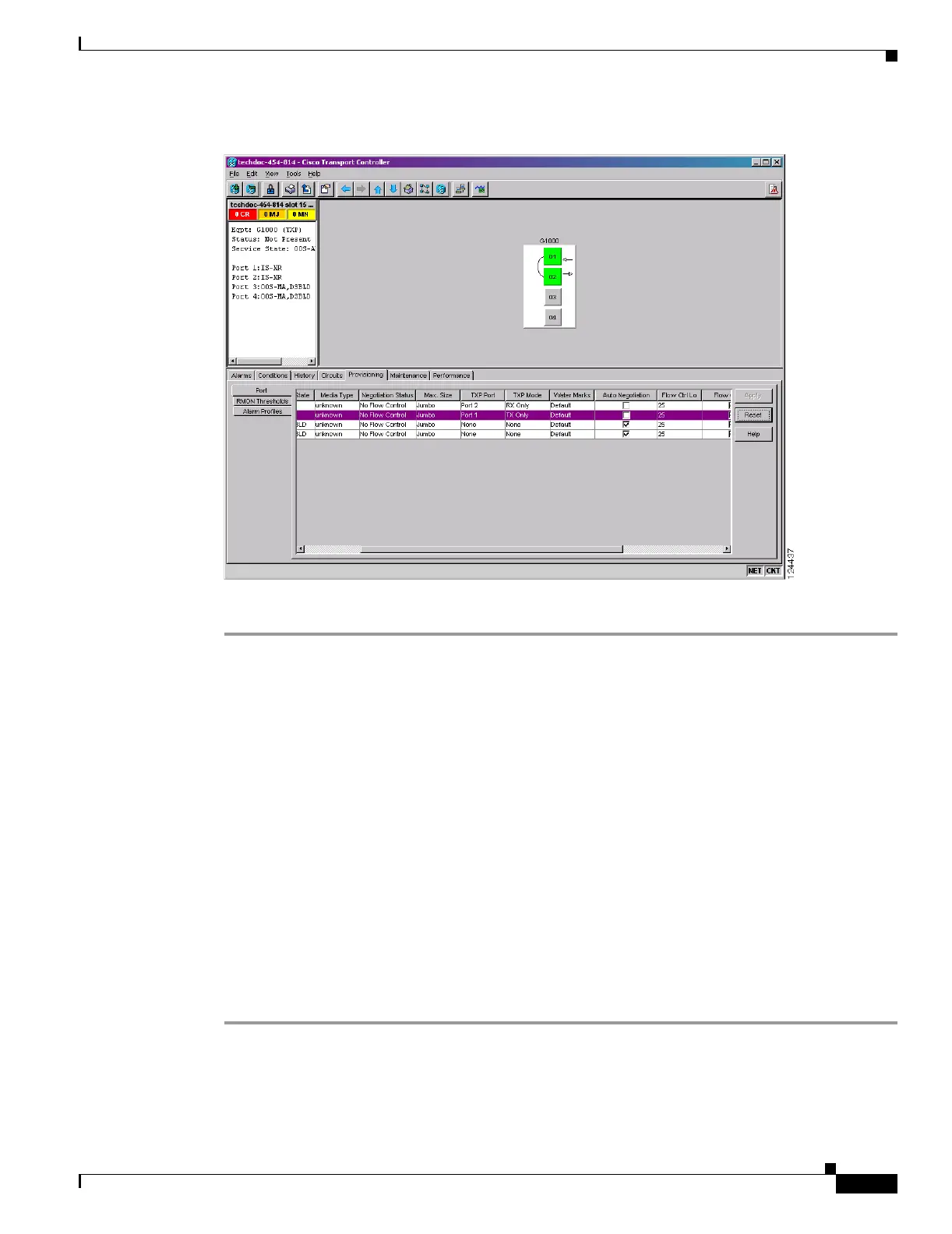

Figure 6-16 Two-Port Unidirectional Transponder Mode
Stop. You have completed this procedure.
NTP-A149 Test G-Series Circuits
Step 1 Complete the “DLP-A60 Log into CTC” task on page 17-66 at the node where you will create the circuit.
Step 2 Complete the “DLP-A230 Change a Circuit Service State” task on page 19-19 to change the circuit and
circuit ports to the OOS-MA,MT service state.
Step 3 On the shelf graphic, double-click the circuit source card.
Purpose This procedure tests circuits created on G-Series cards.
Tools/Equipment Ethernet test set and appropriate fibers
Prerequisite Procedures This procedure assumes you completed facility loopback tests to test the
fibers and cables from the source and destination ONS 15454s to the fiber
distribution panel or the DSX, and one of the following procedures:
NTP-A147 Create a G-Series STS Circuit, page 6-73
NTP-A148 Create a Manual Cross-Connect for a G-Series or E-Series Card
in Port-Mapped Mode, page 6-76
Required/As Needed As needed
Onsite/Remote Onsite
Security Level Provisioning or higher
