DLP-A395 View BFDL PM Parameters for the DS3XM-12 Card
DLP-A395 View BFDL PM Parameters for the DS3XM-12 Card
Step 1 In node view, double-click the DS3XM-12 electric card where you want to view PM counts. The card
view appears.
Step 2 Click the Performance > BFDL PM tabs to view the BFDL performance parameters (Figure 20-22).

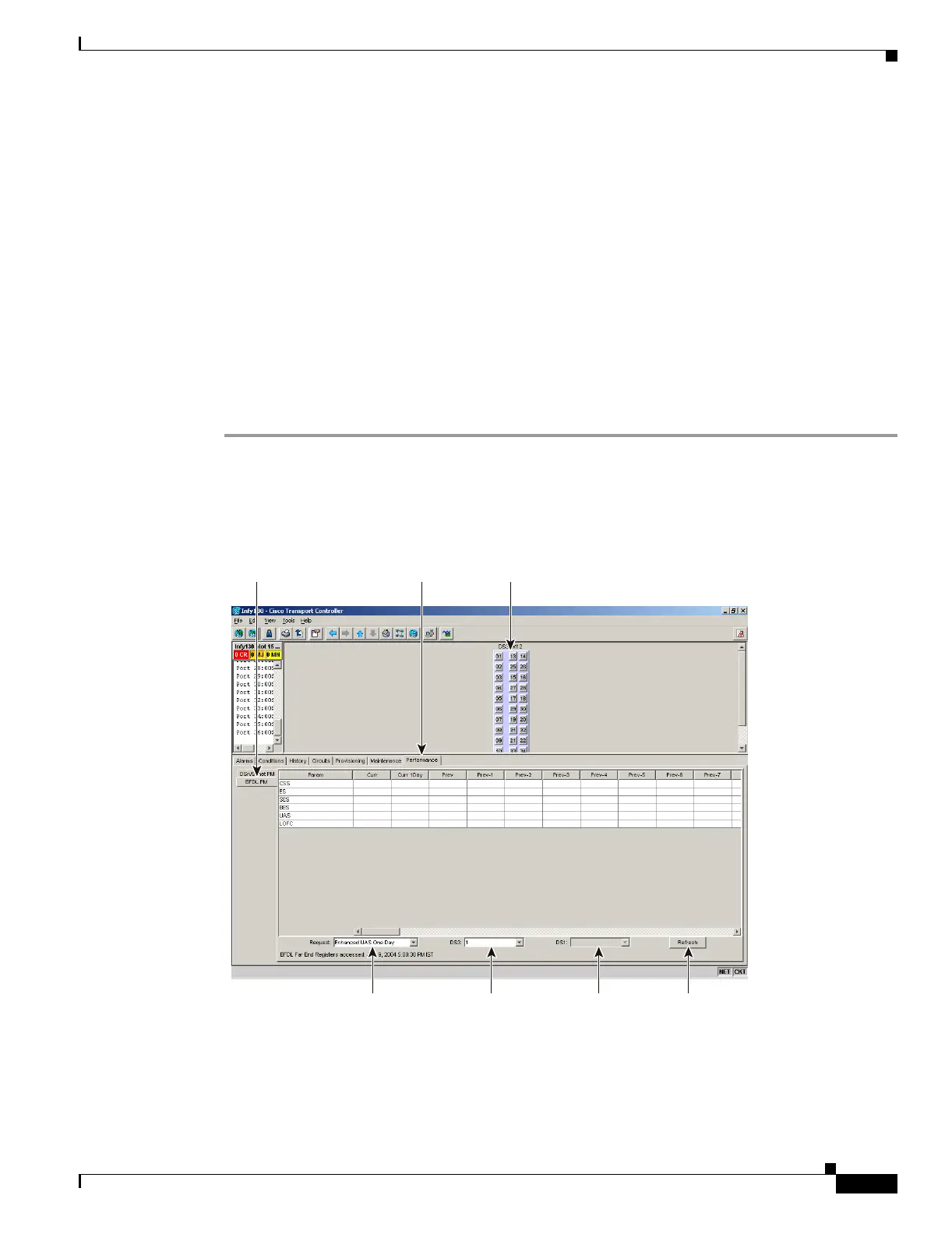

Figure 20-22 Viewing DS3XM-12 Card BFDL Performance Monitoring Information
Purpose This task enables you to view BFDL PM parameters for near-end or
far-end performance during selected time intervals on a DS3XM-12
electrical card and port to detect possible performance problems.
Tools/Equipment None
Prerequisite Procedures Before you monitor performance, be sure you have created the
appropriate circuits and provisioned the card according to your
specifications. For more information, see Chapter 6, “Create Circuits
and VT Tunnels” and Chapter 11, “Change Card Settings.”
Required/As Needed As needed
Onsite/Remote Onsite or remote
Security Level Retrieve or higher
124469
Performance tabBFDL tab Card view
Signal-type
drop-down list
Request
drop-down list
Sub-signal STS
drop-down list
Refresh
button
