Chapter 20 DLPs A300 to A399
DLP-A399 Install a UBIC-H EIA
Step 8 Use a Phillips screwdriver to install five of the six perimeter screws (Figure 20-27), leaving the lower
perimeter screw out, and torque to 8 to 10 lbf-inch (9.2 to 11.5 kgf-cm) to secure the cover panel to the
backplane.

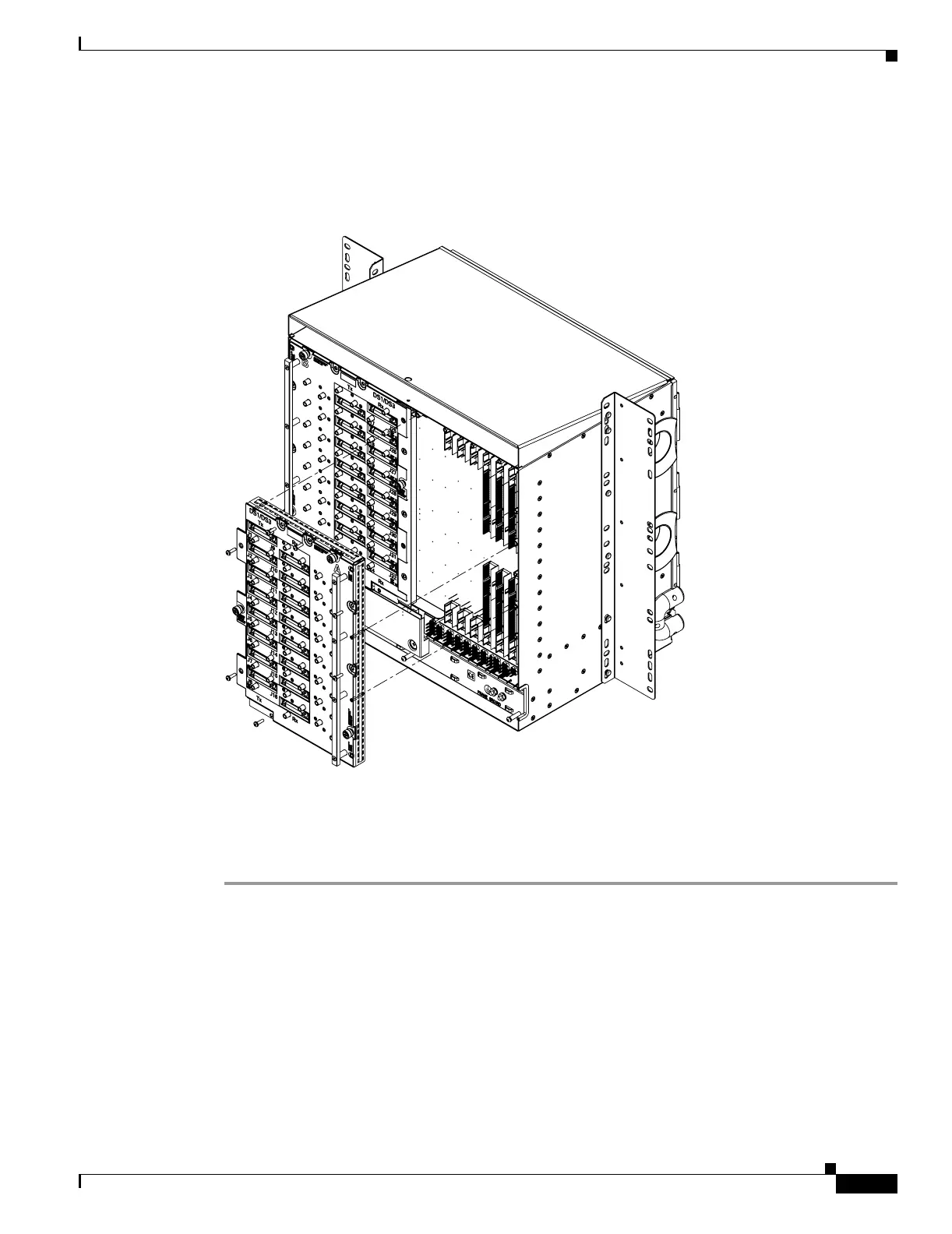

Figure 20-27 Installing the UBIC-H EIA
Step 9
Reinstall the lower backplane cover using a Phillips screwdriver, inserting five screws and tightening
until seated.
Step 10 Return to your originating procedure (NTP).
