Cisco ONS 15454 Series User Manual

5-25
Cisco ONS 15454 Procedure Guide, R5.0
December 2004
Chapter 5 Turn Up Network
NTP-A216 Provision a Traditional Path Protection Dual-Ring Interconnect
• The interconnect nodes must have fiber connections. An example is shown in Figure 5-7. This
example shows a path protection DRI with two rings, Nodes 1 through 4 and 5 through 8. In the
example, an additional OC-N is installed in Slot 13 at Node 4 and connected to an OC-N in Slot 6
at Node 6. Nodes 3 and 5 are interconnected with OC-N cards in Slot 6 (Node 3) and Slot 13 (Node
5).

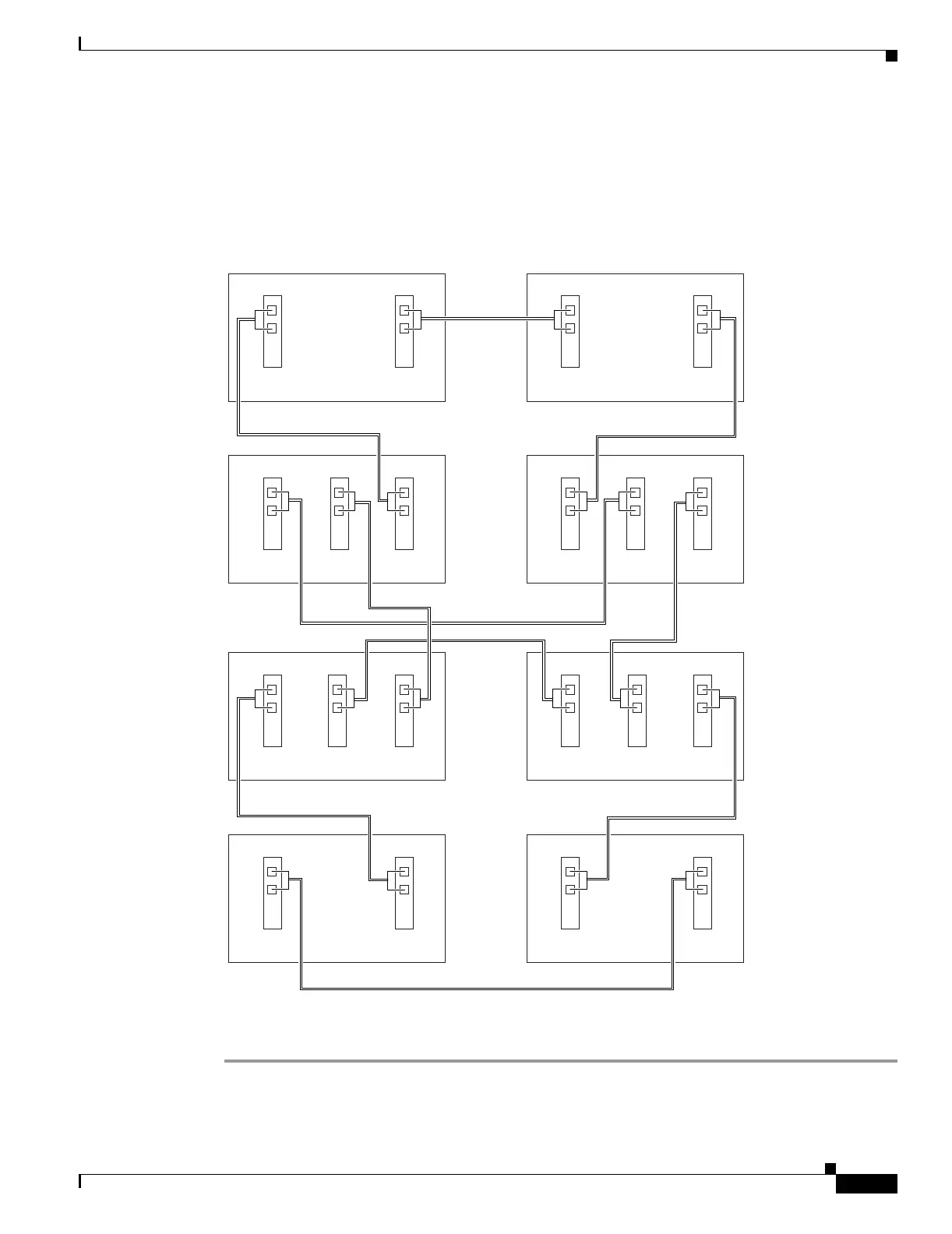

Figure 5-7 Traditional Path Protection DRI Fiber Connection Example
Stop. You have completed this procedure.
Node 1
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Node 3
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Node 2
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Node 4
Slot 5
Tx
Rx
Slot 12
Tx
Rx
83499
Node 5
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Node 7
Slot 5
Tx
Rx
Slot 12
Tx
Rx
Node 6
Slot 5
Tx
Rx
Slot 6
Tx
Rx
Slot 13
Tx
Rx
Slot 13
Tx
Rx
Slot 6
Tx
Rx
Slot 12
Tx
Rx
Node 8
Slot 5
Tx
Rx
Slot 12
Tx
Rx

Cisco ONS 15454 Series Specifications

General

Supported Interfaces	Ethernet
Management	Cisco Transport Controller (CTC), TL1, SNMP
Power Supply	-48 VDC or AC (depending on power supply module)
Operating Temperature	0 to 50°C (32 to 122°F) - varies by module
Storage Temperature	-40°C to 70°C (-40 to 158°F)
Relative Humidity	5 to 95%, noncondensing
Supported Protocols	SONET/SDH, Ethernet, OTN
Platform Type	Multi-service transport platform
