17-9
Cisco ONS 15454 Procedure Guide, R5.0
March 2005
Chapter 17 DLPs A1 to A99
DLP-A9 Remove the Front Door

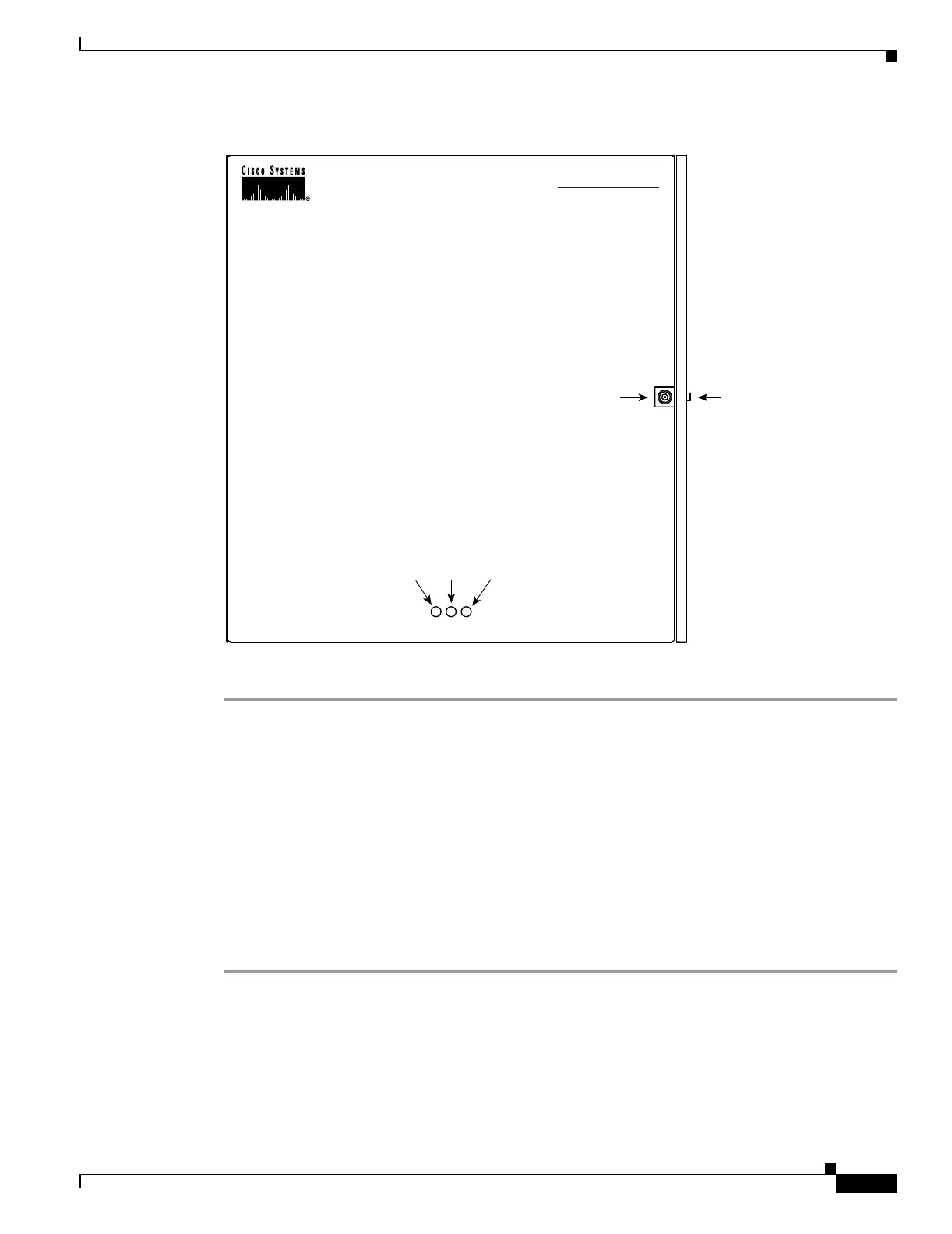

Figure 17-3 Cisco ONS 15454 Front Door
Step 4 Return to your originating procedure (NTP).
DLP-A9 Remove the Front Door
Step 1 To remove the door ground strap (available in Release 3.3 and later), perform the following:
a. To detach the ground strap from the front door, loosen the #6 Kepnut (49-0600-01) using the
open-end wrench. Detach the end of the ground strap terminal lug (72-3622-01) from the male stud
on the inside of the door.
Purpose This task removes the front cabinet compartment door.
Tools/Equipment Open-end wrench
Prerequisite Procedures DLP-A8 Open the Front Door, page 17-8
Required/As Needed As needed
Onsite/Remote Onsite
Security Level None
Door lock
Door button
Viewholes for Critical, Major and Minor alarm LEDs
33923
CISCO ONS 15454
Optical Network System
