DLP-A27 Install Coaxial Cable with SMB Connectors
Step 1 Place the SMB cable connector over the desired connection point on the backplane (Figure 17-16).

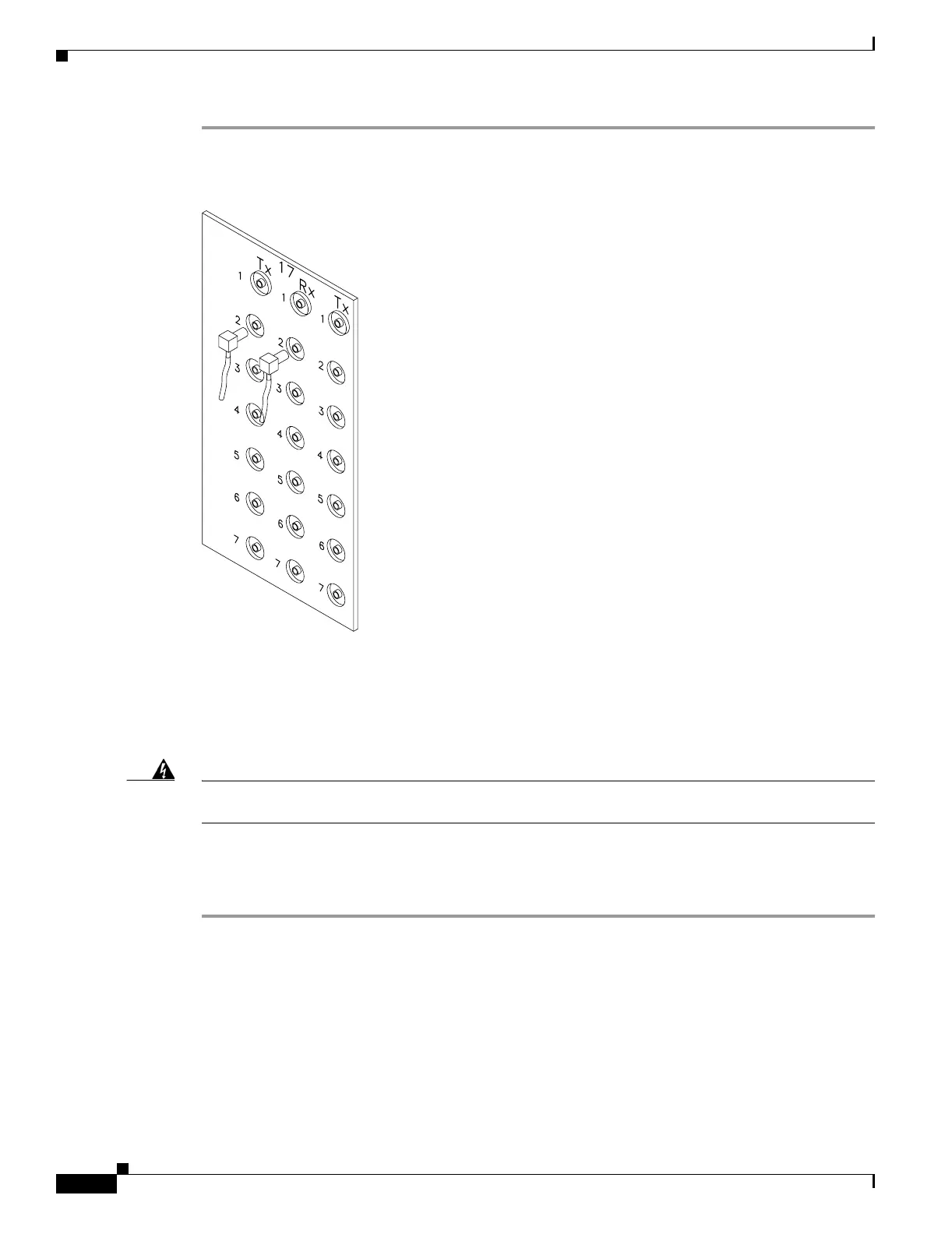

Figure 17-16 Installing Coaxial Cable with SMB Connectors
Step 2
Gently push the connector until it clicks into place.
Step 3 Tie wrap or lace the cables to the EIA according to Telcordia standards (GR-1275-CORE) or local site
practice.
Step 4 Route the cables to the nearest side of the shelf assembly into rack runs according to local site practice.
Warning IMetallic interfaces for connection to outside plant lines (such as T1/E1/T3/E3 etc.) must be connected
through a registered or approved device such as CSU/DSU or NT1. Statement 290
Step 5 Label the transmit, receive, working, and protect cables at each end of the connection to avoid confusion
with cables that are similar in appearance.
Step 6 Return to your originating procedure (NTP).
