Cisco ONS 15454 Series - DLP- A14 Install the AMP Champ EIA; Figure 17-7 Installing the SMB EIA (Use a Balun for DS-1 Connections)

17-16
Cisco ONS 15454 Procedure Guide, R5.0
March 2005
Chapter 17 DLPs A1 to A99
DLP-A14 Install the AMP Champ EIA

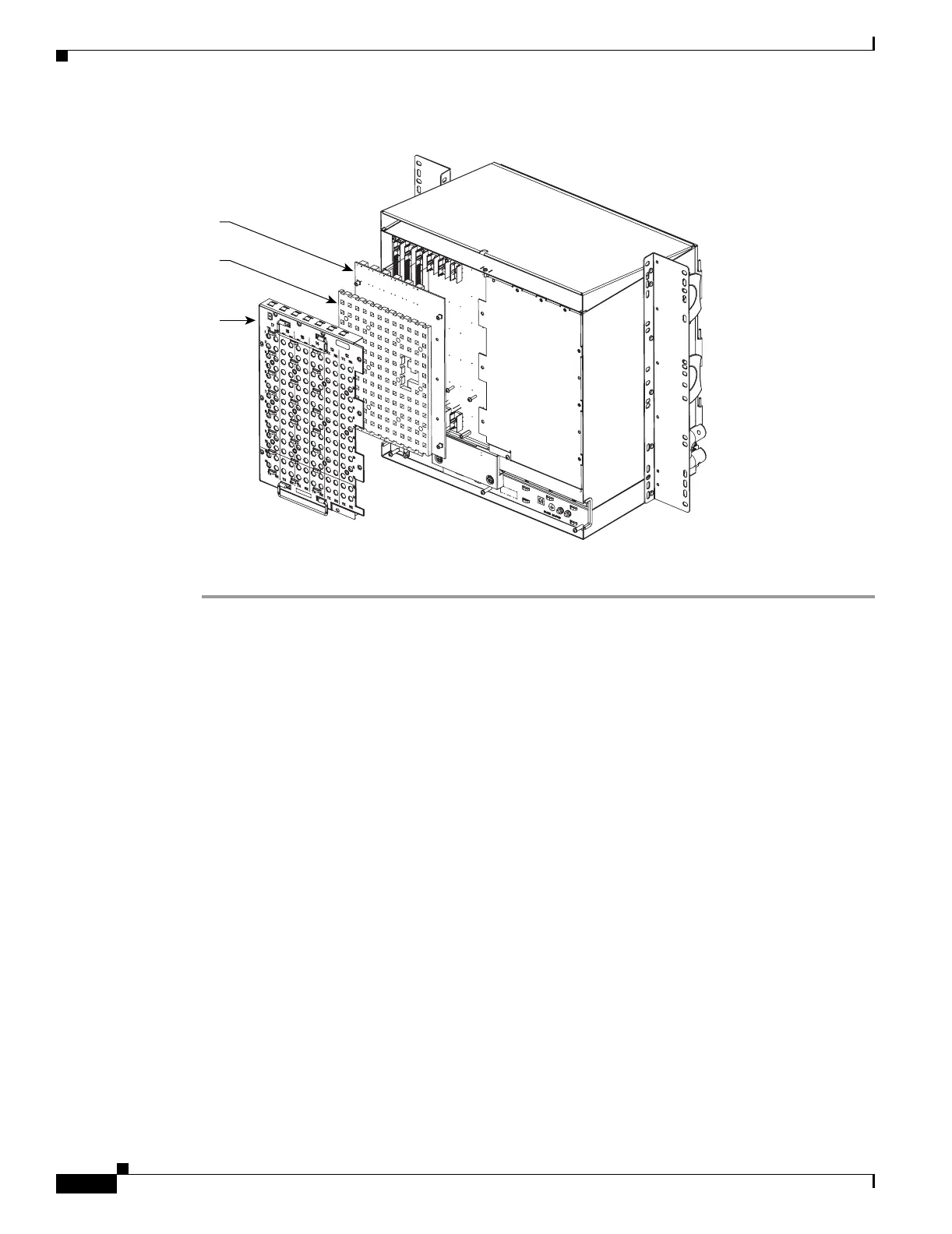

Figure 17-7 Installing the SMB EIA (Use a Balun for DS-1 Connections)
Step 6
Return to your originating procedure (NTP).
DLP-A14 Install the AMP Champ EIA
Purpose This task installs an AMP Champ EIA. Use an AMP Champ EIA if you are
using DS1-14 cards and prefer an AMP interface to an SMB interface.
Tools/Equipment #2 Phillips screwdriver
Medium slot-head screwdriver
Small slot-head screwdriver
9 perimeter screws
12 inner screws
5 backplane cover screws
6 AMP Champ cards
EIA panel
Prerequisite Procedures None
Required/As Needed As needed
Onsite/Remote Onsite
Security Level None
43762
Metal SMB cover panel
Foil EMI gasket
(Note: Might ship already
installed on the SMB EIA)
SMB EIA
