Chapter 17 DLPs A1 to A99
DLP-A29 Route DS-1 and DS-3/EC-1 Twisted-Pair Cables

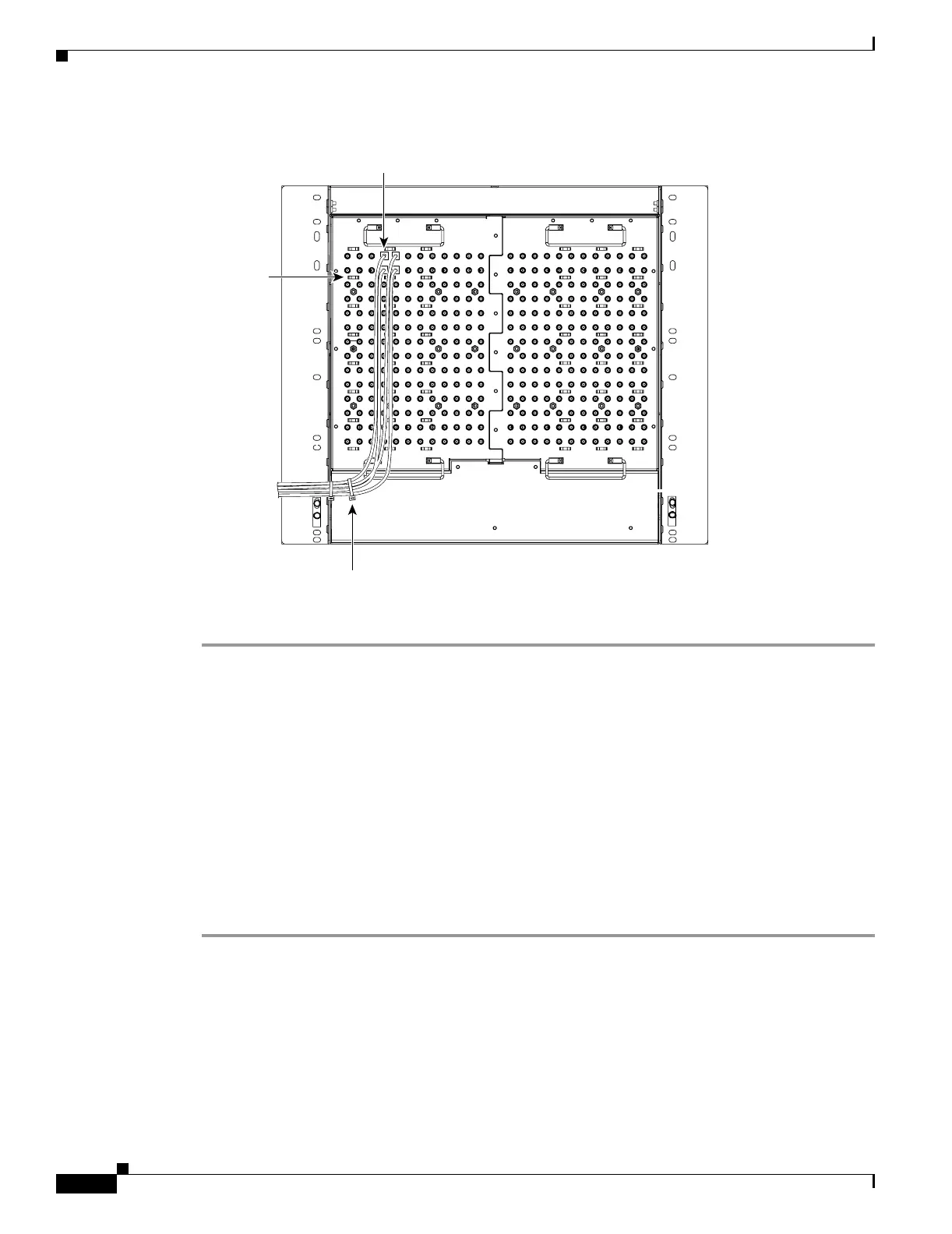

Figure 17-17 Routing Coaxial Cable (SMB EIA Backplane)
Step 4
Return to your originating procedure (NTP).
DLP-A29 Route DS-1 and DS-3/EC-1 Twisted-Pair Cables
Step 1 Verify the following:
• DS-1 electrical interface adapters are installed on every transmit and receive connector for DS-1
ports.
• Wire-wrap posts on the DS-1 electrical interface adapters are used to connect the terminated
incoming cables.
Step 2 Tie-wrap or lace the DS-1 and DS-3/EC-1 twisted-pair cables according to local site practice and route
the cables into the side cutouts on either side of the ONS 15454.
Purpose This task routes the DS-1 and DS-3/EC-1 twisted-pair cables.
Tools/Equipment None
Prerequisite Procedures DLP-A23 Install DS-1 Cables Using Electrical Interface Adapters (Balun),
page 17-28
Required/As Needed As needed
Onsite/Remote Onsite
Security Level None
B
A
Connector ends
Tie-wrap
posts
32079
Tie-wraps

Cisco ONS 15454 Series Specifications

General

Supported Interfaces	Ethernet
Management	Cisco Transport Controller (CTC), TL1, SNMP
Power Supply	-48 VDC or AC (depending on power supply module)
Operating Temperature	0 to 50°C (32 to 122°F) - varies by module
Storage Temperature	-40°C to 70°C (-40 to 158°F)
Relative Humidity	5 to 95%, noncondensing
Supported Protocols	SONET/SDH, Ethernet, OTN
Platform Type	Multi-service transport platform
