Chapter 15 Maintain the Node
NTP-A162 Replace the UBIC-V EIA
NTP-A162 Replace the UBIC-V EIA
Step 1 To remove the lower backplane cover, loosen and remove the five screws that secure it to the ONS 15454
and pull it away from the shelf assembly (Figure 15-12).

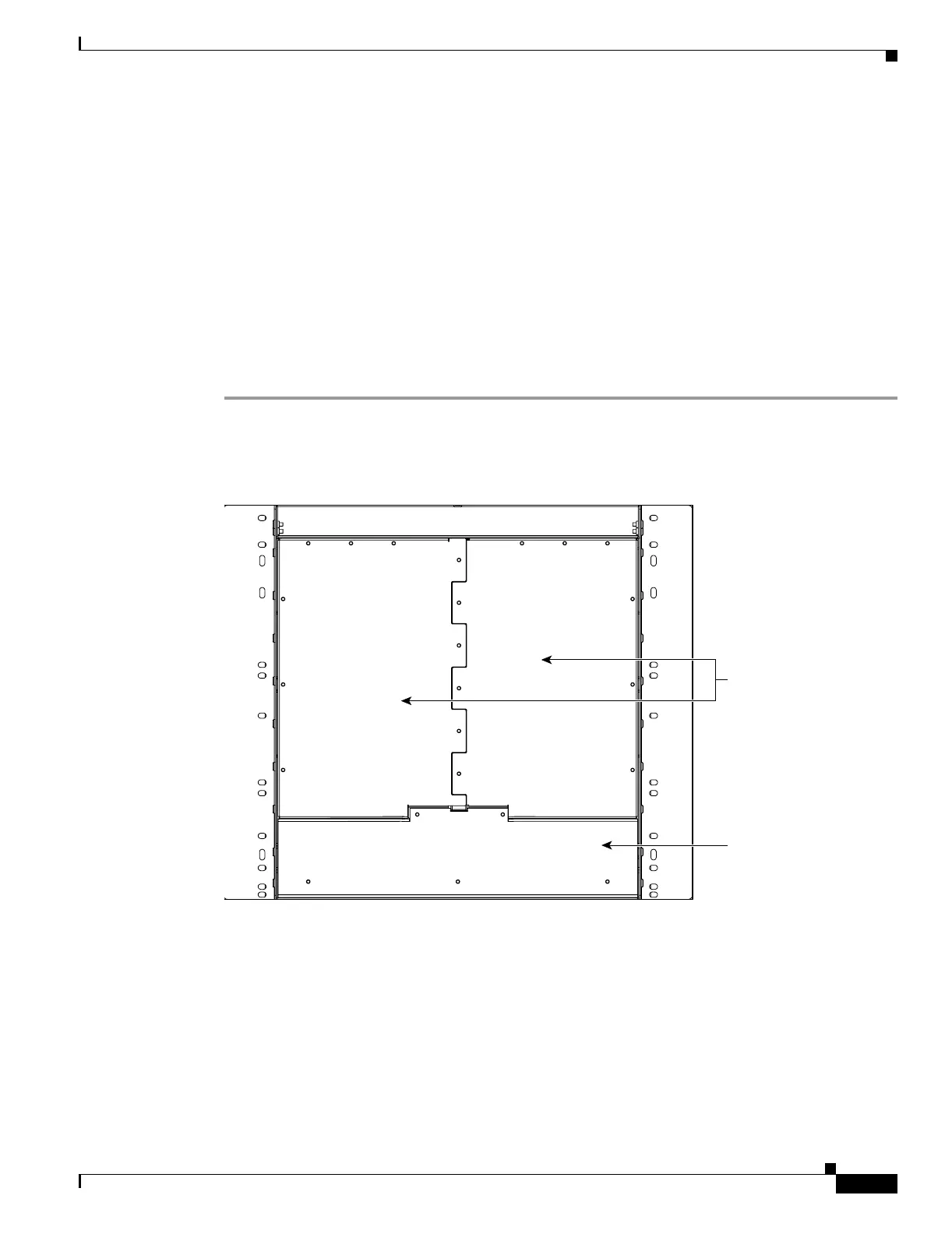

Figure 15-12 ONS 15454 Rear View (with Sheet Metal Covers Attached)
Step 2
Loosen and remove the six perimeter screws that hold the sheet metal cover and UBIC-V in place
(Figure 15-13).
Purpose This procedure replaces the UBIC-V EIA.
Tools/Equipment #2 Phillips screwdriver
Small slot-head screwdriver
Replacement UBIC-V EIA and accompanying screws
Prerequisite Procedures None
Required/As Needed As needed
Onsite/Remote Onsite
Security Level None
BA
32074
Lower Backplane
Cover
Backplane Sheet Metal
Covers
