DLP-A197 Initiate a Path Protection Force Switch
Step 1 From the View menu, choose Go to Network View.
Step 2 Right-click the span where you want to switch path protection traffic away. Choose Circuits from the
shortcut menu.
Step 3 In the Circuits on Span dialog box, choose FORCE SWITCH AWAY. Click Apply.
Step 4 In the Confirm UPSR Switch dialog box, click Yes .
Step 5 In the Protection Switch Result dialog box, click OK.
In the Circuits on Span window, the Switch State for all circuits is FORCE. Figure 18-11 shows an
example.

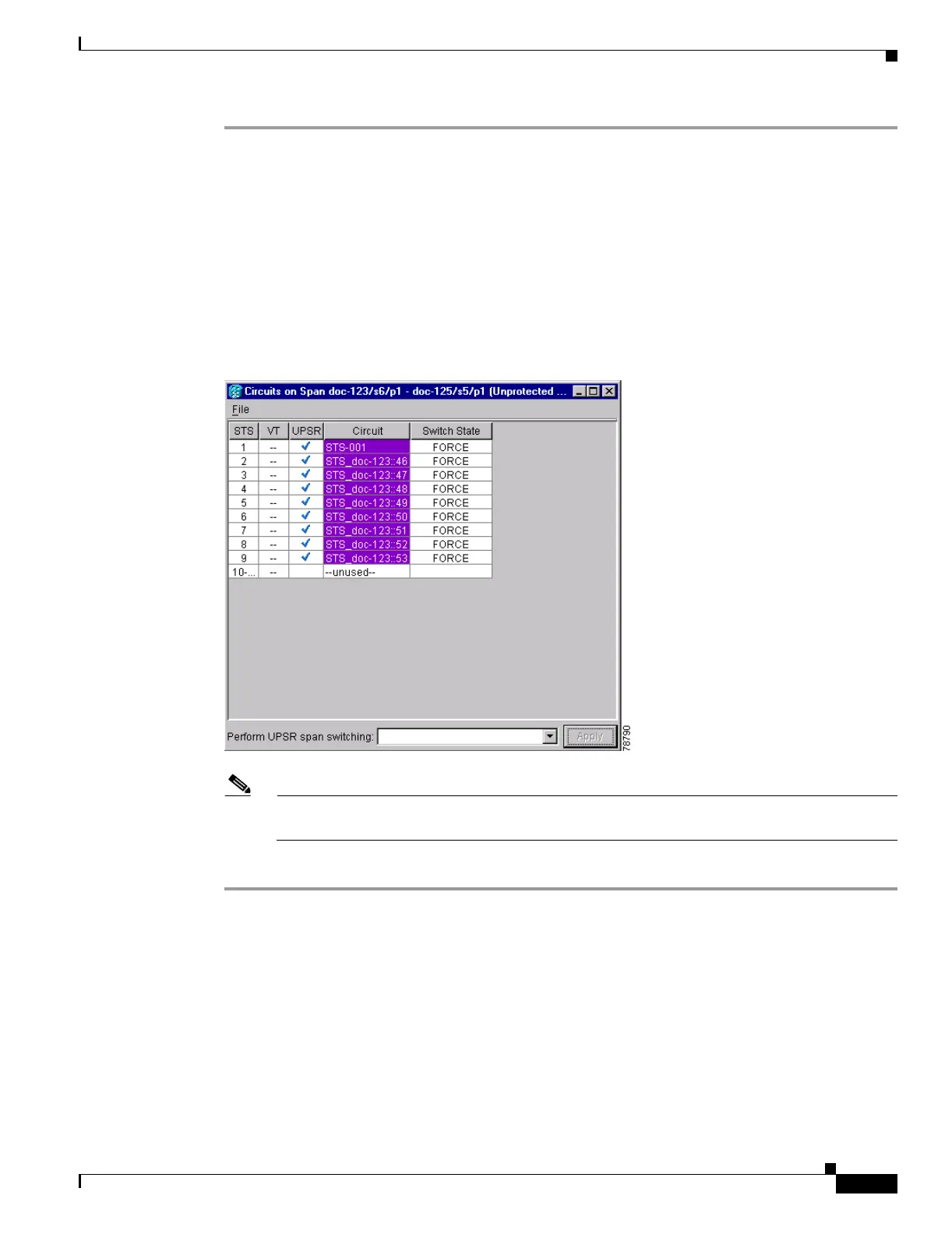

Figure 18-11 Circuits on Span Dialog Box with a Force Switch
Note A Force switch request on a span or card causes CTC to raise a FORCED-REQ condition. The
condition clears when you clear the Force switch.
Step 6 Return to your originating procedure (NTP).
