20-38
Cisco ONS 15454 Procedure Guide, R5.0
March 2005
Chapter 20 DLPs A300 to A399
DLP-A352 View FC_MR-4 History PM Parameters

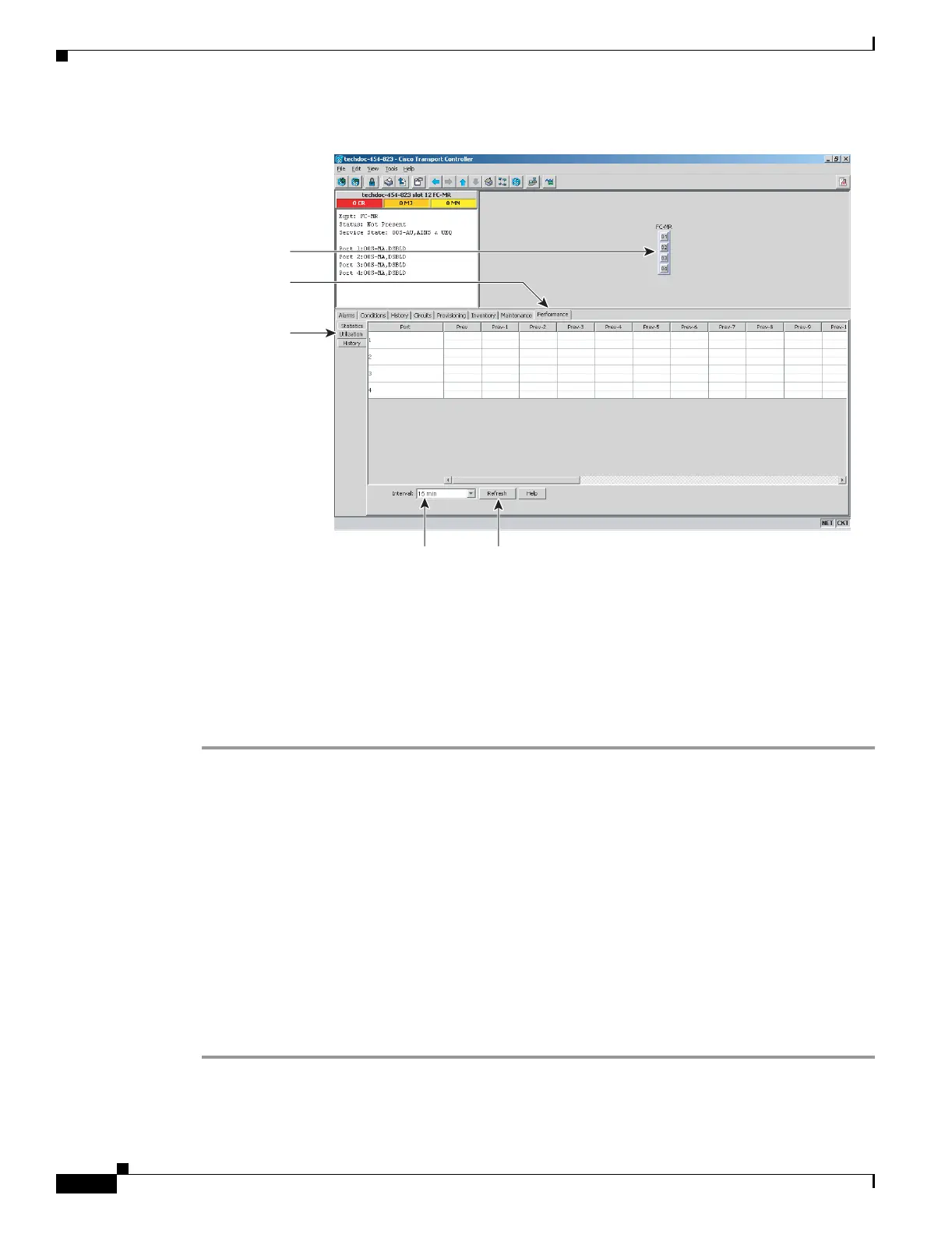

Figure 20-7 FC_MR-4 Utilization on the Card View Performance Window
Step 3
Click Refresh. Performance monitoring utilization values for each port on the card appear.
Step 4 View the Port # column to find the port you want to monitor.
Step 5 The transmit (Tx) and receive (Rx) bandwidth utilization values for the previous time intervals appear
in the Prev-n columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in
the Cisco ONS 15454 Troubleshooting Guide.
Step 6 Return to your originating procedure (NTP).
DLP-A352 View FC_MR-4 History PM Parameters
Step 1 In node view, double-click the FC_MR-4 card where you want to view PM counts. The card view
appears.
Purpose This task enables you to view historical PM counts at selected time
intervals on an FC_MR-4 card and port to detect possible performance
problems.
Tools/Equipment None
Prerequisite Procedures DLP-A60 Log into CTC, page 17-66
Required/As Needed As needed
Onsite/Remote Onsite or remote
Security Level Retrieve or higher
124908
Utilization
tab
Performance
tab
Card View
Refresh
button
Interval
drop-down list
