DLP-A257 View Ethernet Utilization PM Parameters
Step 1 In node view, double-click the E-Series or G-Series Ethernet card where you want to view PM counts.
The card view appears.
Step 2 Click the Performance > Utilization tabs (Figure 19-5).

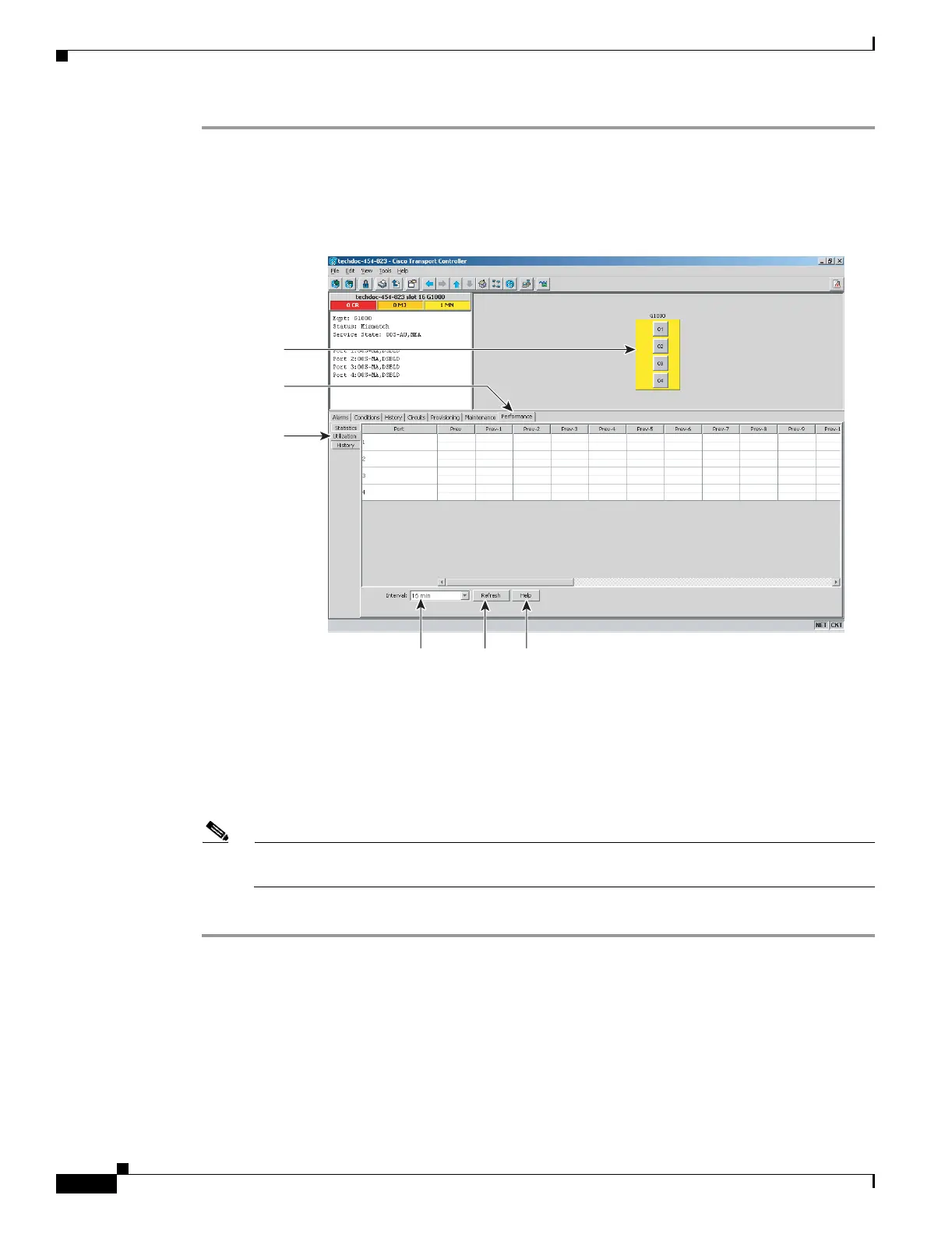

Figure 19-5 G-Series Utilization on the Card View Performance Window
Step 3
Click Refresh. Performance monitoring utilization values for each port on the card appear.
Step 4 View the Port # column to find the port you want to monitor.
Step 5 The transmit (Tx) and receive (Rx) bandwidth utilization values for the previous time intervals appear
in the Prev-n columns. For PM parameter definitions, refer to the “Performance Monitoring” chapter in
the Cisco ONS 15454 Troubleshooting Guide.
Note To refresh, reset, or clear PM counts, see the “NTP-A253 Change the PM Display” procedure
on page 8-2.
Step 6 Return to your originating procedure (NTP).
124911
Utilization
tab
Performance
tab
Card View
Refresh
button
Help
button
Interval
menu
