Cisco ONS 15454 Procedure Guide, R5.0
March 2007
Chapter 18 DLPs A100 to A199
DLP-A190 Install a UBIC-V EIA

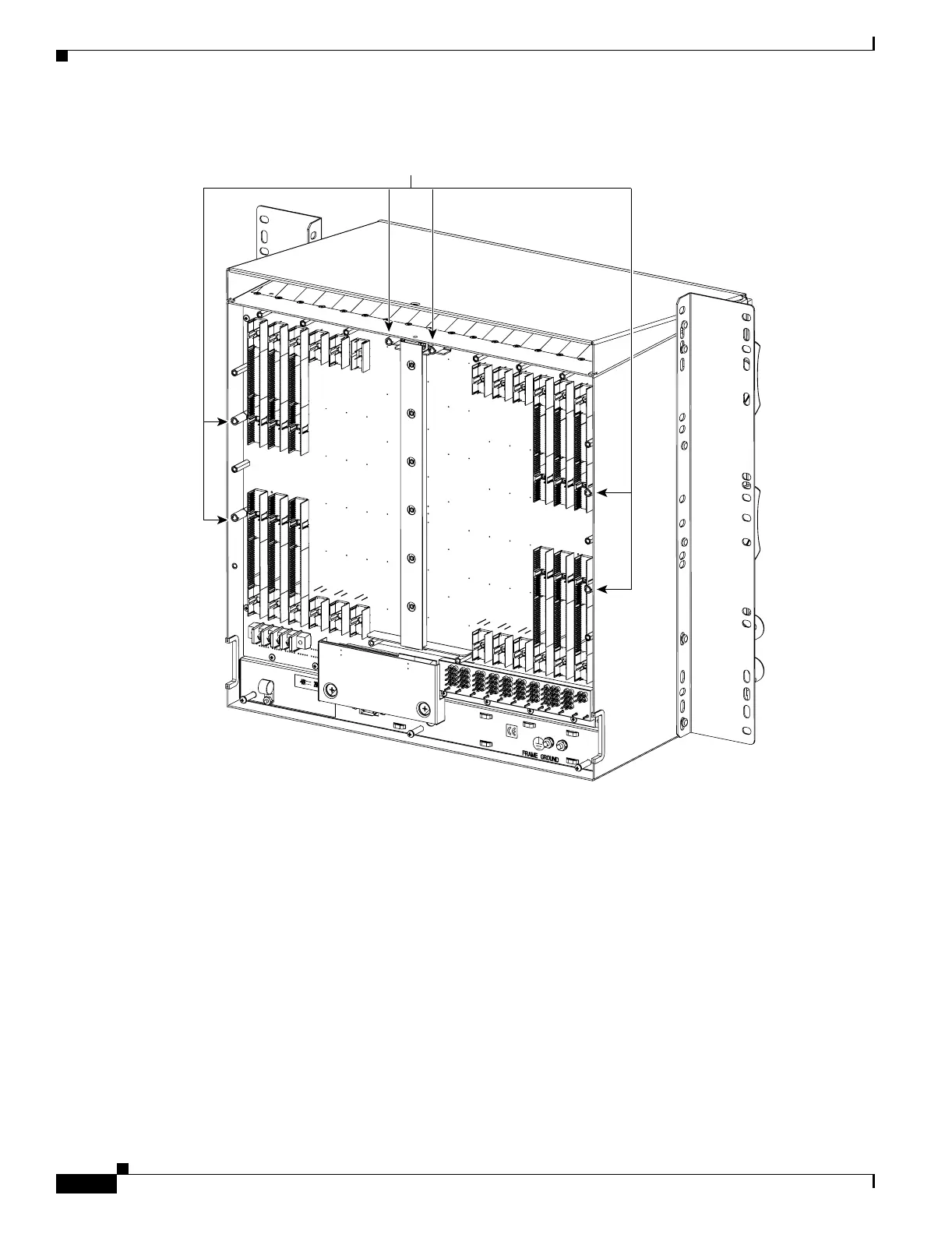

Figure 18-6 Installed Alignment Standoffs
Step 6
Line up the alignment pins on the UBIC EIA with the alignment standoffs on the shelf and push the
UBIC EIA with consistent pressure until the pins and standoffs fit together firmly (Figure 18-7).
Installed alignment standoffs
120366
