Chapter 1 Install the Shelf and Backplane Cable
NTP-A11 Install the Rear Cover

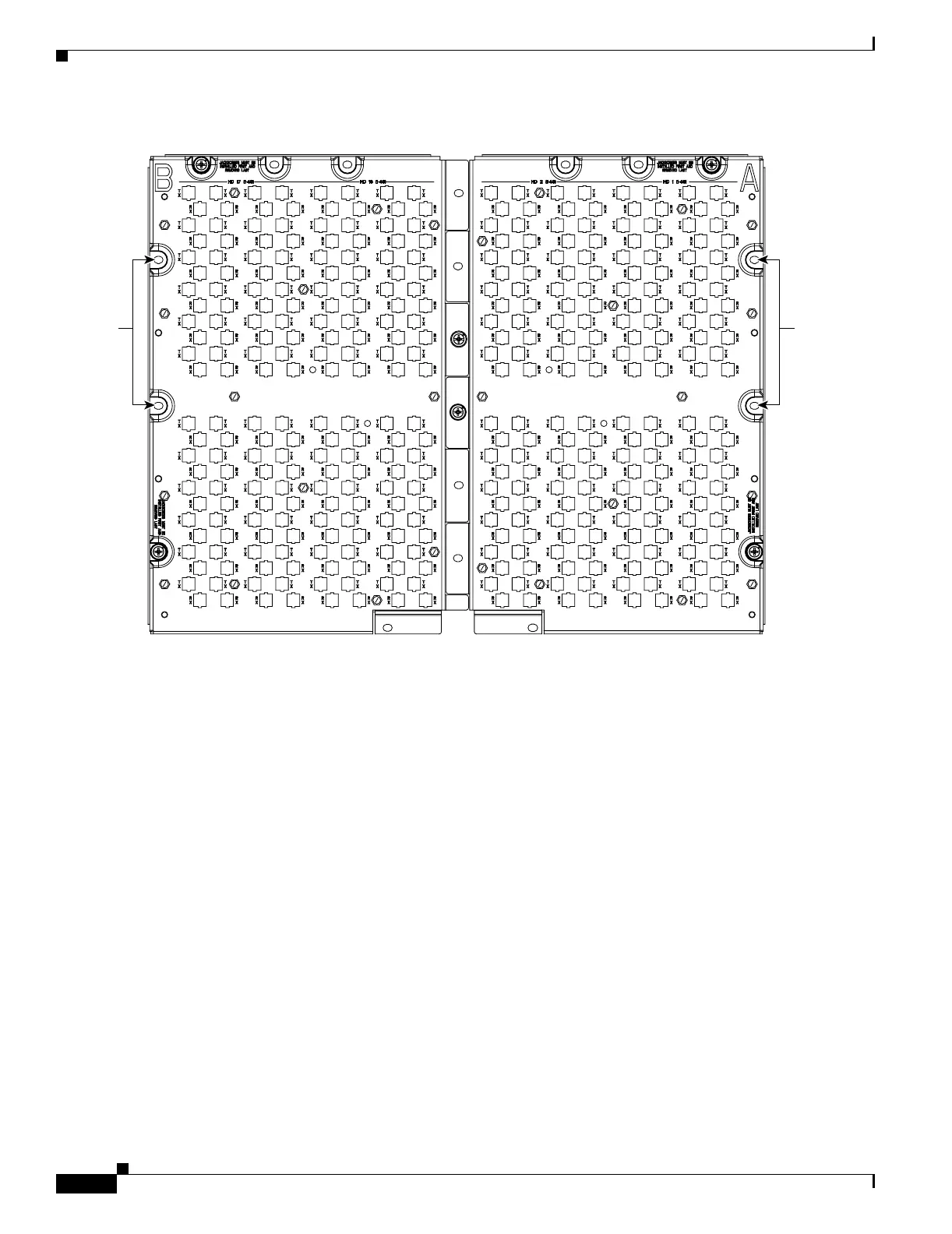

Figure 1-10 Mounting Holes on the All Other EIA Types
Step 4
Use a 5/16-inch nutdriver to install the extended standoffs in the mounting holes.
Step 5 Locate the TOP designation on one of the mounting bars (700-19701-XX) and align the appropriate
holes for your EIA with the extended standoffs (Figure 1-11).
B-side
mounting
locations
A-side
mounting
locations
115476
