Chapter 6 Create Circuits and VT Tunnels
NTP-A241 Provision G-Series Ports for Transponder Mode (Tx Mode)

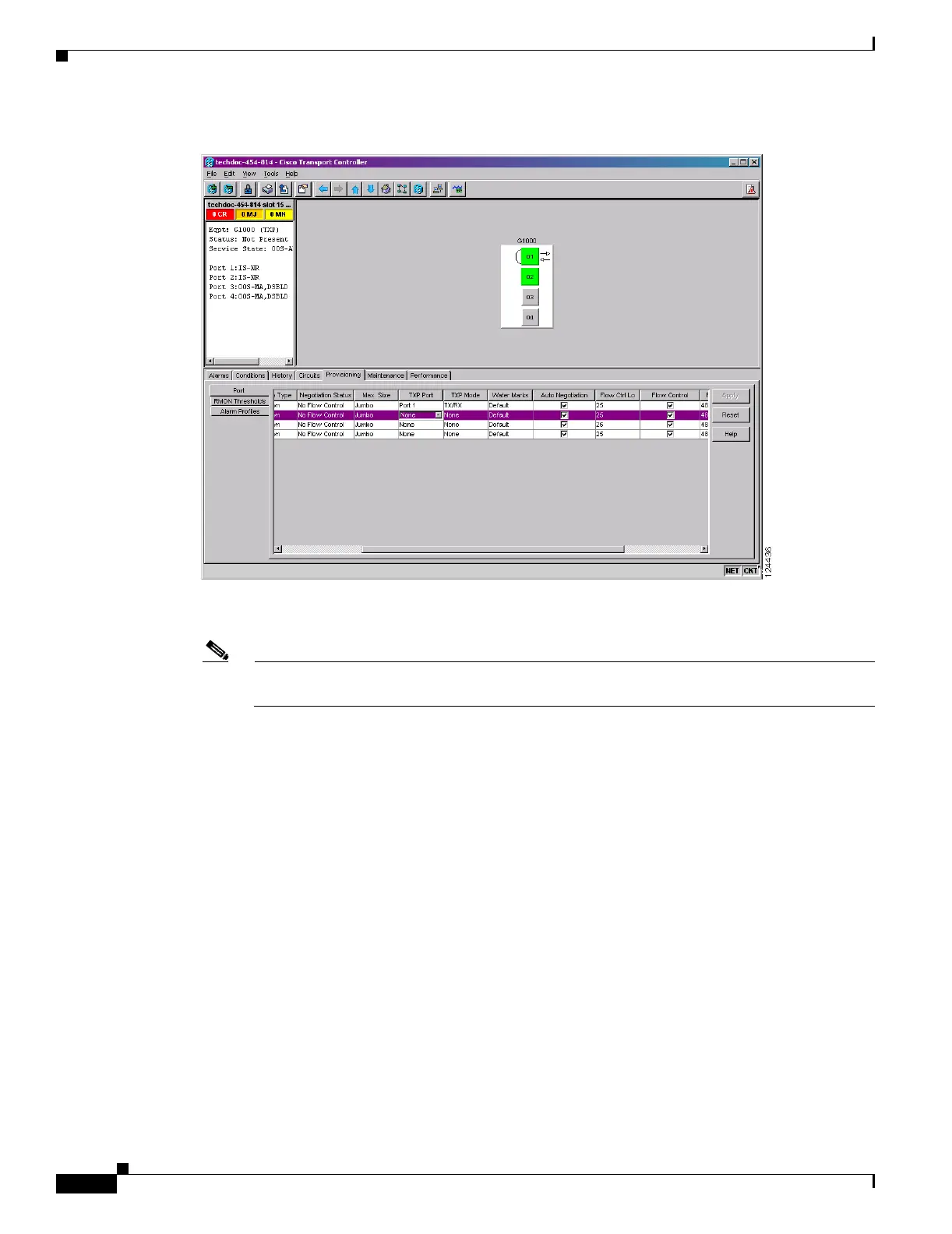

Figure 6-15 One-Port Bidirectional Transponder Mode
Step 6
To provision two-port unidirectional transponder mode (Figure 6-16):
Note In Step 6, “Port A” represents the first port in a pair and “Port B” the second port in the pair. You
can pair any two ports on a G-Series card in two-port unidirectional mode.
a. Click the Port A row (for example, Port 1).
b. Uncheck Auto Negotiation. Ports cannot be provisioned in unidirectional transponder mode when
autonegotiation is enabled.
c. In the TXP Port column, choose Port B (for example, Port 2) from the drop-down list.
d. In the TXP Mode column, choose RX Only from the drop-down list. CTC completes the Port B TXP
Port with Port A and TXP Mode with TX Only.
e. Click the Port B row and uncheck Auto Negotiation.
f. Click Apply.
The ports on the CTC card level view display arrows and a line between the back of the ports.

Cisco ONS 15454 Series Specifications

General

Supported Interfaces	Ethernet
Management	Cisco Transport Controller (CTC), TL1, SNMP
Power Supply	-48 VDC or AC (depending on power supply module)
Operating Temperature	0 to 50°C (32 to 122°F) - varies by module
Storage Temperature	-40°C to 70°C (-40 to 158°F)
Relative Humidity	5 to 95%, noncondensing
Supported Protocols	SONET/SDH, Ethernet, OTN
Platform Type	Multi-service transport platform
