Chapter 22 DLPs A500 to A599
DLP-A507 View OC-N PM Parameters

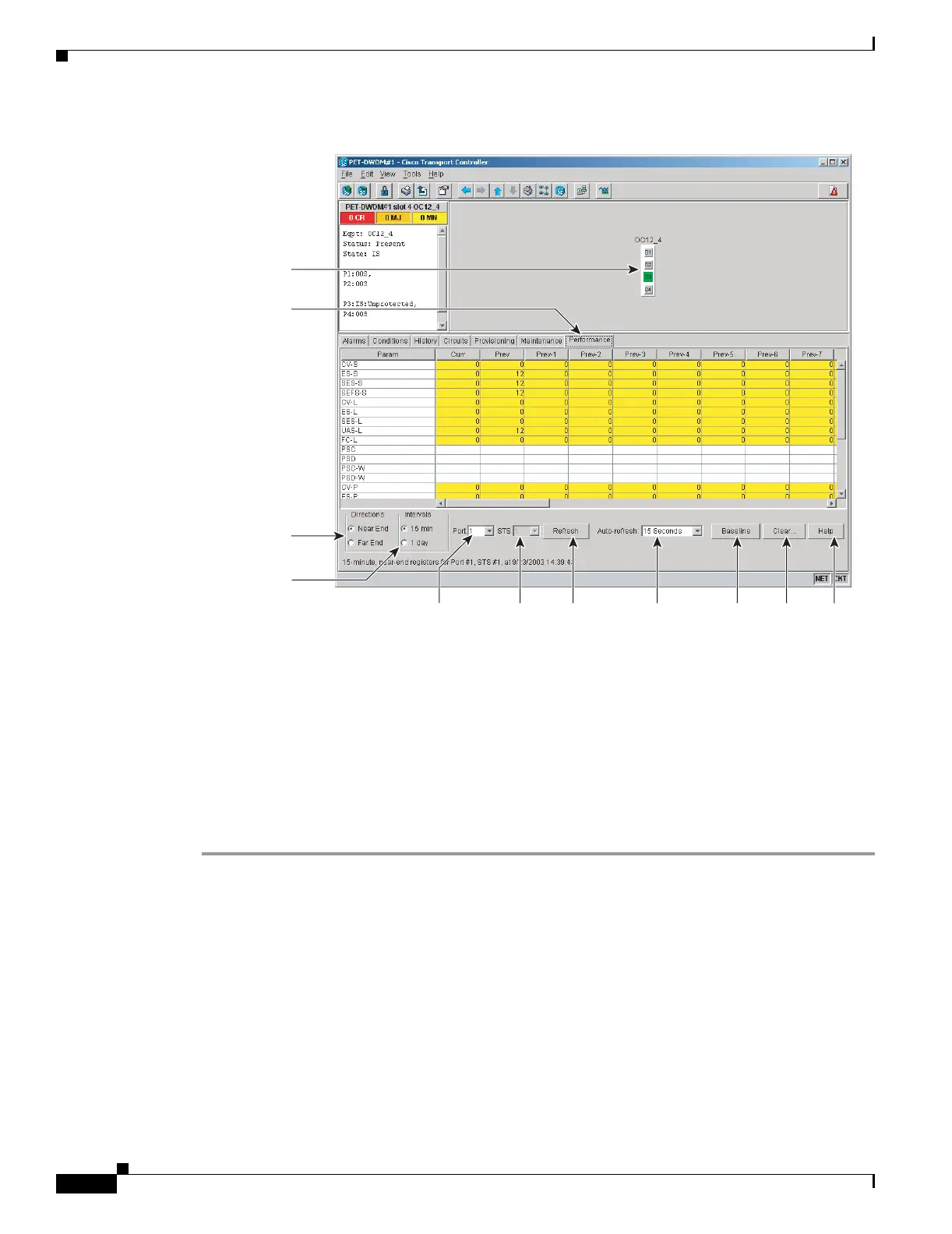

Figure 22-1 Viewing OC-N Card Performance Monitoring Information
Step 3
In the Port drop-down list, click the port you want to monitor.
Step 4 Click Refresh.
Step 5 View the PM parameter names that appear in the Param column. The PM parameter values appear in the
Curr (current), and Prev-n (previous) columns. For PM parameter definitions, refer to the “Performance
Monitoring” chapter in the Cisco ONS 15454 Troubleshooting Guide.
Step 6 To monitor another port on a multiport card, choose another port from the Port drop-down list and click
Refresh.
Step 7 Return to your originating procedure (NTP).
96974
Directions
radio buttons
Performance
tab
Card View
Intervals
radio buttons
Help
button
Clear
button
Baseline
button
Auto-refresh
drop-down list
Sub-signal
STS drop-
down list
Signal-type
port drop-
down list
Refresh
button
