Kollmorgen AKD series User Manual

15.2.2.4 Trigger Value
The trigger value (REC.TRIGVAL) specifies a target value that should trigger the recording to start. The trigger
value is used in trigger type Parameter / On Next Signal only.
Thetriggervalueis not usedinthebooleantriggertype. Usethetrigger slopetoset the polarity of thebooleantrigger.
When the trigger slope is positive, the trigger value will trigger when:
l The trigger source is less than the trigger value in the previous recording sample
l The trigger source is greater than or equal to the trigger value in the current recording sample

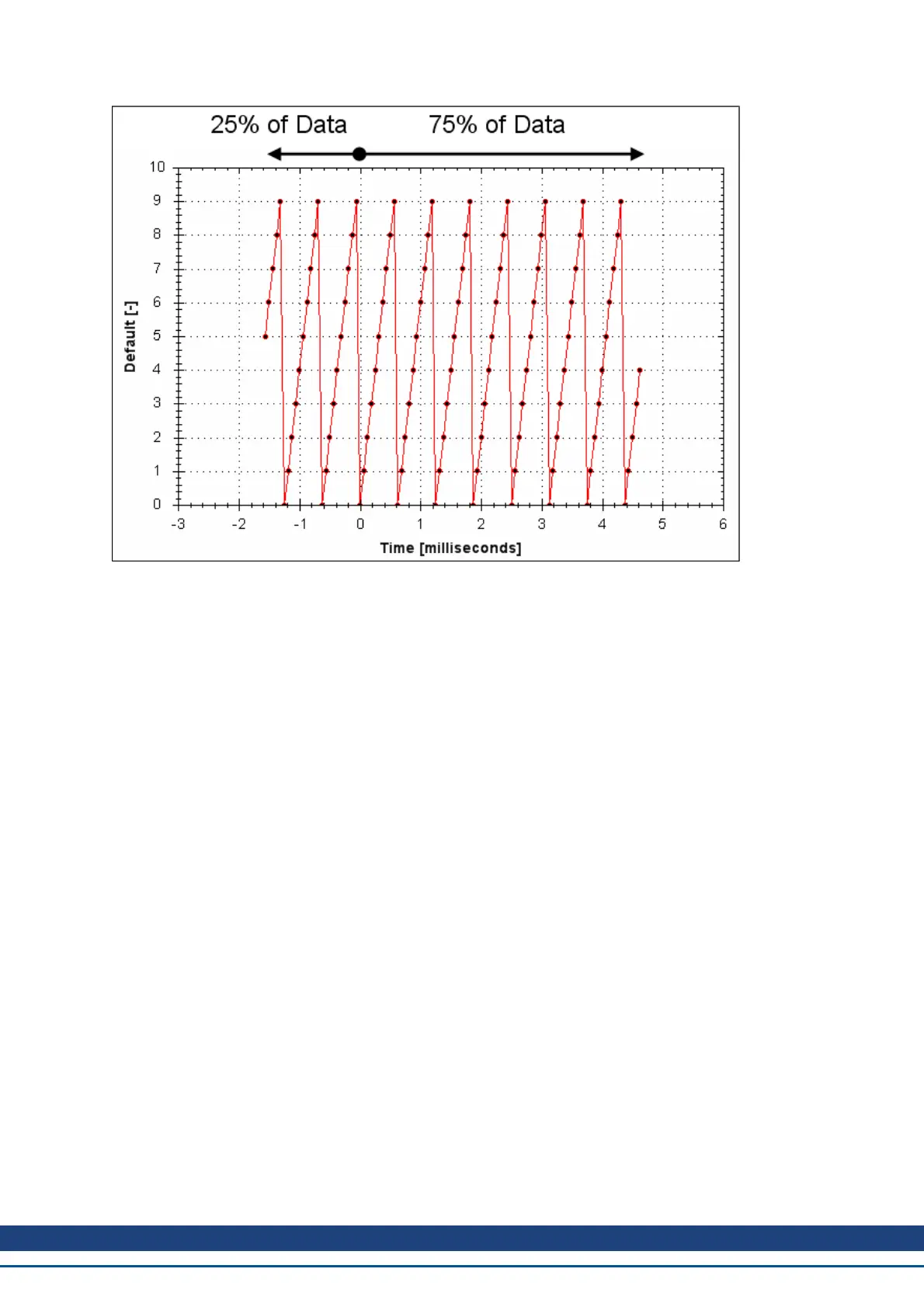

Below is anexampleshowingtriggeringof triggervalueof 3(REC.TRIGVAL3)andpositivetriggerslope
(REC.TRIGSLOPE 1). Youcan seethat therecordingtriggers at timezerowhenthesourcereaches thevalue of 3.
AKD User Guide | 15 Scope
Kollmorgen | December 2010 183

Kollmorgen AKD series Specifications

General

Continuous Current	Up to 180 A
Control Modes	Position, Velocity, Torque
Communication Interfaces	EtherCAT, CANopen, Modbus TCP/IP
Feedback Options	Resolver, Encoder
Safety Features	Safe Torque Off (STO), Safe Stop 1 (SS1)
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overtemperature
Switching Frequency	8 kHz, 16 kHz
Ambient Temperature	0°C to 40°C
Operating Temperature	0 - 40 °C (derating may apply)
Humidity	5% to 95% non-condensing
