Kollmorgen AKD series User Manual

AKD User Guide | Connection Diagrams
19.17 Command encoder signal connection

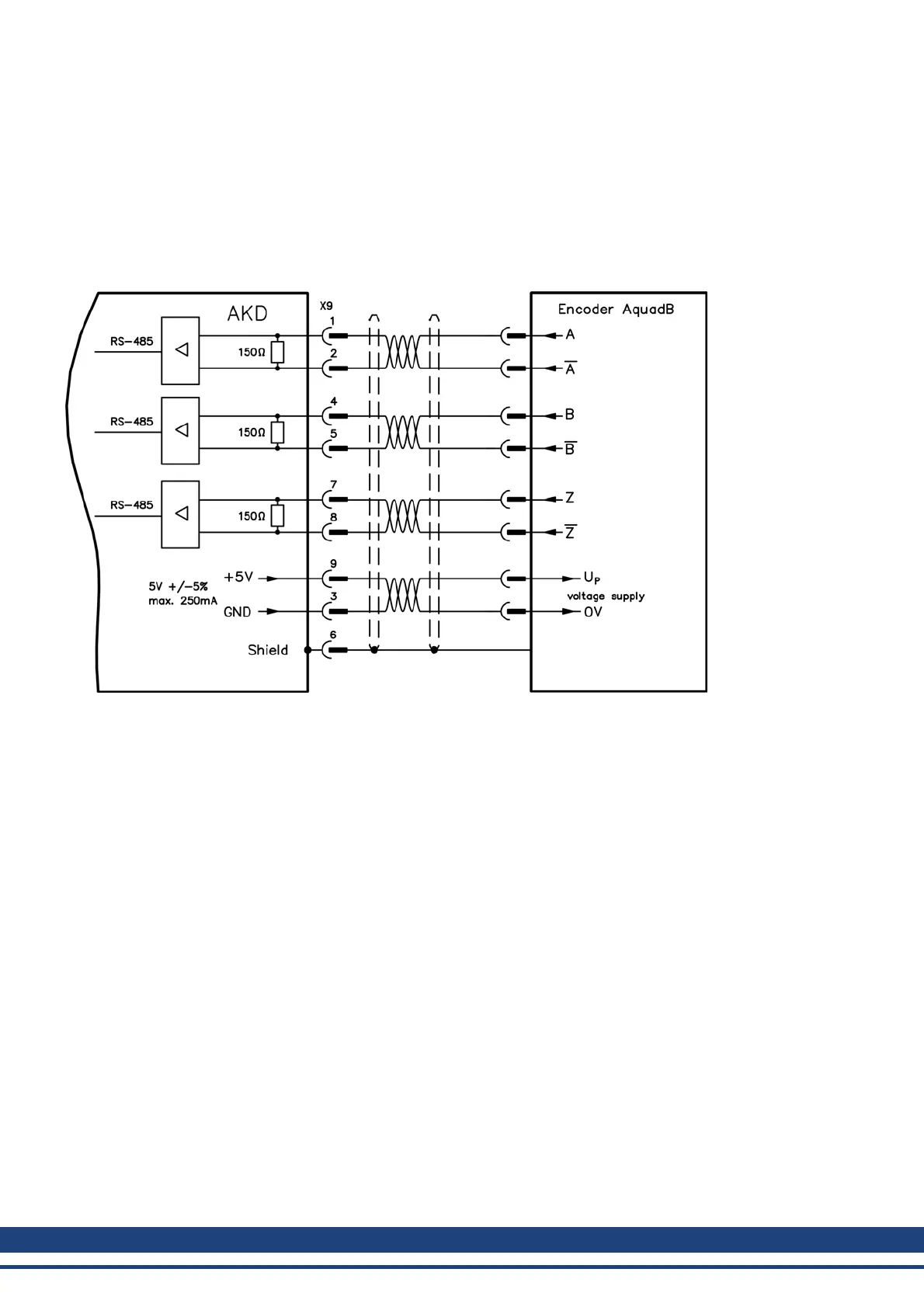

19.17.1 Incremental encoder input 5 V (X9)
A 5 V A quad B encoder, or the encoder emulation output of another drive can be connected to this input and used
as a commander encoder, dual loop feedback, gearing or camming input. Don't use for primary motor feedback
connection!
Connection Diagram
19.17.2 Incremental encoder input 24 V (X7)
A 24 V A quad B encoder can be connected to the digital inputs 1 and 2 and used as a commander encoder, dual
loop feedback, gearing or camming input. Don't use for primary motor feedback connection!
Connection Diagram
242 Kollmorgen | December 2010

Kollmorgen AKD series Specifications

General

Continuous Current	Up to 180 A
Control Modes	Position, Velocity, Torque
Communication Interfaces	EtherCAT, CANopen, Modbus TCP/IP
Feedback Options	Resolver, Encoder
Safety Features	Safe Torque Off (STO), Safe Stop 1 (SS1)
Protection Features	Overvoltage, Undervoltage, Overcurrent, Short Circuit, Overtemperature
Switching Frequency	8 kHz, 16 kHz
Ambient Temperature	0°C to 40°C
Operating Temperature	0 - 40 °C (derating may apply)
Humidity	5% to 95% non-condensing
