19.15 Analog Output (X8)
Terminals X8/7-8 can be used to output converted analog values of digital measurements recorded in the drive. A
list of the pre-programmed functions is included in the WorkBench setup software.
Technical characteristics
l Differential-output voltage max:. ± 10 V
l Resolution: 16 Bit
l Accuracy: < 0.05 V
l Output impedance: < 10 ohms
l Specification complies with IEC 61131-2 Table 11
l Frequency response: 4 kHz
l Maximum output current: > 10 mA
l Maximum capacitive load: 10 nF
l Current protected

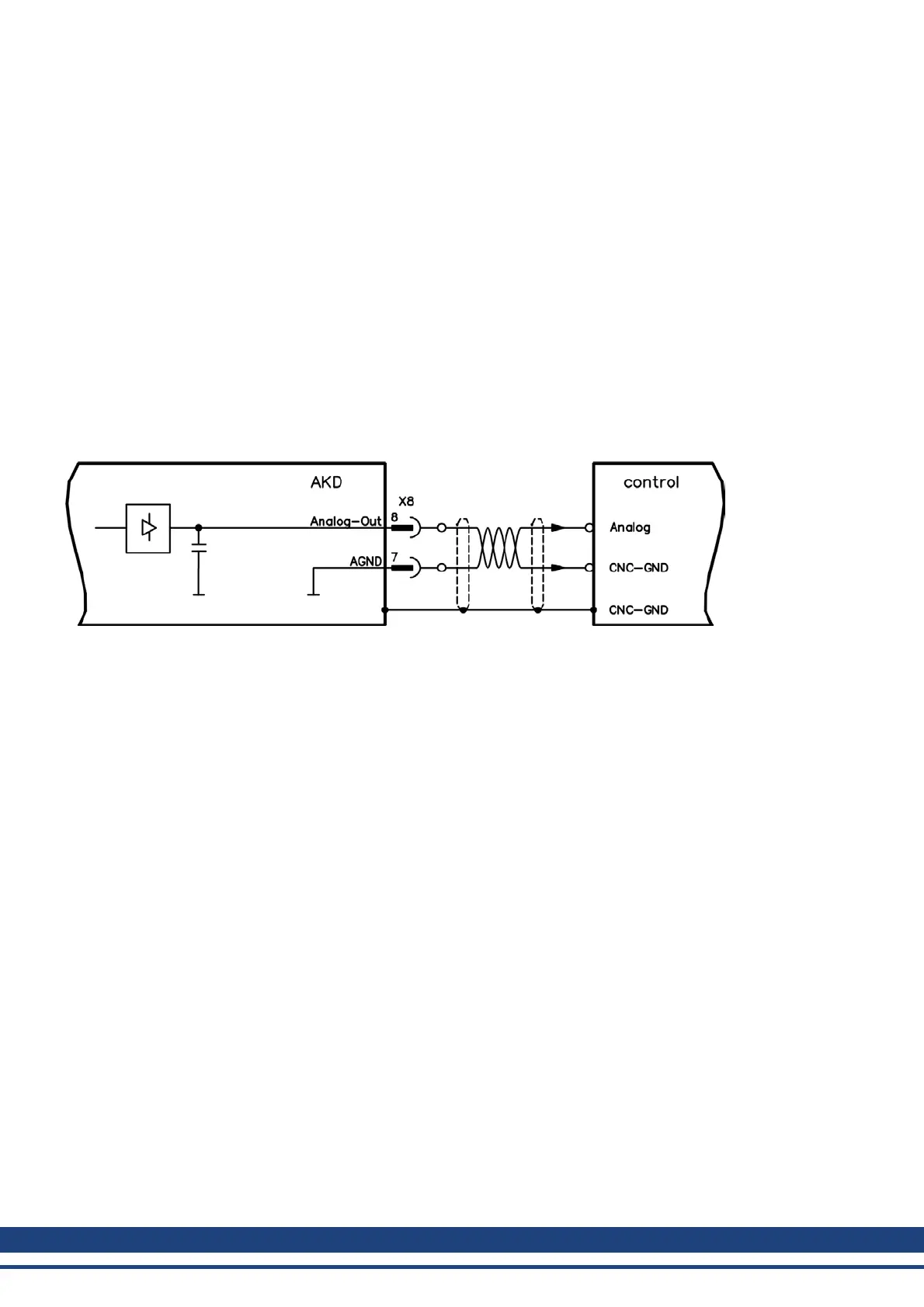

Analog Output Wiring Diagram
