AKD User Guide | Connection Diagrams

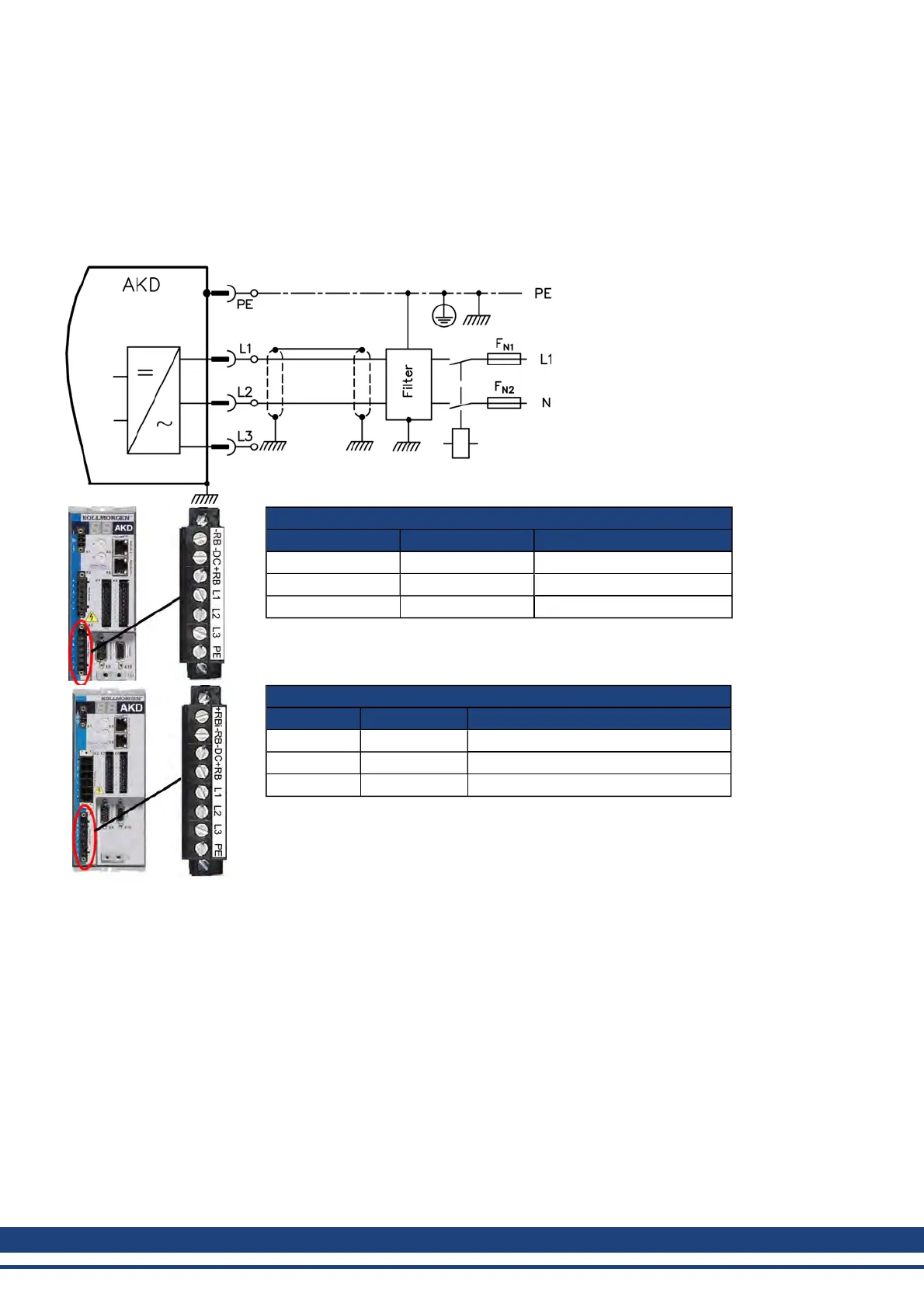

19.13.2 Single phase connection (AKD-xzzz06 only)
l Directly to single-phase supply network (1 x 120 V
-10%
to 1 x 240 V
+10%
)
l Supply networks see page 1
l Leave L3 open circuit
l Filtering to be provided by the user.
l Fusing (such as fusible cut-outs) to be provided by the user see page 1.
AKD-x00306 to AKD-x00606 (X3)
Pin Signal Description
4 L1 Line 1
5 L2 (N) Neutral
7 PE Protective Earth
AKD-x01206 (X3)
Pin Signal Description
5 L1 Line 1
6 L2 (N) Neutral
8 PE Protective Earth
238 Kollmorgen | December 2010
