● TU532-H, I/O terminal unit, hot swap, 230 VAC, spring terminals
● TU532-H-XC, I/O terminal unit, hot swap, 230 VAC, spring terminals, XC version

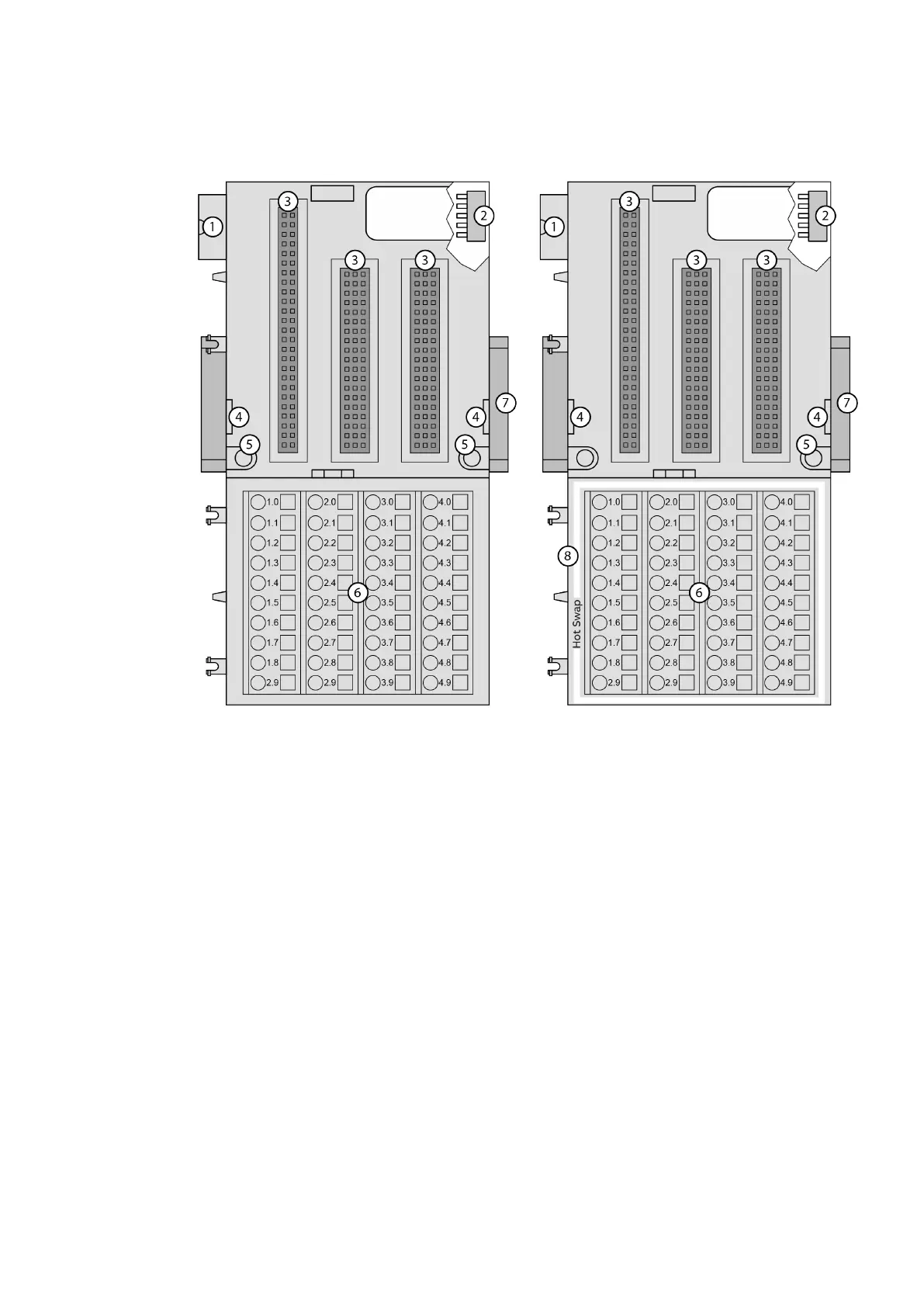

1 I/O bus (10 pins, male) to electrically connect the previous terminal unit, the CPU terminal
base or the FBP terminal unit
2 I/O bus (10 pins, female) to electrically connect other terminal units
3 Plug (1x 50 pins and 2x 57 pins) to electrically connect the inserted I/O modules
4 With a screwdriver inserted in this place, the terminal unit and the adjacent I/O terminal unit
can be shoved from each other
5 2 holes for wall mounting
6 40 terminals for signals and process supply voltage
7 DIN rail
8 White boarder signifies hot swap capability of the terminal unit
The input/output modules (I/O modules) plug into the I/O terminal unit. When properly plugged-
in, they are secured with two mechanical locks. All the electrical connections are established via
the terminal unit, which allows removal and replacement of the I/O modules without disturbing
the wiring at the terminal unit.
The terminal units TU531 and TU532 are specifically designed for use with AC500/S500 I/O
modules that incorporate 115-230 VAC inputs and/or 230 VAC relay outputs.
Terminal Units (AC500 Standard) > TU531 and TU532 for I/O Modules
2019/04/17 3ADR010121, 13, en_US 165
