NOTICE!
Risk of damaging the PLC modules!
Overvoltages and short circuits might damage the PLC modules.
– Make sure that all voltage sources (supply and process voltage) are
switched off before you begin with operations at the system.
– Never connect any voltages or signals to reserved terminals (marked with
---). Reserved terminals may carry internal voltages.

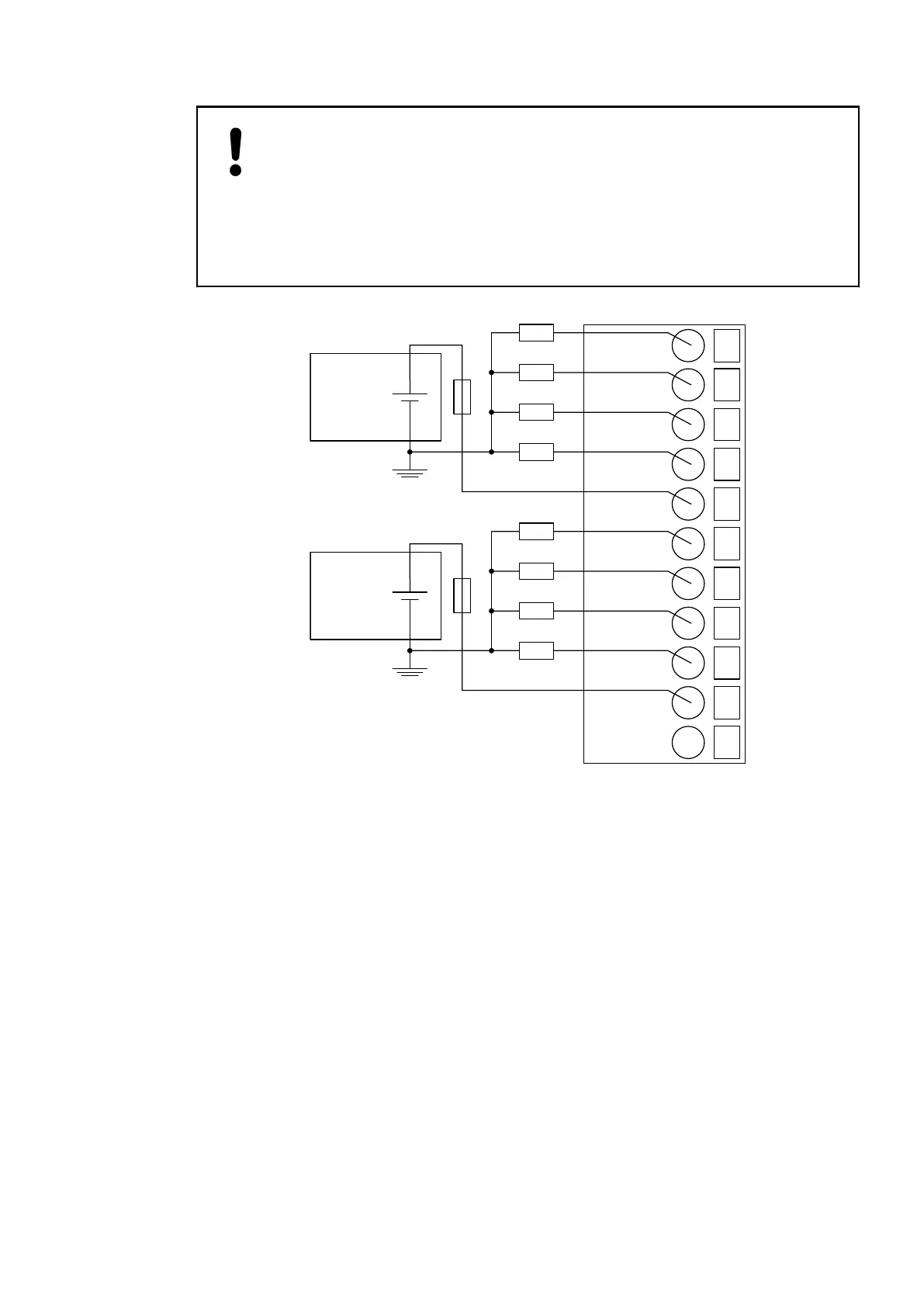

The following figure shows the electrical connection of the module:
10
11
NO0
NO1
13
NO3
12
NO2
14
R0...3
15
NO4
16
NO5
17
NO6
18
NO7
19
R4...7
20
L+
24 V DC
−
+
24 V DC
−
+
Fig. 13: Connection of 24 VDC actuators
I/O Modules > Digital I/O Modules
2019/04/173ADR010121, 13, en_US244
