ABB AC500 PLC - Page 707

Terminal Signal Description
1.6 Term- CAN bus termination for CAN- (for bus termination,
Term- must be connected with CAN-)
1.7 Term- CAN bus termination for CAN- (connecting alterna-
tive for terminal 1.6)
1.8 CAN-GND Ground potential of the CAN bus
1.9 CAN-GND Ground potential of the CAN bus
At the line ends of a bus segment, termination resistors must be connected. If TU517 or TU518
is used, the bus termination resistors can be enabled by connecting the terminals Term+ and
Term- to the data lines CAN+ and CAN- (no external termination resistors are required, see
illustration below).

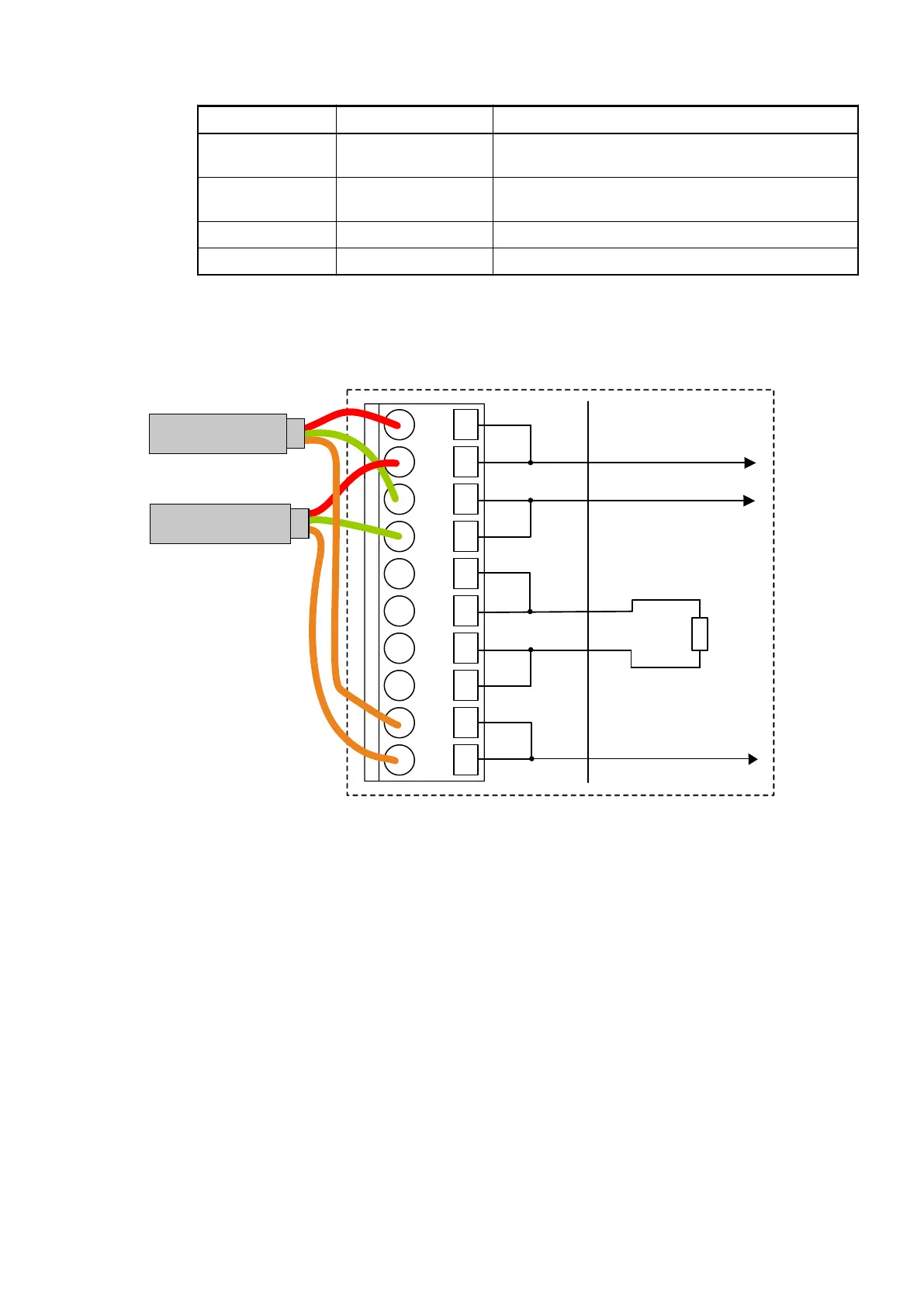

The following figures show the different connection options for the CANopen bus module:
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
CANopen in
CANopen out
Device Specifications
Communication Interface Modules (S500) > CANopen
2019/04/17 3ADR010121, 13, en_US 707
