Cisco ONS 15454 Procedure Guide, R5.0
May 2006
Chapter 2 Install Cards and Fiber-Optic Cable
NTP-A20 Replace the Front Door

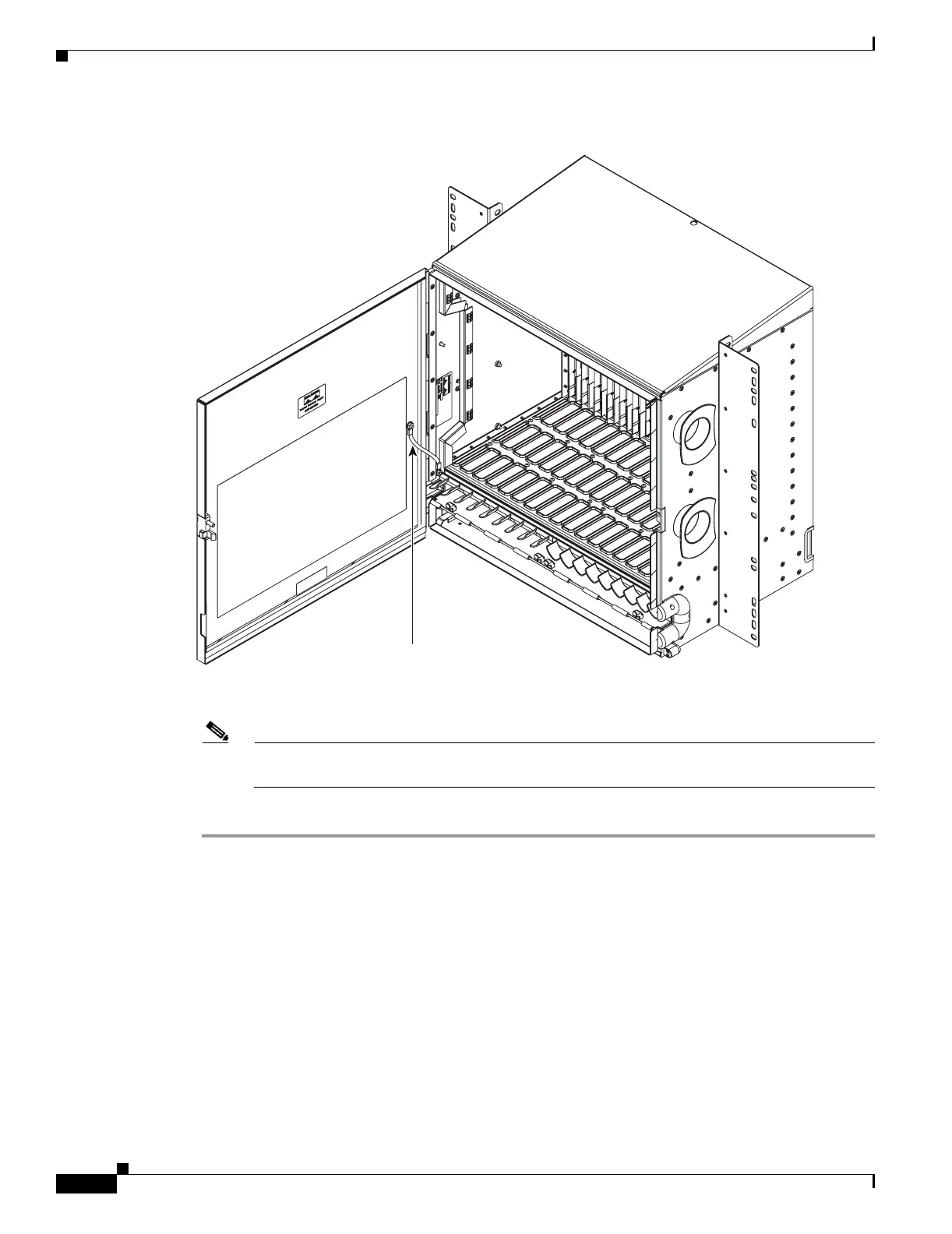

Figure 2-2 Shelf Assembly with Door Ground Strap Retrofit Kit Installed
Step 6
Swing the door closed.
Note The ONS 15454 comes with a pinned hex key tool for locking and unlocking the front door. Turn
the key counterclockwise to unlock the door and clockwise to lock it.
Stop. You have completed this procedure.
71046
Ground strap cable
