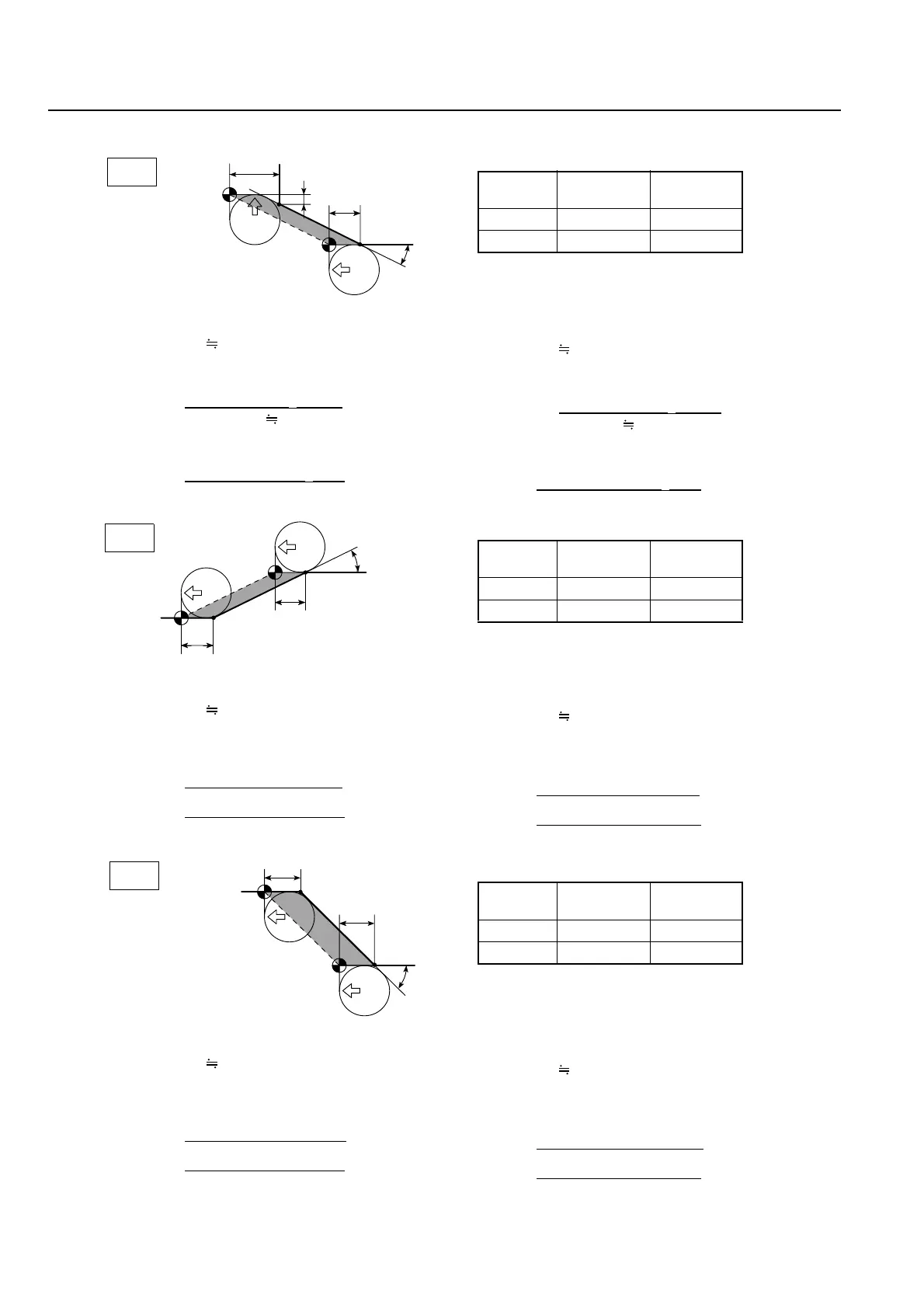

2-308 MACHINE OPERATIONS OPERACIONES DE MECANIZADO
θ = 30° Rn = 0.8
θ = 30° Rn = 0,8
Zc and Xc are found in the offset data table:
Zc = 0.5856 0.586
Point c: Z'c = 2 × Rn − Zc = 2 × 0.8 − 0.586
= 1.014
Z= −10.0 − 1.014 = −11.014
Point c (X50.0, Z−11.014)
Point d: Xc = 0.3381 0.338
X = 61.54 + (2 × 0.338) = 62.216
Z= −20.0 − (2 × Rn) = −20.0 − 1.6
= −21.6
Point d (X62.216, Z−21.6)
Zc y Xc se encuentran en la tabla de datos de
corrección:
Zc = 0,5856 0,586
Punto c: Z'c = 2 × Rn − Zc = 2 × 0,8 − 0,586
= 1,014
Z = −10,0 − 1,014 = −11,014
Punto c (X50.0, Z
−11.014)
Punto d: Xc = 0,3381 0,338
X = 61,54 + (2 × 0,338) = 62,216
Z = −20,0 − (2 × Rn) = −20,0 − 1,6
= −21,6
Punto d (X62.216, Z−21.6)
θ = 35° Rn = 0.8
θ = 35° Rn = 0,8
Zc is found in the offset data table:
Zc = 0.5478 0.548
Point c: Z'c = 2 × Rn − Zc
= 2 × 0.8 − 0.548
= 1.052
Z= −10.0 − 1.052 = −11.052
Point c (X50.0, Z−11.052)
Point d: Z = −17.14 − 1.052 = −18.192
Point d (X40.0, Z−18.192)
Zc se encuentra en la tabla de datos de
corrección:
Zc = 0,5478 0,548
Punto c: Z'c = 2 × Rn − Zc
= 2 × 0,8 − 0,548
= 1,052
Z = −10,0 − 1,052 = −11,052
Punto c (X50.0, Z
−11.052)
Punto d: Z = −17,14 − 1,052 = −18,192
Punto d (X40.0, Z−18.192)
θ = 45° Rn = 0.8
θ = 45° Rn = 0,8
Zc is found in the offset data table:
Zc = 0.4686 0.469
Point c: Z'c = 2 × Rn − Zc
= 2 × 0.8 − 0.469
= 1.131
Z= −10.0 − 1.131 = −11.131
Point c (X50.0, Z
−11.131)
Point d: Z = −15.0 − 1.131 = −16.131
Point d (X60.0, Z−16.131)
Zc se encuentra en la tabla de datos de
corrección:
Zc = 0,4686 0,469
Punto c: Z'c = 2 × Rn − Zc
= 2 × 0,8 − 0,469
= 1,131
Z = −10,0 − 1,131 = −11,131
Punto c (X50.0, Z−11.131)
Punto d: Z = −15,0 − 1,131 = −16,131
Punto d (X60.0, Z−16.131)
Z'c
Xc
30°
a
c
d
2Rn
b
5-B
Point
Punto
XZ
a
50.0 −10.0
b
61.54 −20.0
Z'c
Z'c
d
b
c
a
35°
6-A
Point
Punto
XZ
a
50.0 −10.0
b
40.0 −17.14
Z'c
Z'
c
45°
d
b
c
a
6-B
Point
Punto
XZ
a
50.0 −10.0
b
60.0 −15.0
