2-575MACHINE OPERATIONS OPERACIONES DE MECANIZADO

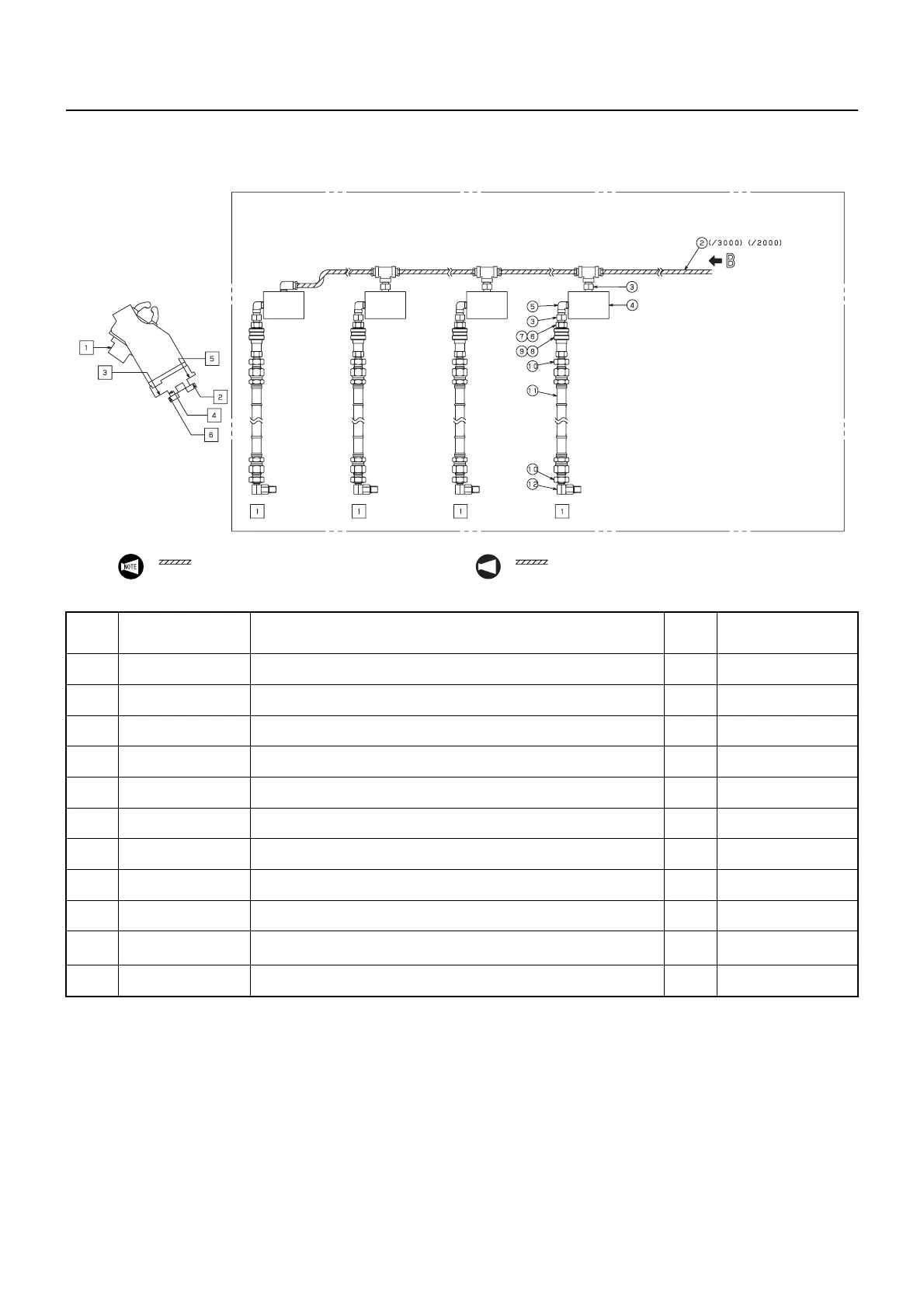

28-11-8-1 Automatic Centering Type Steady Rest (Bolt-Tightening-Type)
Luneta de centrado automático (modelo de fijación de la pieza mediante pernos)
(Q44172 A03 2/2)
Automatic Centering Steady Rest (Bolting Type)
Luneta de centrado automático (modelo dotado de cierre mediante pernos)
indicates a nylon tube
NOT A
indica un tubo de nilón
No.
N°
Drawing No.
N° de ilustración
Title
Encabezado
Q'ty
Ctd.
Maker
Fabricante
2 P34929A HOSE SET 1 *
3 P32319A NIPPLE SNP01-000J 6 *
4 B13282B BLOCK JOINT 4 *
5 P32267A ELBOW SLC01-000J 4 *
6 P31535A COUPLER 32EA02C 4 *
7 P31536A CAP 34EA02 4 *
8 P31533A COUPLER 31EA02C 4 *
9 P31534A CAP 33EA02 4 *
10 P31073A HOSE JOINT 1009-0204 8 *
11 P20680A
HIGH PRESSURE
HYDRAULIC HOSE
NWP70 6 L = 1600 W/B 4 *
12 P31598A UNIVERSAL JOINT SJ0101 4 SHOWA YUKI
