2-581MACHINE OPERATIONS OPERACIONES DE MECANIZADO

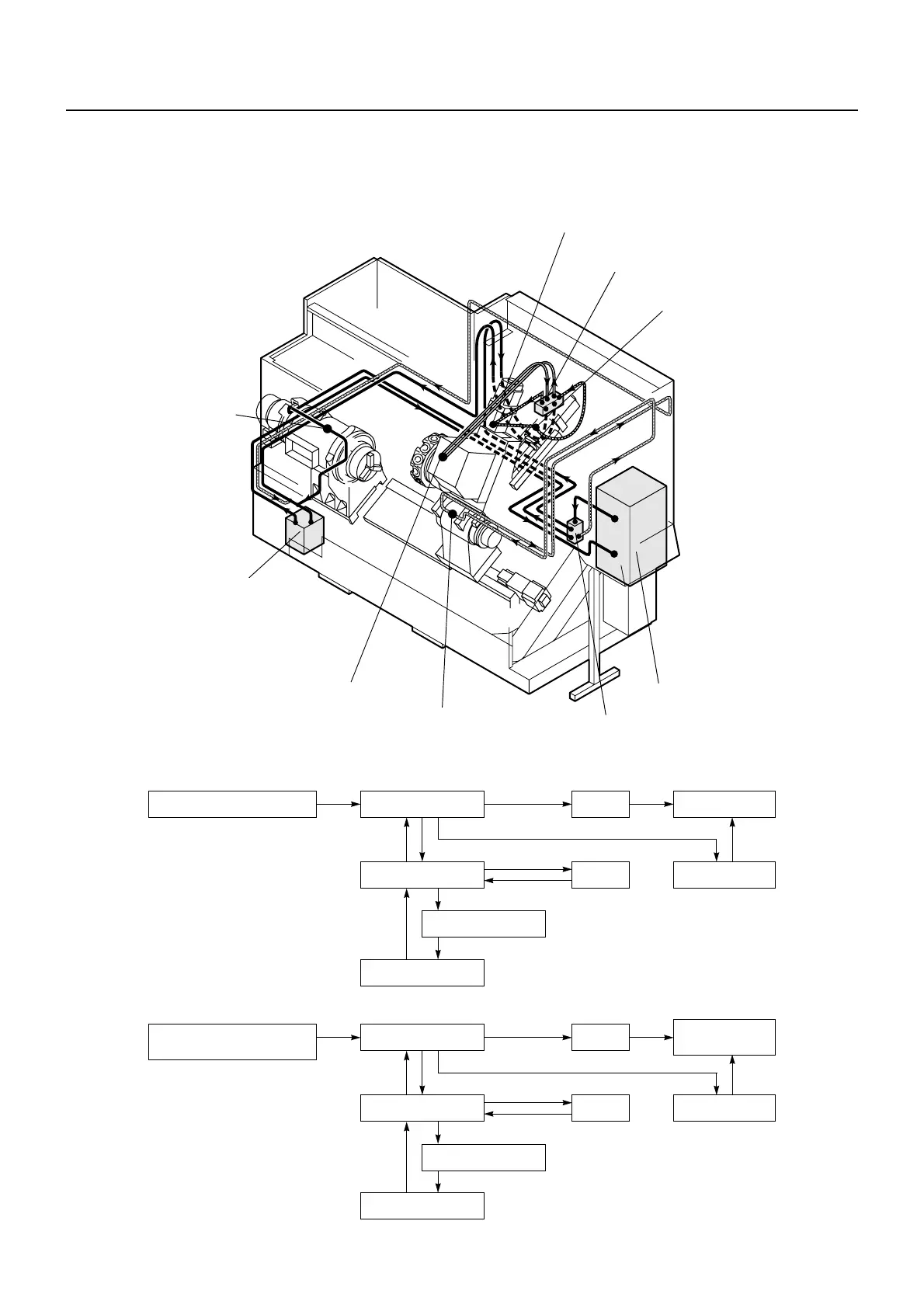

28-12-4 Flow of Cooling Oil and Positions where Used (NL2500/1250, NL3000/1250)
Flujo del aceite refrigerante y puntos de aplicación (NL2500/1250, NL3000/1250)
Manifold
Colector
Y-Axis Servomotor Base
Base del servomotor del eje Y
Reservoir Tank
Depósito de reserva
Spindle 1
Husillo 1
Turret
Torreta
X-Axis Servomotor Base
Base del servomotor del eje X
Manifold
Colector
Oil Temperature Controller
Controlador de temperatura del aceite
Spindle 2
Husillo 2
Oil Temperature Controller
Manifold
Spindle
Reservoir Tank
Manifold
Y-Axis Servomotor
X-Axis Servomotor
Turret Headstock 2
Controlador de temperatura
del aceite
Colector
Husillo
Depósito de
reserva
Colector
Servomotor del eje Y
Servomotor del eje X
Torreta Cabezal 2
