2-402 MACHINE OPERATIONS OPERACIONES DE MECANIZADO

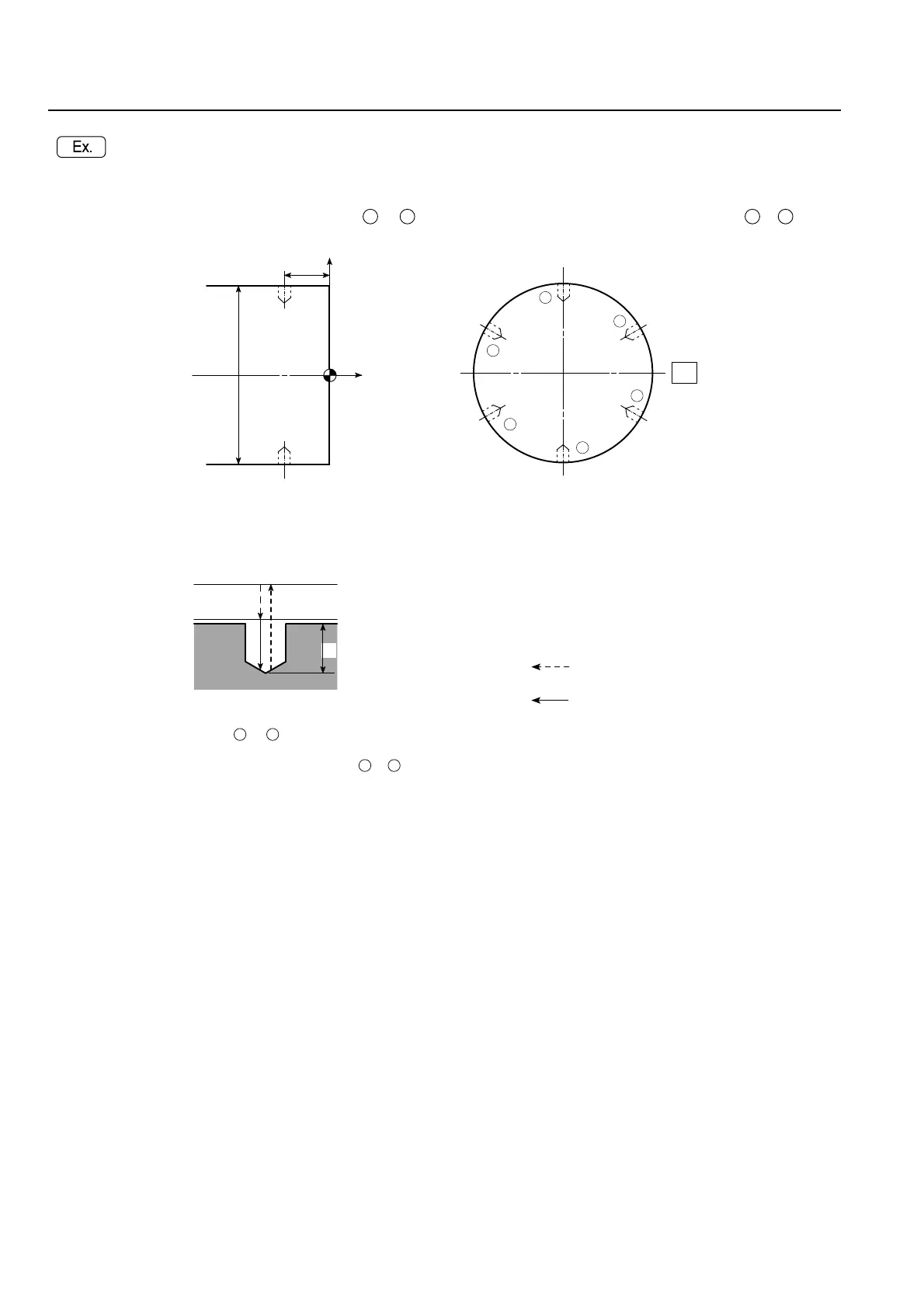

Programming using side face spot drilling cycle
(dwell)
To carry out spot drilling cycle (dwell) at to .
Programación mediante el ciclo de punteado de cara lateral
(pausa)
Para realizar un ciclo de punteado (pausa) en a .
1 6 1 6
5
C0
210°
150°
30°
90°
270°
3
2
1
4
5
6
330°
100
30
+X
+Z
φ
X160.0 (Initial Point)
X160.0 (Punto inicial)
X106.0 (Point R)
X106.0 (Punto R)
Dwell at hole bottom for 0.1 sec Movement by
G87 at to
Pausa en el fondo del orificio durante 0,1 seg.
Movimiento mediante G87 en a
1 6
1 6
X100.0
X90.0
Rapid Traverse
Avance rápido
Cutting Feed
Avance de corte
