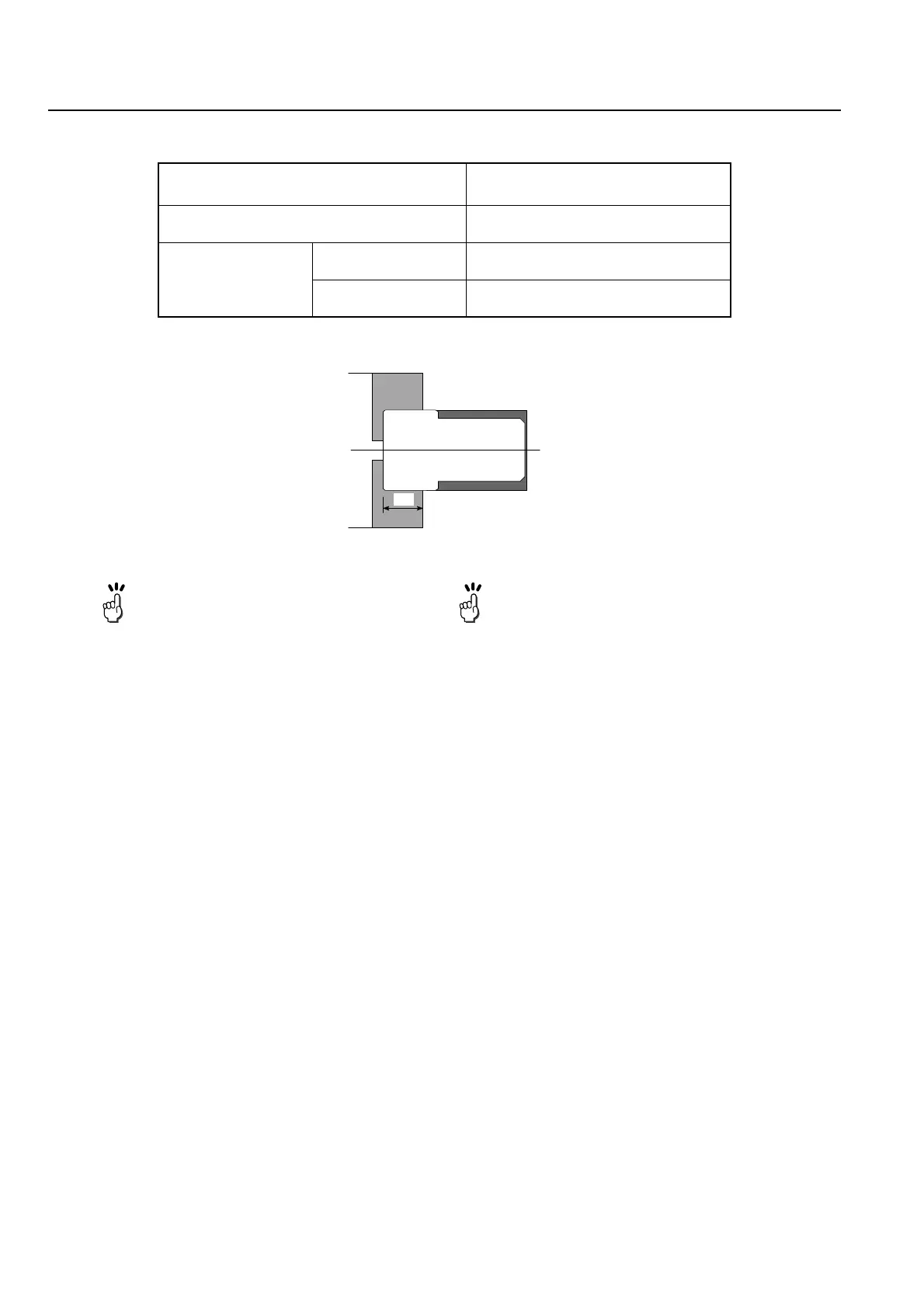

2-452 MACHINE OPERATIONS OPERACIONES DE MECANIZADO
<Dimensions of Blank Workpiece> <Dimensiones de la pieza bruta>
<Chucking Diagram> <Diagrama de agarre>
Blank Workpiece
Pieza bruta
Data
Datos
Material
Material
AISI 1045 (Carbon steel)
AISI 1045 (Acero carbónico)
Dimensions(mm)
Dimensiones(mm)
O.D.
D.E.
φ50
Length
Longitud
101
30
The chucking depth is 30 mm. La profundidad de agarre será de 30 mm.
O1;
G28 V0;
N1; . . . . . . . . . . . . . . . . . . Face and O.D. rough cutting Corte en desbaste de cara y de D.E.
G99 M46;
G50 S2000;
G00 T0101;
G96 S120 M03;
X55.0 Z10.0 M08;
G01 Z0.1 F1.0;
X10.0 F0.2;
X−1.6 F0.1;
G00 X45.0 W1.0;
G01 Z−59.9 F0.25;
G00 U2.0 Z1.0;
X40.3;
Z−3.468;
G00 U2.0 Z1.0;
X31.364;
G01 X40.3 Z−3.468;
Z−59.9;
X47.832;
U4.0 W−2.0;
G00 Z10.0;
G53 X0 Z0 M05;
M01;
