Inter-Tel AXXESS - Figure 3-5 EKSC Executone Phone Module Jack Assembly Wiring (U.S. Only)

Page 3-21
Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
EKSC Executone Phone Module Jack Assembly Wiring (U.S. Only)
INSTALLATION
3

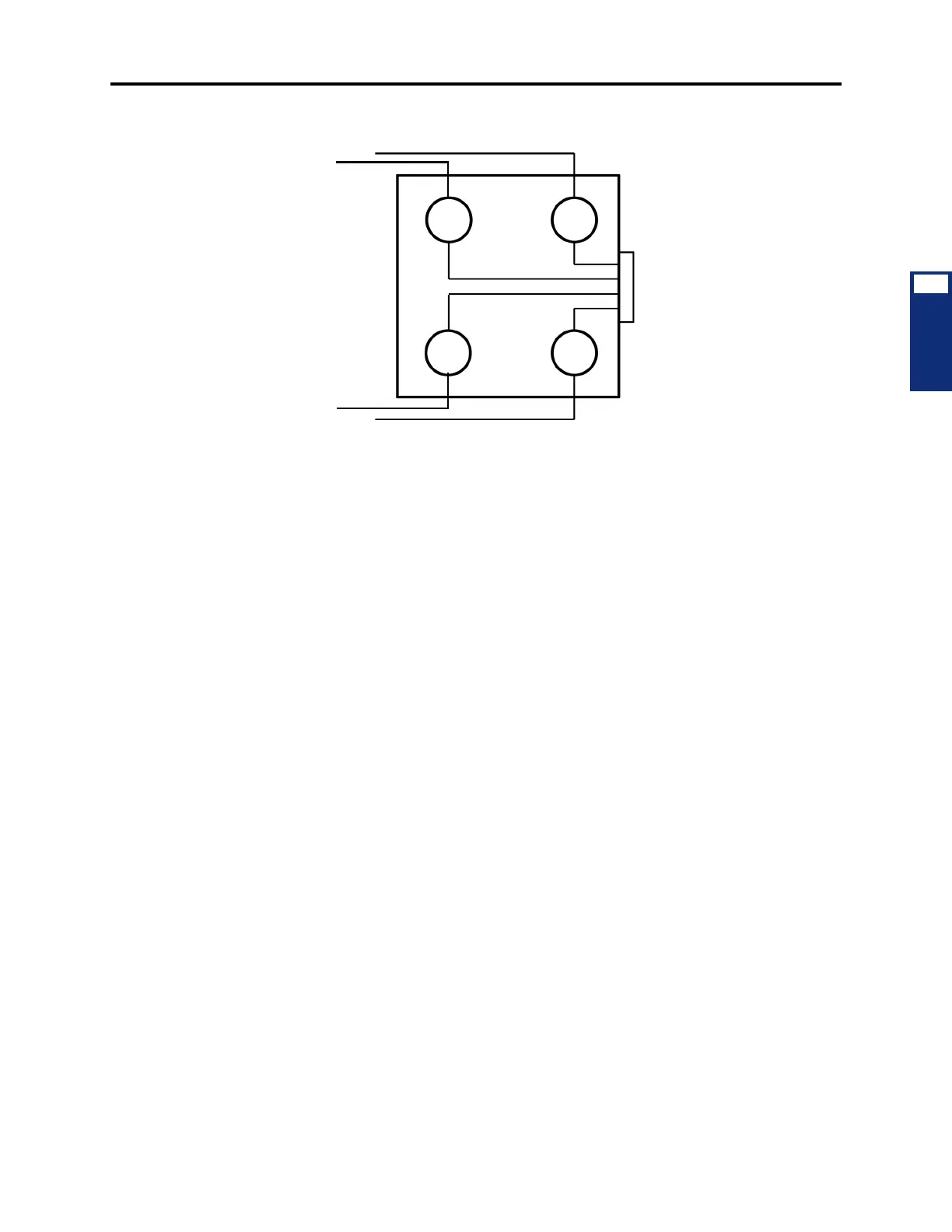

Figure 3-5. EKSC Executone Phone Module Jack Assembly Wiring (U.S. Only)
RR O/W
TT W/BL
TR BL/W
RT W/O
G
R
Y
BK
