Inter-Tel AXXESS - Figure 3-47 Call Processing Card (CPC)

Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Page
3-94
Call Processing Card (CPC)

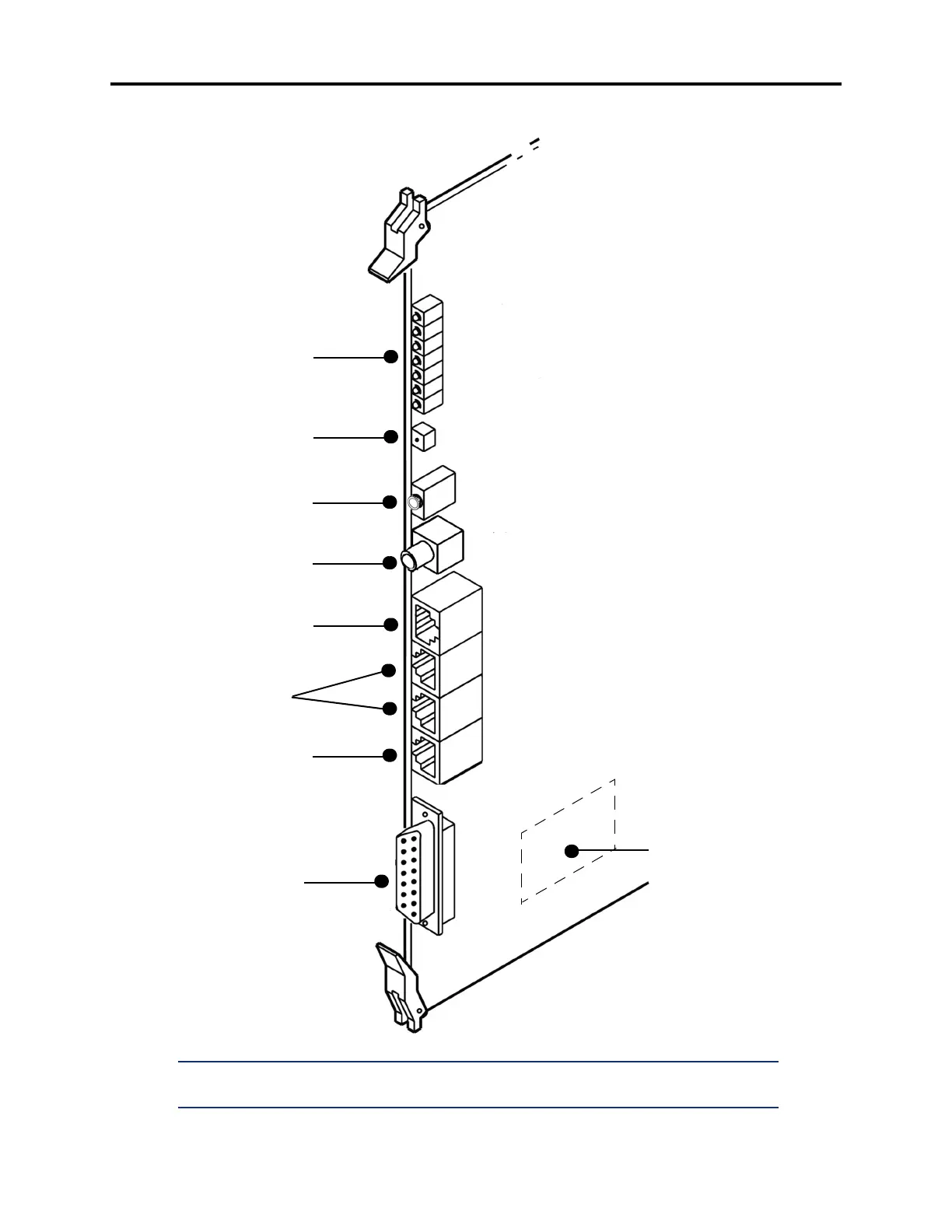

Figure 3-47. Call Processing Card (CPC)
LED
INDICATORS
* BUTTON
MUSIC
CONNECTOR
EXTERNAL
PAGING PORT
10/100BASE-T
ETHERNET PORT
RS-232
CONNECTORS
CONNECTOR
RELAY
DB15 PCM
CONNECTOR
TO VOICE PROCESSING PC,
AUDIO INTERFACE CARD (AIC),
OR EVMC DB15 PCM CONNECTOR
RECHARGEABLE
BATTERY AREA
CPU Active
DB Error
MNR
MDM
100
DBX
Battery
NOTE: For purposes of detail, this drawing does not show the EMI shield attached to the front
end of the card.
