Inter-Tel AXXESS - Figure 2-1 Quad-Chassis Configuration; Figure 2-2 Sample ATM-Based System Configuration

Page 2-13
Specifications
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Quad-Chassis Configuration
SPECIFICATIONS
2

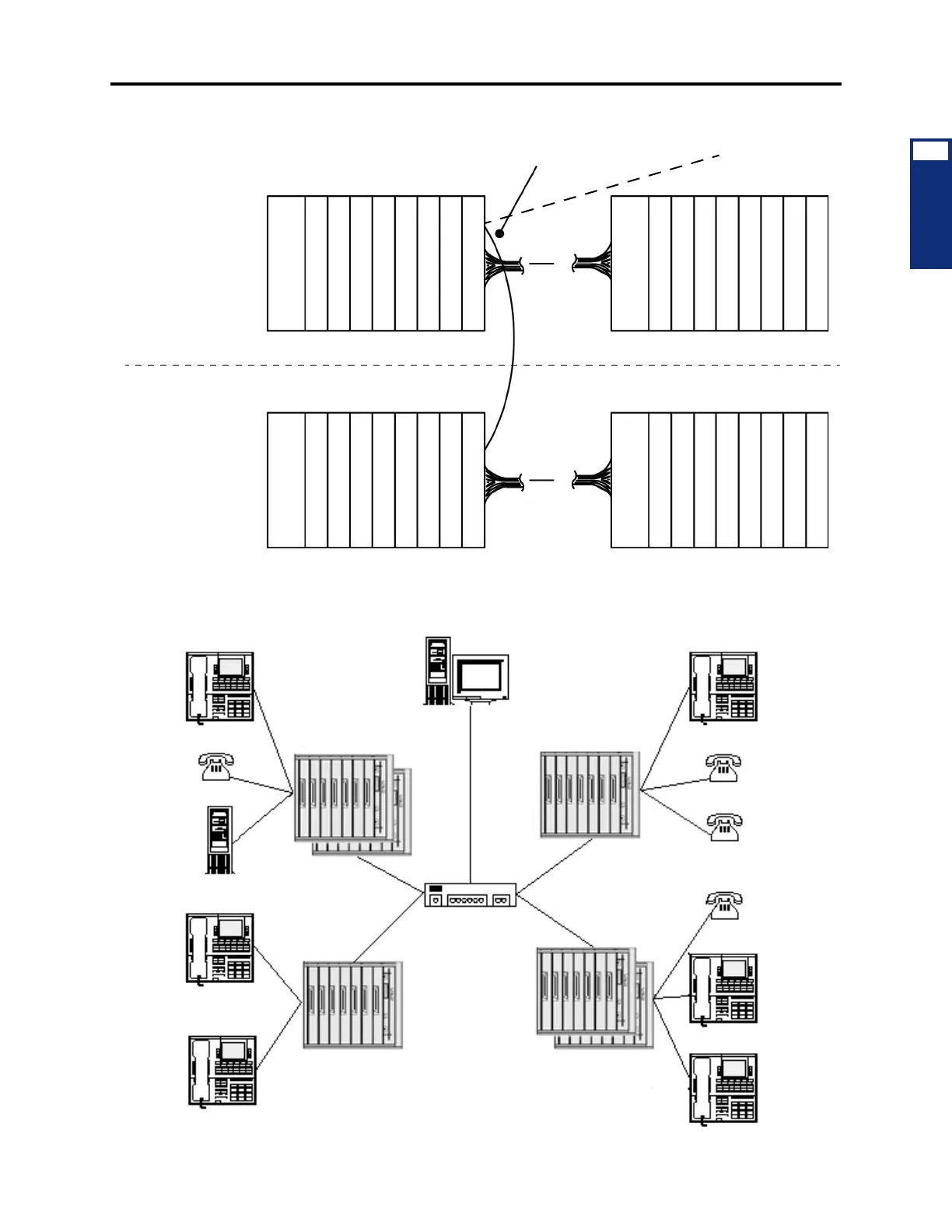

Figure 2-1. Quad-Chassis Configuration
Figure 2-2. Sample ATM-Based System Configuration
MASTER
DUAL-CHASSIS
SLAVE
DUAL-CHASSIS
3RD CHASSIS (SLAVE CPU) 4TH CHASSIS
POWER SUPPLY
POWER SUPPLY
POWER SUPPLY
POWER SUPPLY
NOT USEDNOT USED
CPU020-X/PCM-F
CPU020/PCM-F/EAC
FIBER-OPTIC CABLE
1ST CHASSIS (MASTER CPU)
2ND CHASSIS
1 2 3 4 5 6 7 8 910111213141516
25 26 27 28 29 30 31 32
17 18 19 20 21 22 23 24
TO CP SERVER
Call Processing Server
ATM Switch
v6.0 or Later
Chassis (Dual)
Chassis (Dual)
v6.0 or Later
v6.0 or Later
Chassis (Single)
v6.0 or Later
Chassis (Single)
Voice Mail
