Inter-Tel AXXESS - Figure 3-96 Sample PC Motherboard Card Slot Arrangement; Figure

Page 3-217
Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Sample PC Motherboard Card Slot Arrangement
INSTALLATION
3

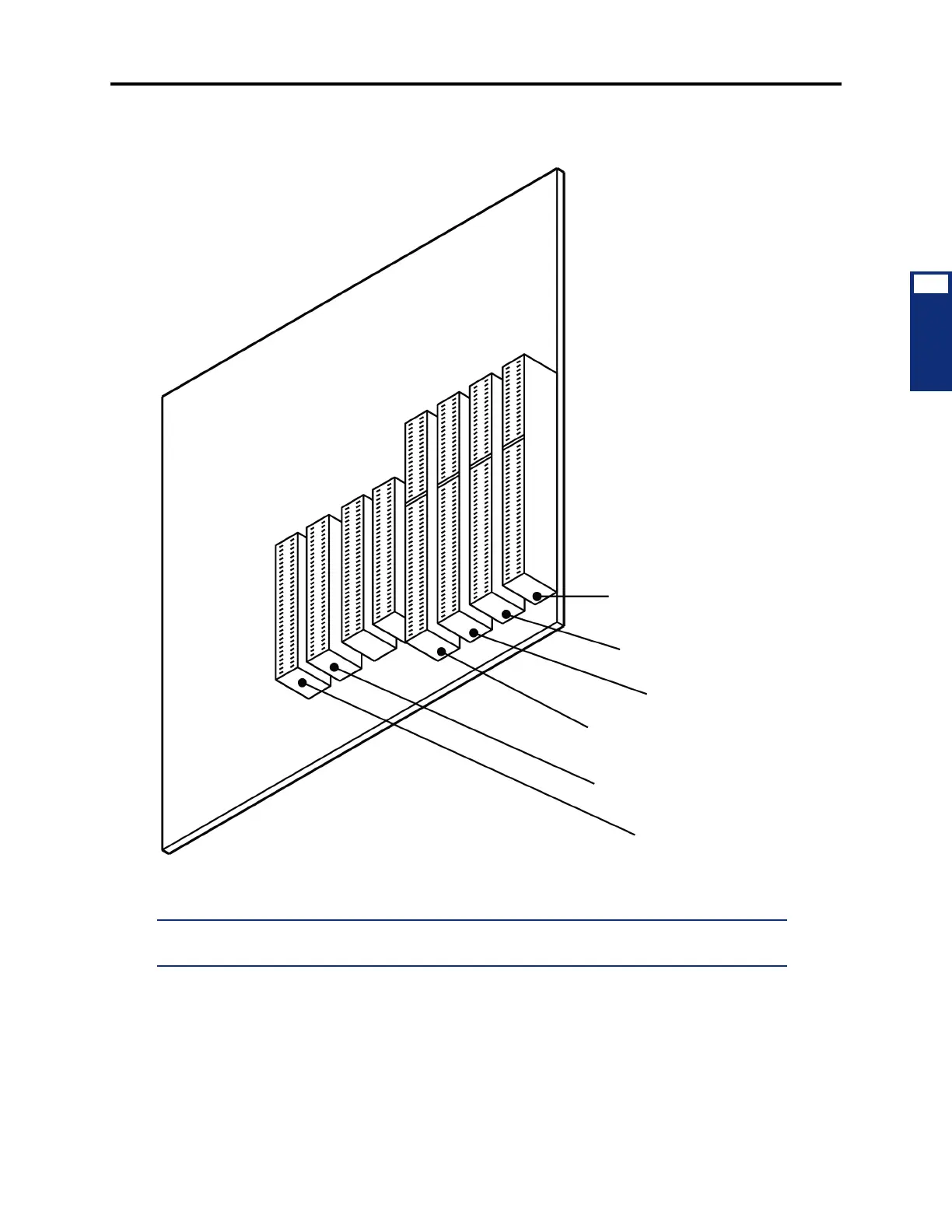

Figure 3-96. Sample PC Motherboard Card Slot Arrangement
NOTE: Depending on the specific model of PC Motherboard being used, the sample card slot
arrangement shown above could vary somewhat.
AUDIO INTERFACE
CARD (AIC)
OPTIONAL FAX
2ND VPC
CARD OR 3RD VPC
1ST VOICE PROCESSING
CARD (VPC)
NETWORK INTERFACE
CARD (NIC)
VIDEO CARD
