Inter-Tel AXXESS - Figure 3-88 Sample Professional;Associate Phone PCDPM Cable Connections

Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Page
3-198
Sample Professional/Associate Phone PCDPM Cable Connections

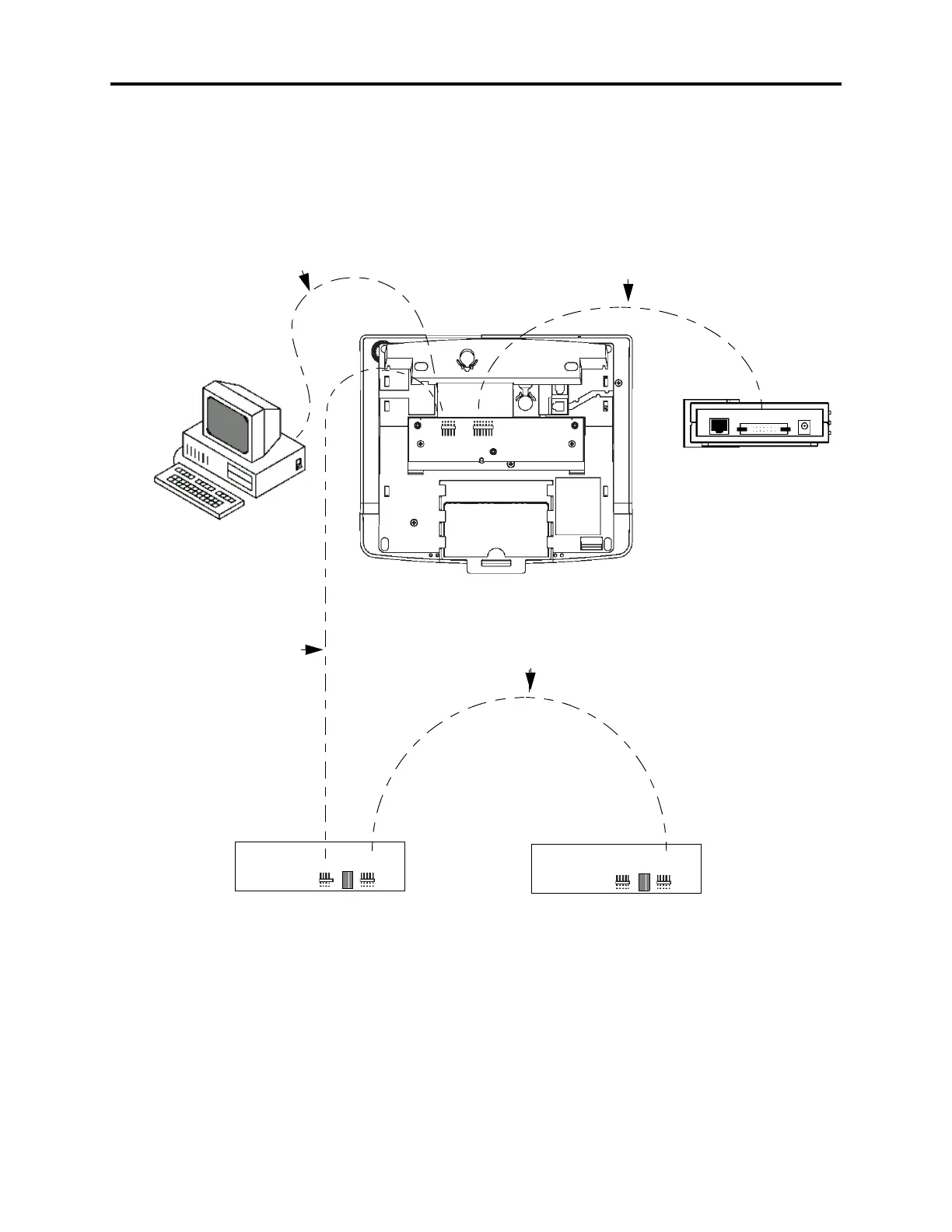

Figure 3-88. Sample Professional/Associate Phone PCDPM Cable Connections
PCDPM-to-RS232
INTERFACE CABLE
(813.1631)
PCDPM-to-MDPM
INTERFACE CABLE
(813.1566)
PCDPM-to-DSS
INTERFACE CABLE
(813.1519*)
DSS-to-DSS
INTERFACE CABLE
(813.1519)
BACK OF DISPLAY PHONE WITH PCDPM
J2
J1
J1
J2
P1
(BACK OF THE UNIT)
PC OR
OUTPUT DEVICE
MODEM DATA
PORT MODULE
*same as DSS-to-DSS Cable
(DAISY CHAIN CABLE)
J2J1
P4
J2J1
P4
BACK OF 1ST 12-ROW DSS/BLF UNIT
CONNECTOR BOARD
BACK OF 2ND 12-ROW DSS/BLF UNIT
CONNECTOR BOARD
