Connecting Two E1 Cards Together
INSTALLATION
3

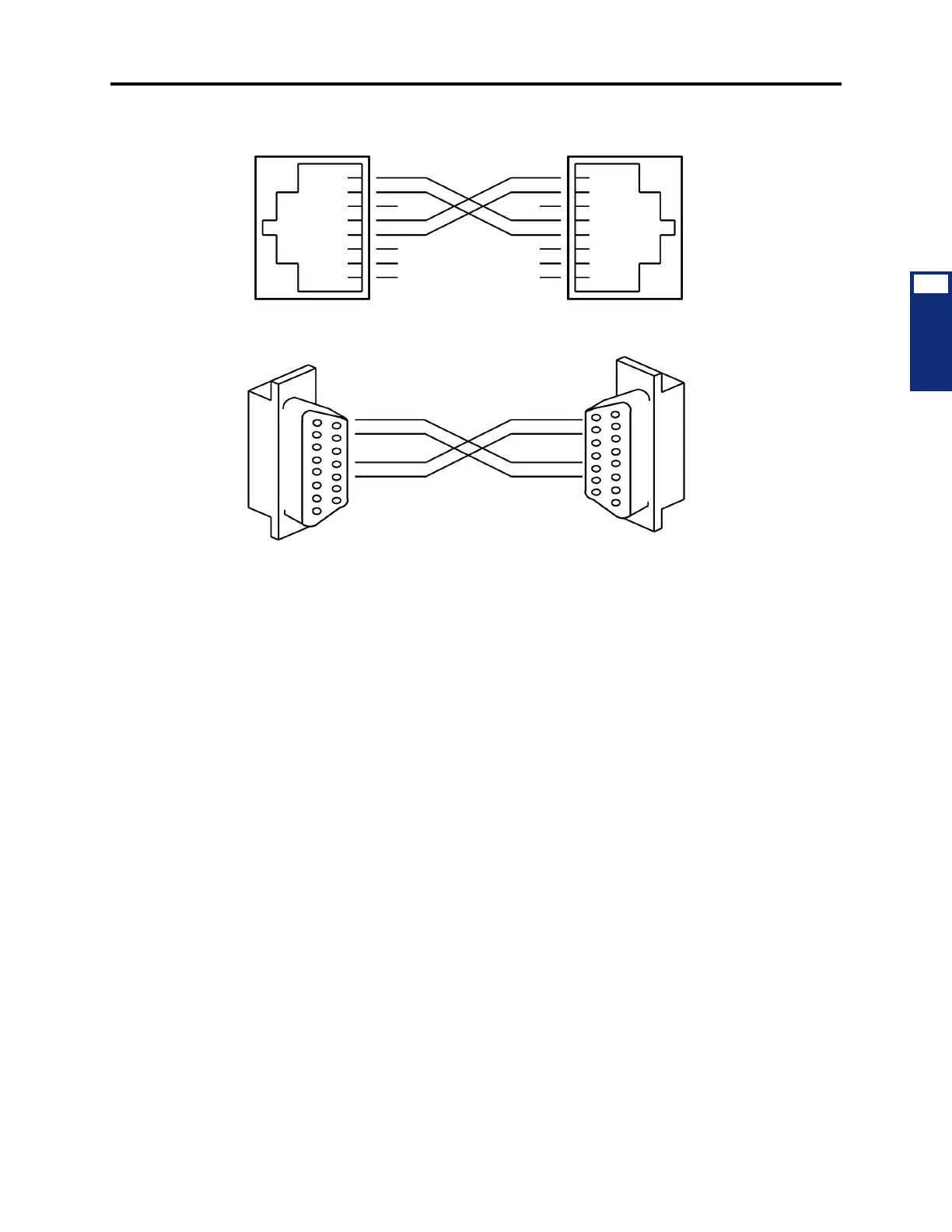

Figure 3-35. Connecting Two E1 Cards Together
E1/PRI CARD
RJ45 JACK
E1/PRI CARD
RJ45 JACK
E1/PRI CARD
DB 15
CONNECTOR
E1/PRI CARD
DB 15
CONNECTOR
1
2
3
4
5
6
7
8
R1
T1
R
T
OR
1 Tip (Out)
9 Ring (Out)
3 Tip 1 (In)
11 Ring 1 (In)
Tip (Out) 1
Ring (Out) 9
Tip 1 (In) 3
Ring 1 (In) 11
1
2
3
4
5
6
7
8
R1
T1
R
T
