Original Equipment Chassis Backplane

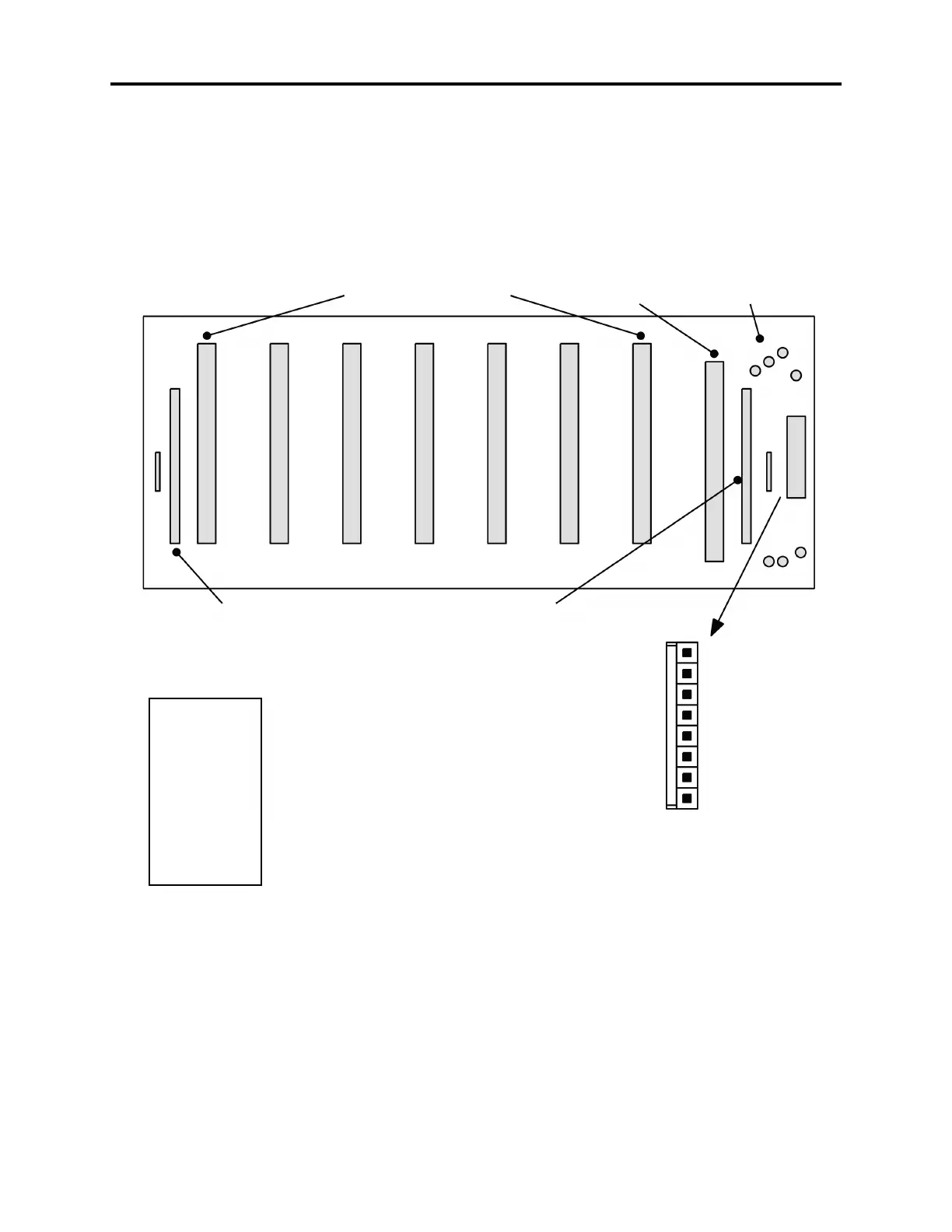

Figure 3-39. Original Equipment Chassis Backplane
STATION AND TRUNK
CARD CONNECTORS
CPU CARD
CONNECTOR
VOLTAGE
TEST POINTS
EXPANDED CHASSIS
CONNECTOR
EXPANDED CHASSIS
CONNECTOR
TP2
TP3
TP4
J10
TP1
J11
RN5
TP7
TP5
TP6
KGND
KGND
24V
24V
SL
+5V
-5v
ADGND
TEST POINT KEY
TP1 = KGND
TP2 = +24KTS1
TP3 = +24KTS2
TP4 = SLPWR
TP5 = +5V
TP6 = =5V
TP7 = ADGND
(also used for the T1 Network
Clock Card, if needed)
J9
RN2
