Inter-Tel AXXESS - Figure 3-53 PCMA-FS Card and Attached CPU020-A Card

Installation
INTER-TEL
®
AXXESS
®
MANUAL VERSION 11.0 – May 2008
Page
3-108
PCMA-FS Card and Attached CPU020-A Card

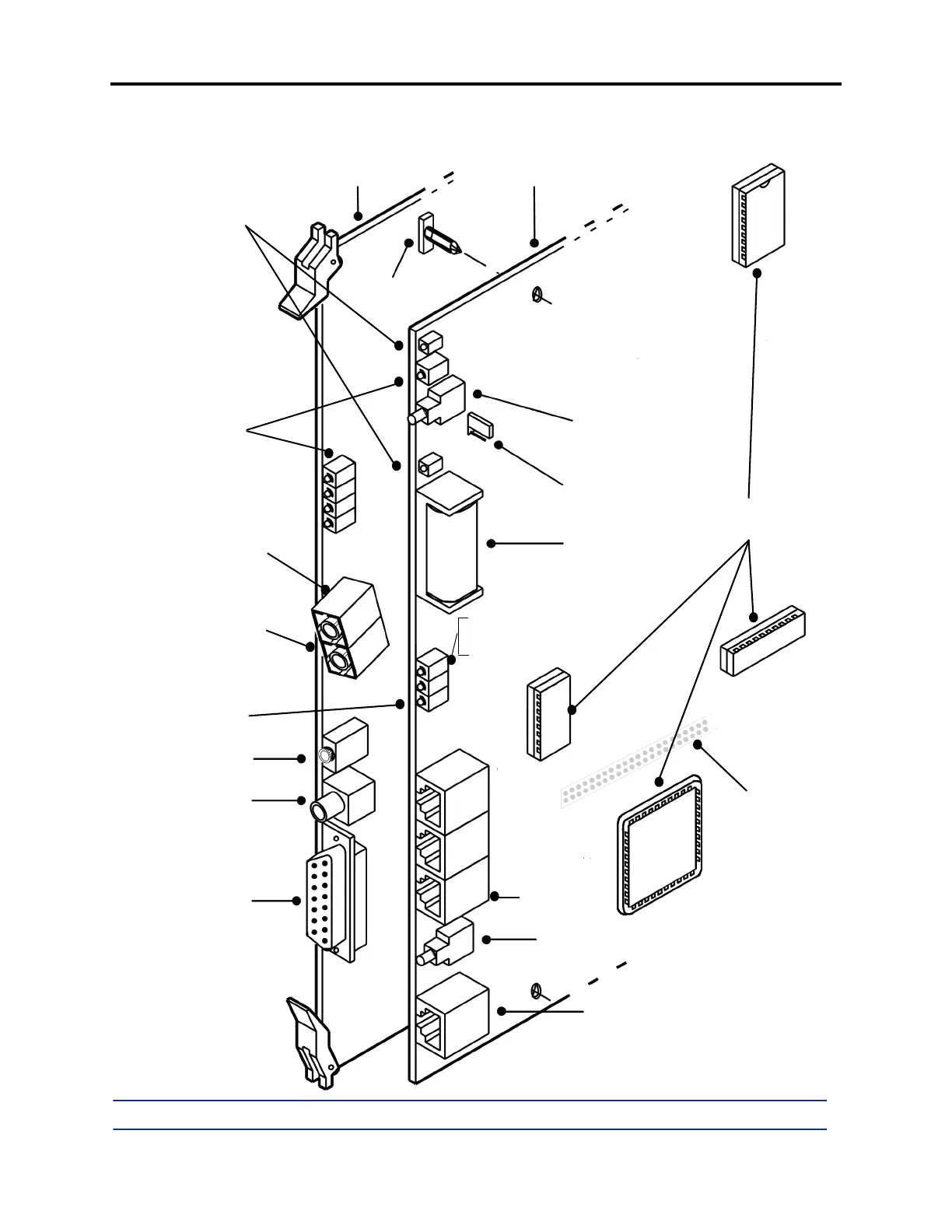

Figure 3-53. PCMA-FS Card and Attached CPU020-A Card
BATTERY
TEST POINTS
LED
INDICATORS
FIBER RECEIVE
JACK
FIBER TRANSMIT
JACK
LED
INDICATORS
MUSIC JACK
EXTERNAL
PAGING PORT
DB15 PCM
CONNECTOR
PCMA-F CARD
CPU020-A CARD
BATTERY
CHECK SWITCH
BATTERY BACK-UP
(BBU) STRAP
LITHIUM BATTERY
RS232
CONNECTORS
RESET
SWITCH
RELAY JACK
MASTER (GREEN)
SLAVE (GREEN)
EXT. CLOCK (GREEN)
TO FIBER TRANSMIT JACK ON
TO FIBER RECEIVE JACK ON
CPU ACTIVE (GREEN)
DATABASE ERROR (RED)
MINOR ALARM (YELLOW)
PORT 2
PORT 3
PORT 1
TO VOICE PROCESSING UNIT
AUDIO INTERFACE CARD (AIC)
“A” SOFTWARE
COMPONENTS
U13
U42
J6
CONNECTORS
TO PCMA-F CARD
(REVERSE SIDE)
U41
U25
SERIAL
SERIAL
SERIAL
ATM LINK BAD (RED)
TP1 (VBAT+)
TP2 (VBAT-)
BATTERY OFF (RED)
ON
OFF
STANDOFF
ATM SWITCH
ATM SWITCH
NOTE: For purposes of detail, this drawing does not show the EMI shield attached to the front edge of the card.
